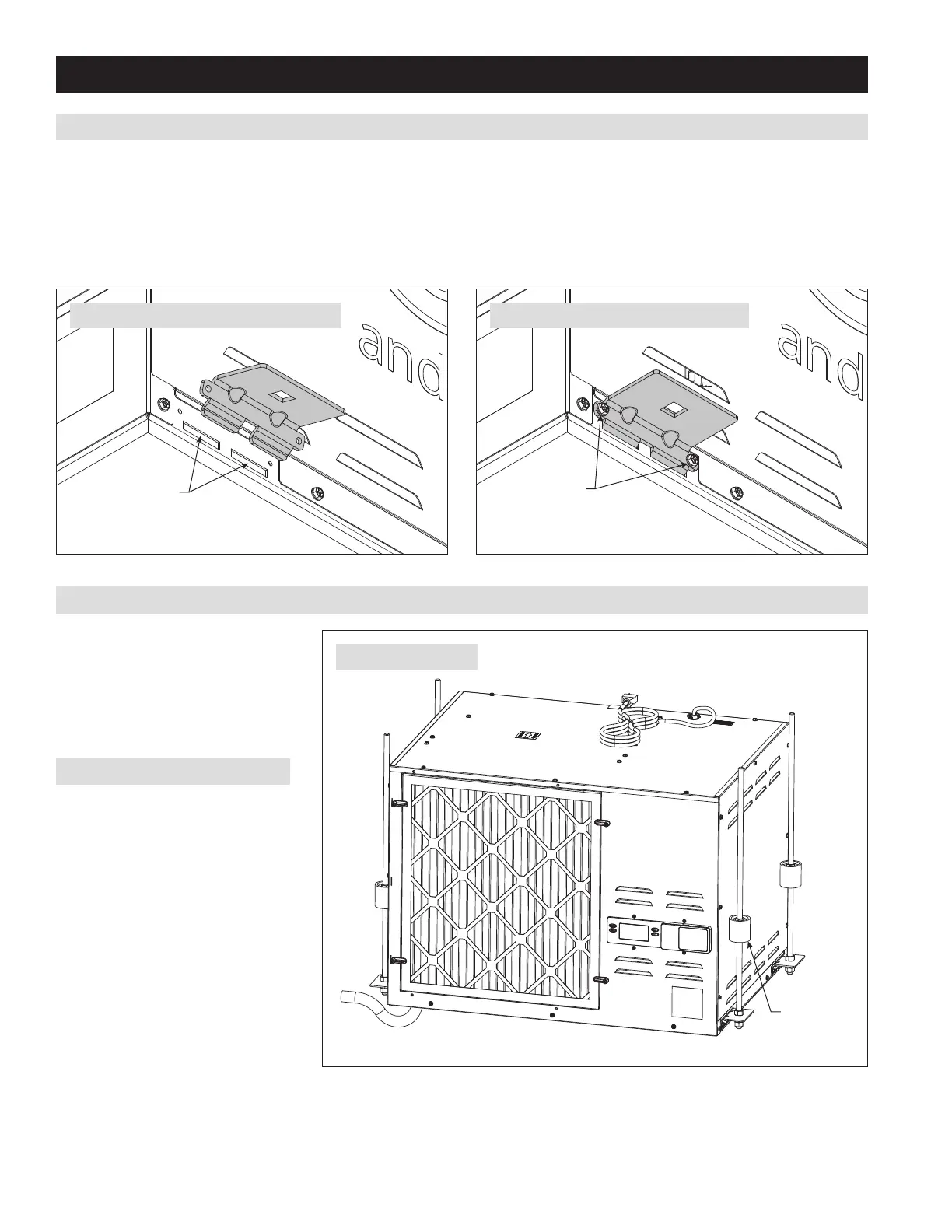

SUSPENDING THE DEHUMIDIFIER
INSTALL BRACKETS FOR SUSPENDING UNIT
The brackets are designed to accommodate up to 1/2" threaded rod�
1. Insert bracket into slots on the base� See FIGURE 5�
2. Rotate the bracket up toward the dehumidifier and secure the bracket to the side of the dehumidifier using #12 sheet metal screws (provided)�
This can be done with a 5/16" hex socket� See FIGURE 6�
3. Repeat for remaining three brackets�
HANGING THE DEHUMIDIFIER
Use the threaded rod to suspend the unit
from appropriate ceiling structure� The unit
weight is 180 lbs� Install vibration isolators
if located in an area where noise could be
a concern� Level unit right to left and front
to back so that unit drains properly�
DUCTING
Use duct kit part number 5807 for
installing ductwork to the dehumidifier�
Reference the instructions provided with
duct kit 5807 for installation details�
INSERT BRACKET INTO
OPENINGS ON BOTTOM
OF UNIT – 4 PLACES
ROTATE BRACKET
INTO PLACE AND SECURE
WITH SCREWS PROVIDED
ISOLATORS
90-2435 90-2436
90-2437
FIGURE 5 – INSTALL MOUNTING BRACKET IN BASE FIGURE 6 – SECURE BRACKET TO DEHUMIDIFIER
FIGURE 7 – SUSPENSION
6 English
