Andersen 28 User Manual

15
Manufactured by: Ronstan Denmark ApS. - Jægervænget 36 - 7100 Vejle – Denmark - info@andersenwinches - www.andersenwinches.com

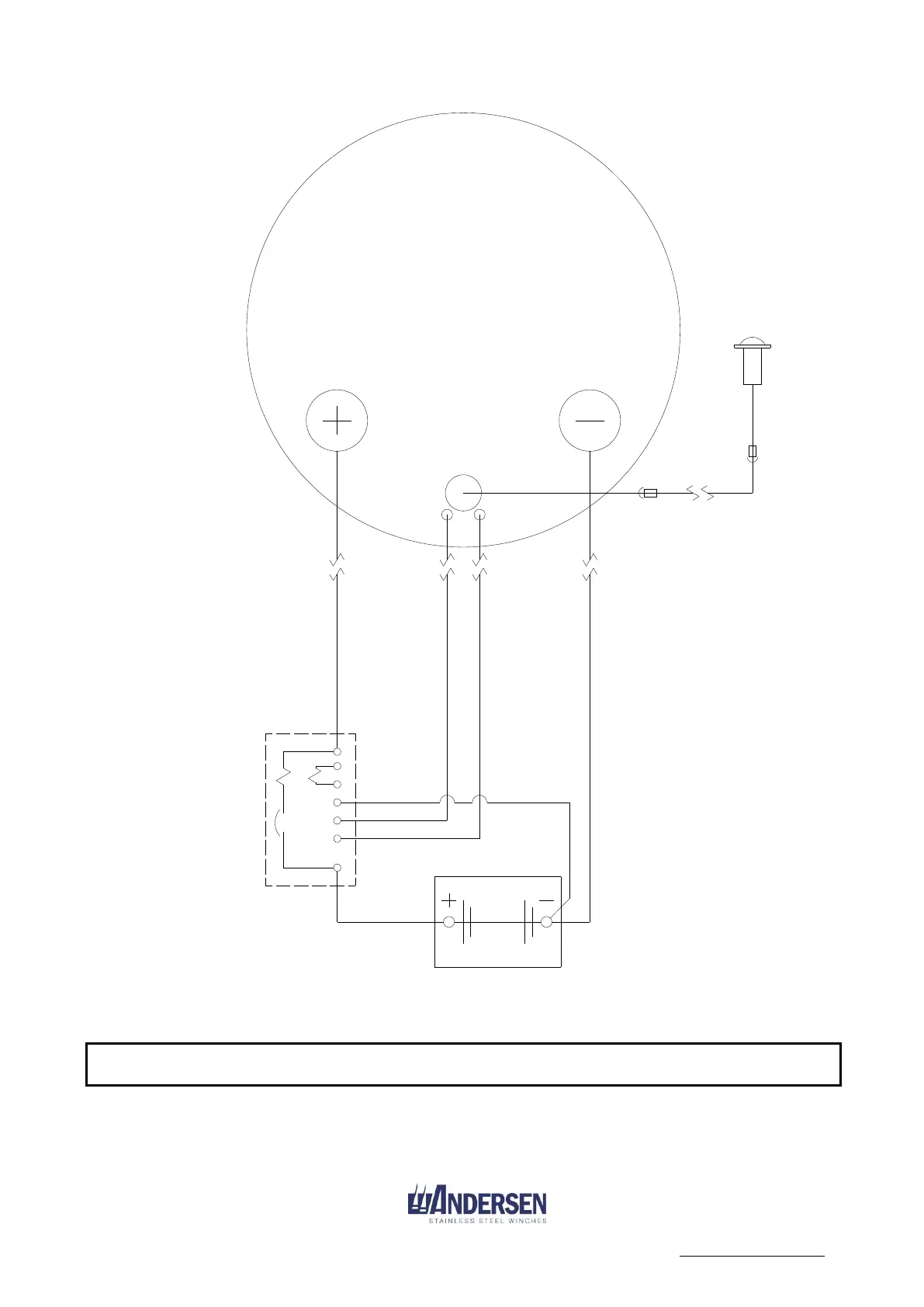

Wiring Diagram Schematic - standard installation
Compact Motor with
intergrated control.
Circuit breaker with
intergrated motor
temperature cut-out.
Switch with variable
speed control
12V or 24V battery
Control wiring 2x0.75mm²
Cable size :
(same for 12V and 24V)
Up to 10m total length
of + and -: 25mm²
10m to 15m total length
of + and -: 35mm²
15m to 20m total length
of + and -: 50mm²
Total lenght means:
from battery to motor and
back to battery again!
Install circuit breaker
as close as possible
to battery
CIR. BR.
MINUS
TER. SW.
Important: Read electric installation information on p.13
