into the deck plate or above deck motor
case. It may be necessary to tap the pins
in with a small hammer. (For 28ST /
34ST & 40ST the pins are secured during
manufacturing)
Note: for 28ST Below Deck Compact Motors
only 4 bolts are used to secure the winch. One
hole on the winch base is not used.
13. Place the winch drum on the winch base
and secure the self-tailing arm.
14. Spin the drum with your hand and
operate the winch manually with the
normal handle. The winch should turn in
both gears without great resistance. If this
is not the case, repeat steps 12-14.
Electrical Installation
Due to the special design of the motor, incorrect
electrical installation will result in permanent
damage to the motor and invalidation of any
warranty. If in doubt regarding any aspect of the
installation seek assistance from a qualified
tradesperson.
Always apply the relevant voltage to your
motor.
Always use the Andersen circuit breaker
provided, wired as described in the
wiring diagram
Never alter any part of the motor
including switches and control cables.
The motor may only be installed as
delivered. Any changes made to the
motor invalidate the warranty.
There are no user serviceable parts in the
motor. In case of any mal-function
contact your Andersen dealer.
Never work on an energized motor.

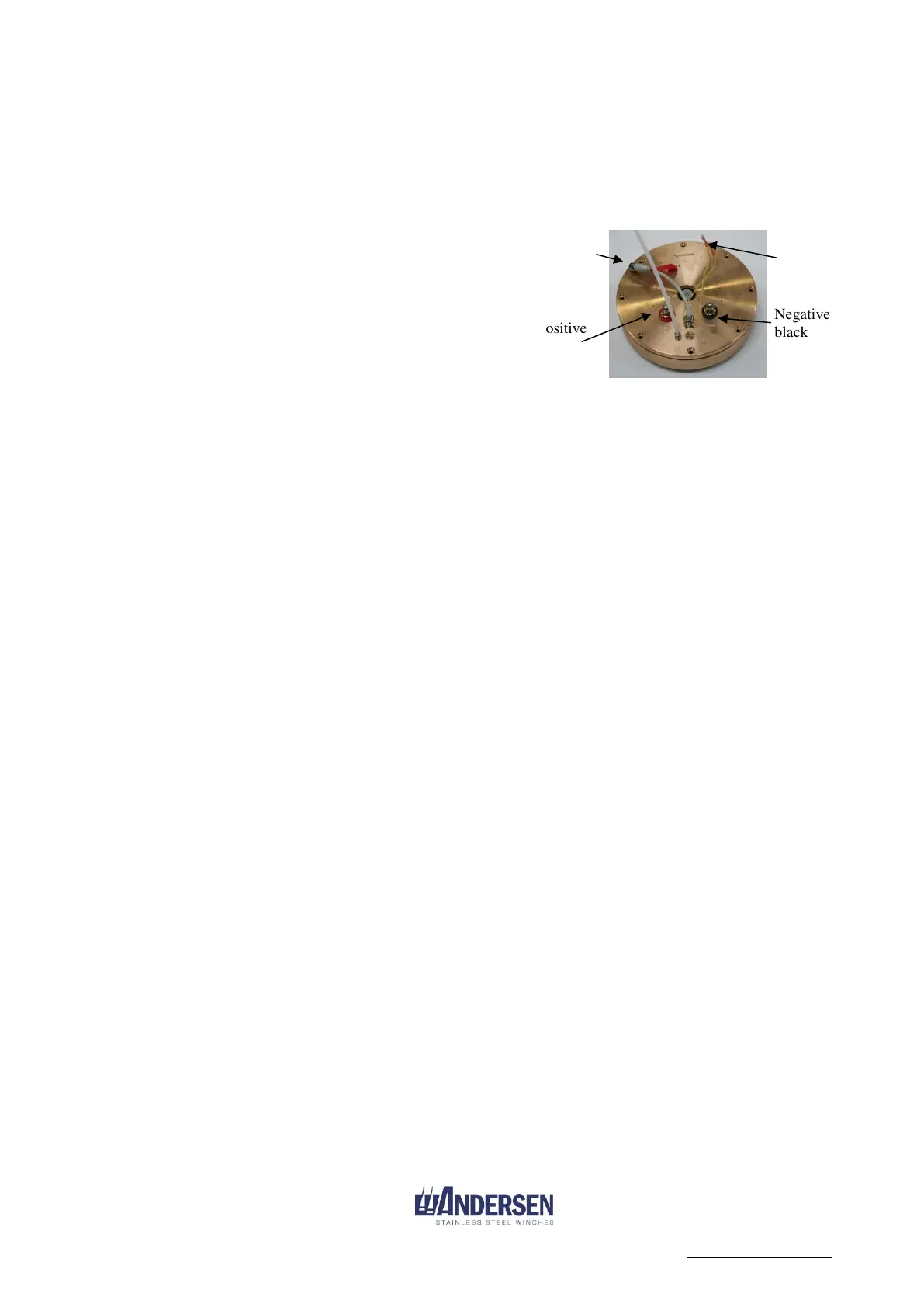

red
terminal
switch
cable
black
terminal
sensor wires
To Next Page
