* Important Installation Information for
below deck motors!
It is extremely important that your motor is
aligned with your winch. Non-aligned motors
will be noisy and gear wear will be accelerated.
To ensure correct alignment, the motor flange
must be flush with the deck plate and the eight-
sided nut must fit snugly into the octagon in the
deck plate.
This can be achieved with the help of the
following:
 Drill a hole through the deck which is
wider than the motor flange. When
mounted, there must be free space
between the deck and the flange.
 Clean the deck hole before attempting the
install the motor so that during insertion
through the deck, the motor flange does
not catch splinters of fiberglass or wood.
 Ensure that the underside of the deck
plate is clean and free from resin, varnish
or sealants.
 Do not use a sealant between the flange
and deck plate. An o-ring ensures a
waterproof connection.

Extra waterproofing can be achieved by
applying sealant to the top of the deck
plate next to the mounting nut after
installation.
 Ensure that the o-ring on top of the gear
unit is placed in its groove
 Before tightening the mounting screw,
ensure that the locking screw on the
mounting nut is not protruding beyond
the contact surface. Tighten the locking
screw when the mounting nut is securely
in place.
12. Place the winch on the deck plate for
below deck models or on the motor for
above deck models. With the provided
aligning pins in place, bolt the winch in
place with the bolts provided. Without
the aligning pins, the gears connecting
the winch to the motor may not run
smoothly. The pins are inserted through
the holes in base plate of the winch and

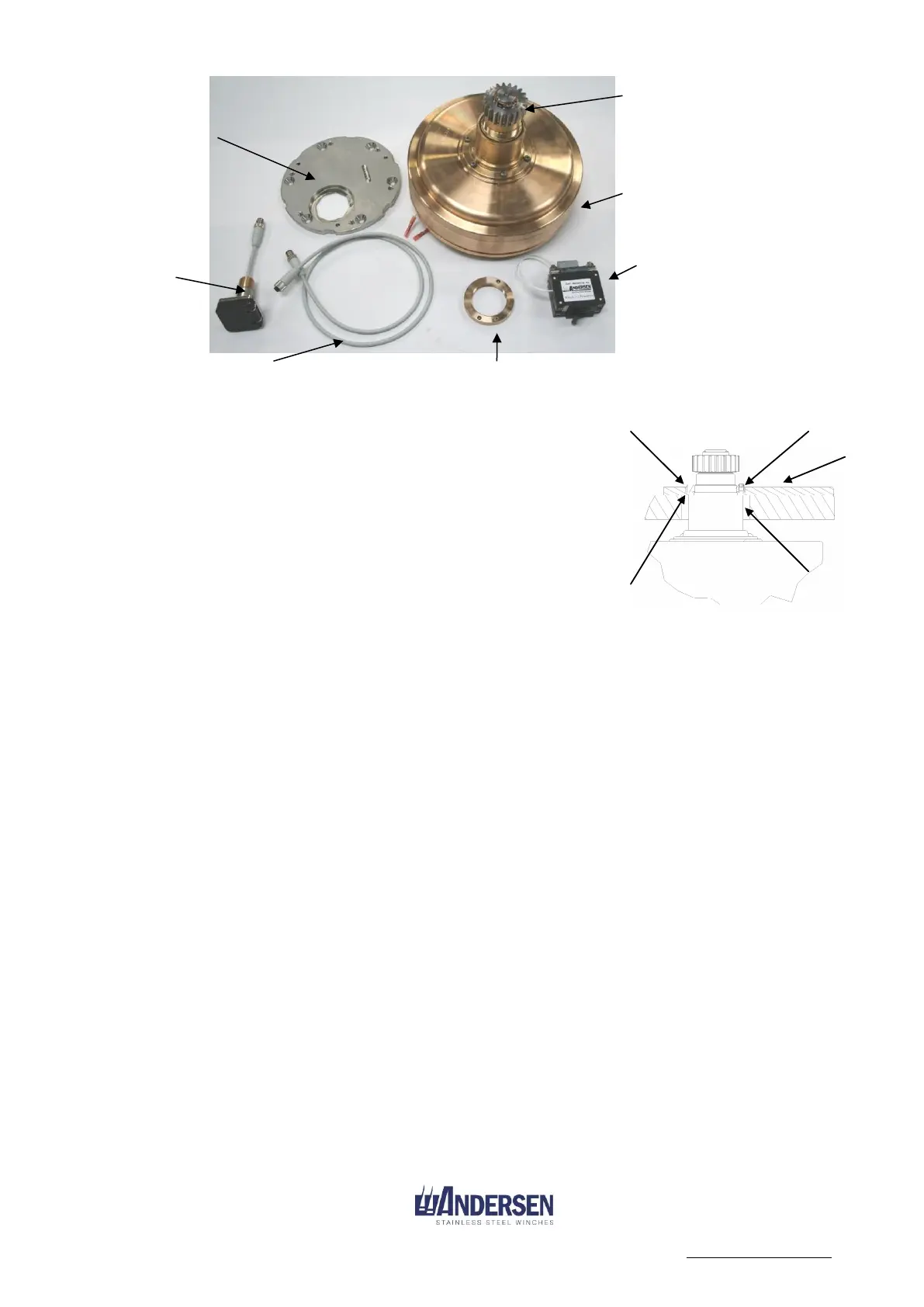

Deck plate
Motor
flange
Deck
Mounting nut
Locking screw
The motor flange must
sit flush with the deck
plate here.
Deck hole
larger than
flange
Mounting nut
Deck plate
Gear wheel
Below deck motor
Variable speed
switch
Note: The pictured motor is
for a 52 ver.2.5. The
connecting gear on the top of
the motor may be different for
other winch sizes
Extension cable
Circuit breaker with
thermo cut-out
