＊Interface Definitions and Functions

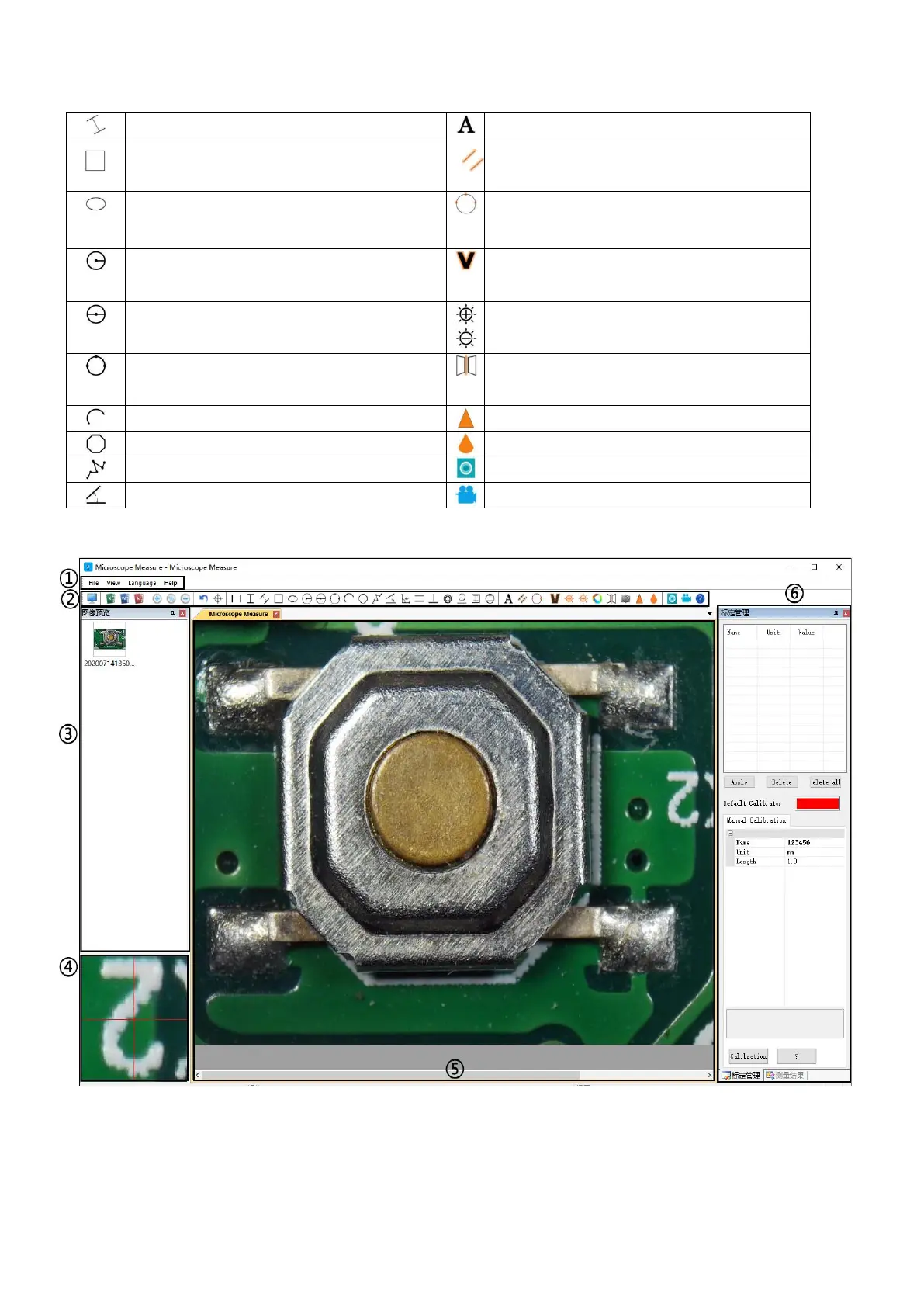

①Main menu:
Where users to open different devices or import pictures to observe or edit, do video settings or save
settings, choose which windows to show or hide etc.
②toolbar:
distance of 2 points
Add text
Measure a rectangular (width,height,
circumference&area)
Distance between 2 lines(Length)
Measure an ellipse(Long-axis radius,
short-axis radius, circumference&area)
3 points circle (radius, circumference&area)
Measure a radius circle(radius,
circumference&area)
Edge detection
Measure a diameter circle (diameter,
circumference&area)
Brightness increase/decrease
Measure a 3 points circle(radius,
circumference&area)
Flip horizontal
Measure a 3 points arc
(radius,degree,circumference&area)
Sharpen
Measure a polygon (circumference&area)
Smooth
Measure fold-lines (length)
Take a picture
Measure a 4 points angle (degree)
Take a video
