Support Legs

Assembly

Step 1

Step 2

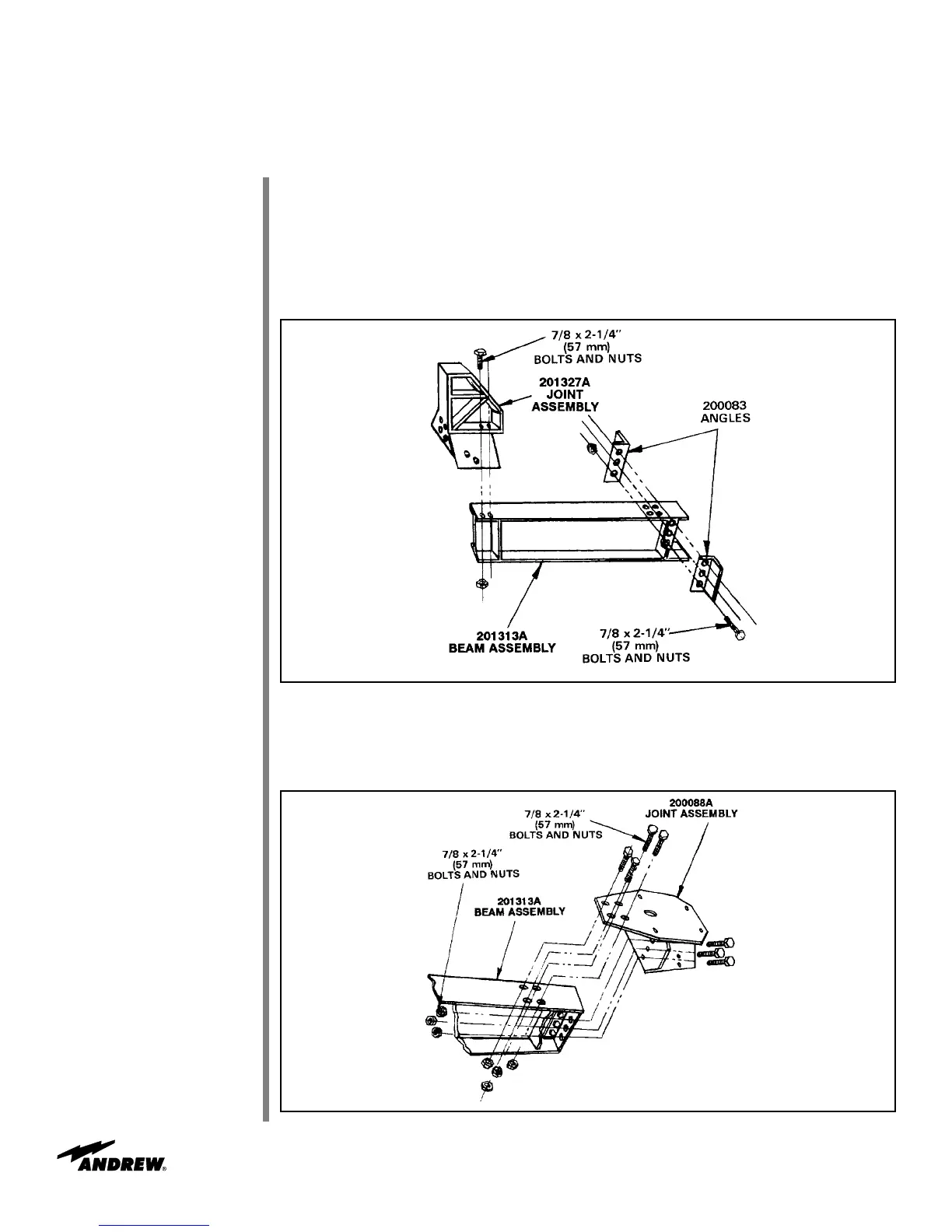

Attach 201327A joint assembly to 201313A beam assembly as shown in Figure 5.

Attach 200083 angles to 201313A beam assembly as shown in Figure 5.

• Use 7/8 x 2-1/4 in (57 mm) bolts and nuts for each connection

Installation Procedures

Figure 5

Attach 200088A joint assembly to 201313A beam assembly as shown in Figure 6.

• Use 7/8 x 2-1/4 in (57 mm) bolts and nuts

Figure 6
