Cross-Axis
Grounding Kit
Step 1
52
Installation Procedures
Note: Thoroughly clean exposed portions of grounding cables, unplated portion of uni-
versal terminals and cor-responding mounting surfaces using a wire brush. Liberally apply
supplied 203233-2 conductive grease to all connection surfaces prior to and after instal-
lation. Thoroughly remove conductive grease from hands and tools using soap and water.

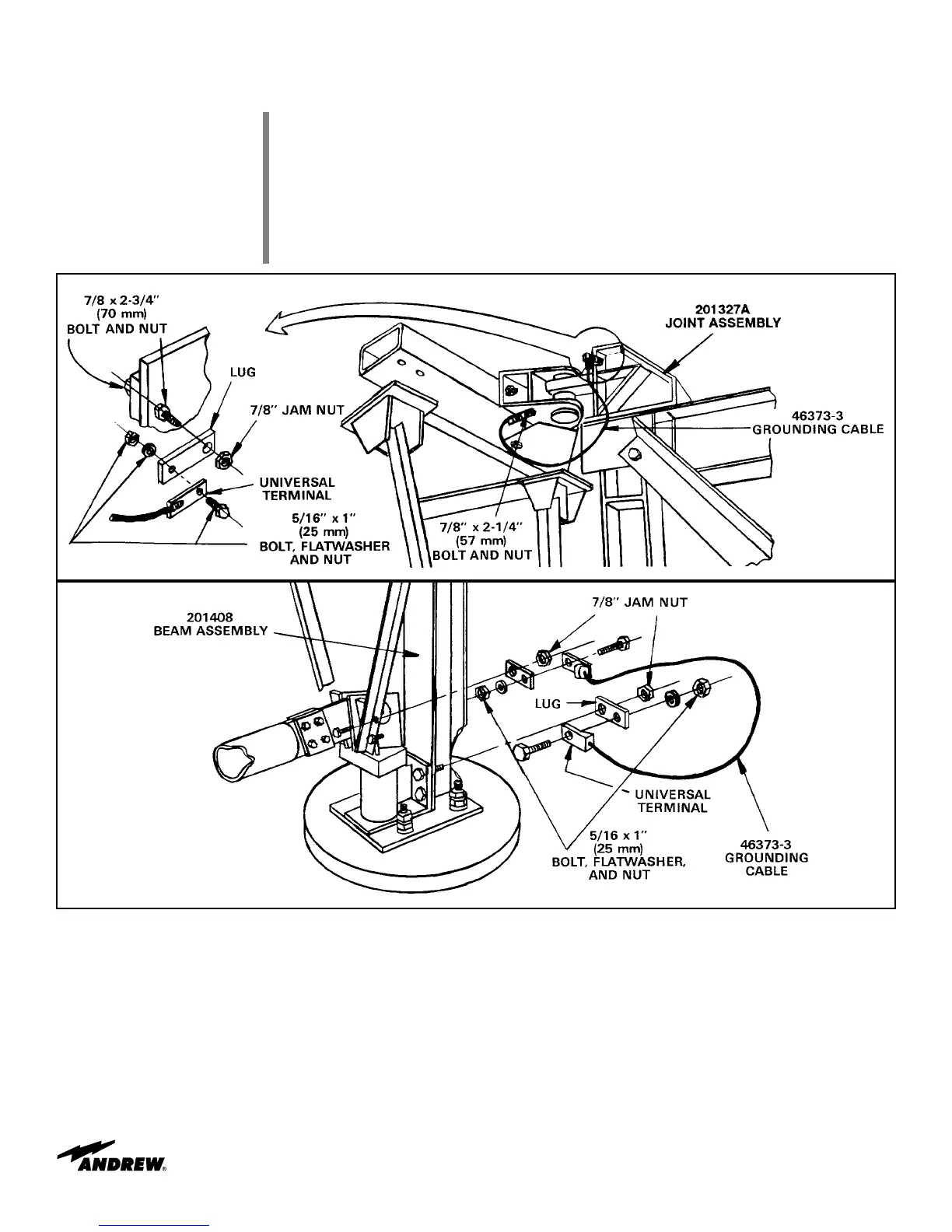

Refer to Figure 68. Attach lugs to universal terminals at each end of 46373 grounding
cables as shown, using 5/16 by 1 inch (25 mm) bolts, flat washers and nuts. Install
grounding cables on 7/8 by 2-3/4 inch (70 mm) bolts at indicated positions.
Figure 68
To Next Page
