Andrew 7.3-Meter ESA - Reflector;Backstructure Assembly

Reflector/
Backstructure
Assembly
Step 1
36
Installation Procedures

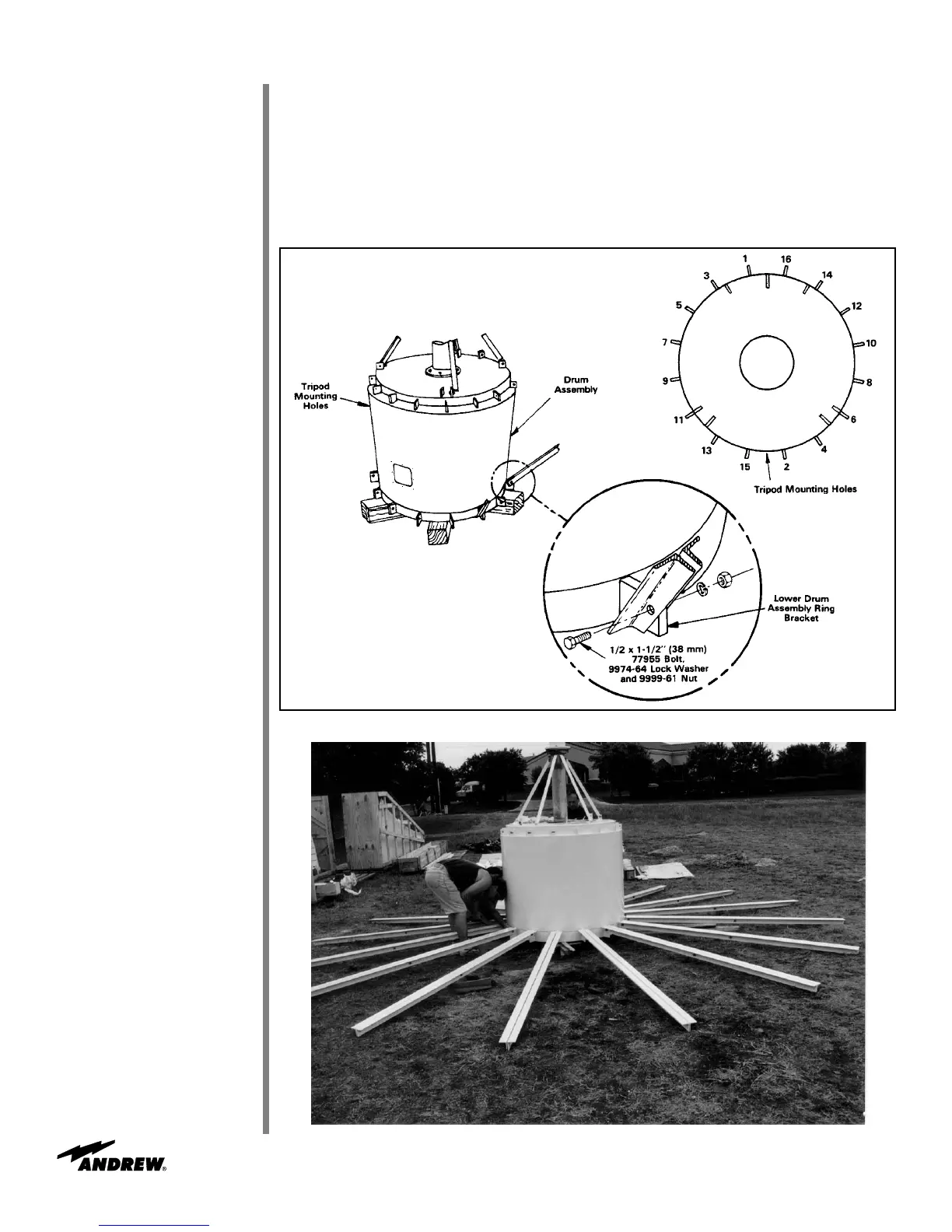

Attach back strut assemblies to lower drum ring brackets as shown in Figures 43 and
44.
• Use 1/2 x 1-1/2 in (38 mm) bolts, lockwashers and nuts
Figure 43
Figure 44
