Step 2
Step 3
Step 4
37
Installation Procedures
Remove entire end of panel crate to allow easy access and careful removal of reflector
panels.
When transporting panels, support panel on side as packaged

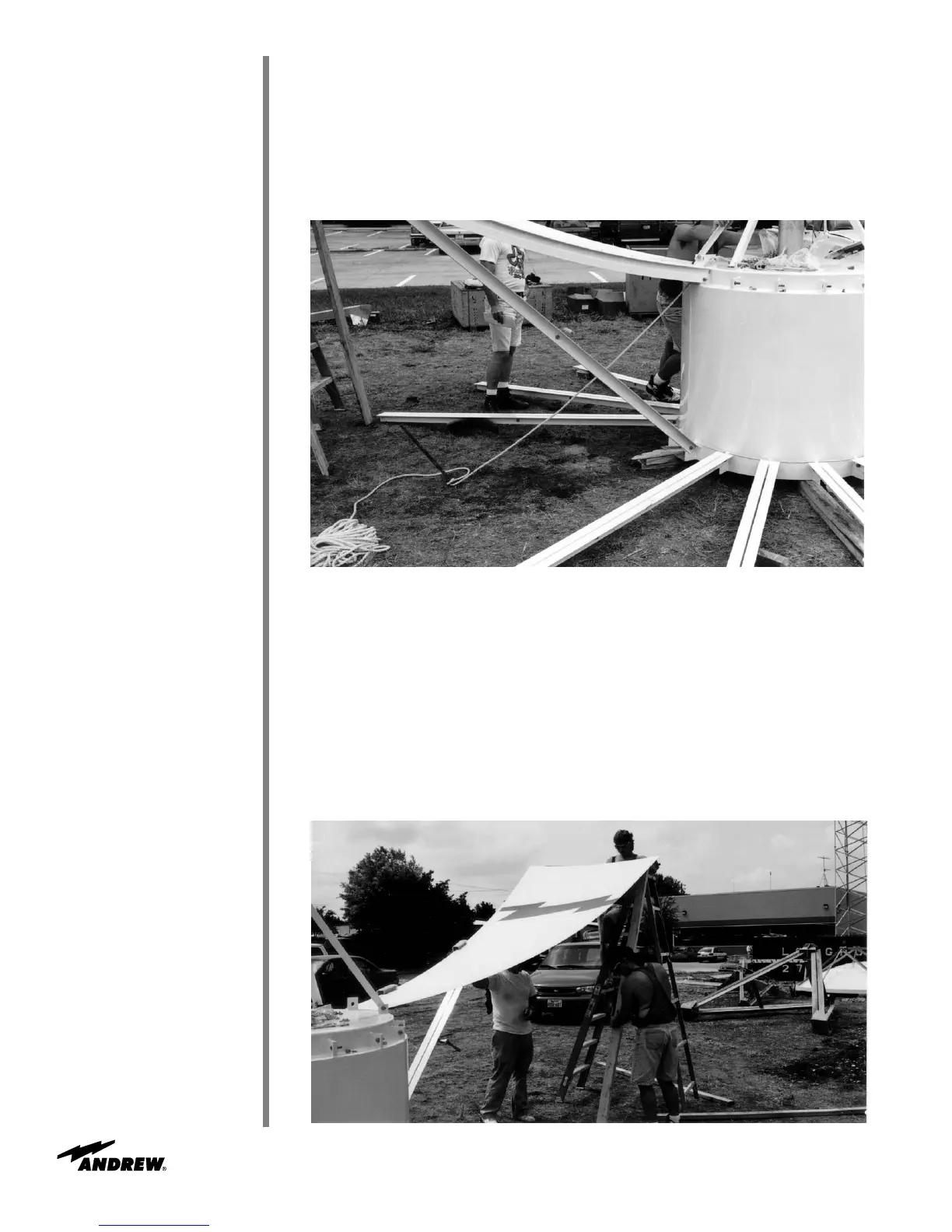

Tie assembly down by knotting rope between lifting tabs and three 3 ft stakes as shown
in Figure 45. This will prevent an unbalanced condition when adding panels one at a
time.
Figure 45
Install reflector panel segment 1 with the center of the Andrew “flash” logo to upper
drum ring assembly ring bracket 180° opposite tripod mounting holes as shown in
Figures 46 and 47. Do not tighten.
Use 1/2 x 1-1/2 in (38 mm) bolt, lockwasher and nut
Use 9 ft (3 m) 2 x 4 to temporarily support perimeter of panel segment
Note: Top of support should be padded to prevent damage to panel. Support should be
placed on outside edge of panel opposite reflector segment tee section.
Figure 46
