Andrew 7.3-Meter ESA User Manual

Panning Frame
Assembly
Step 1
16

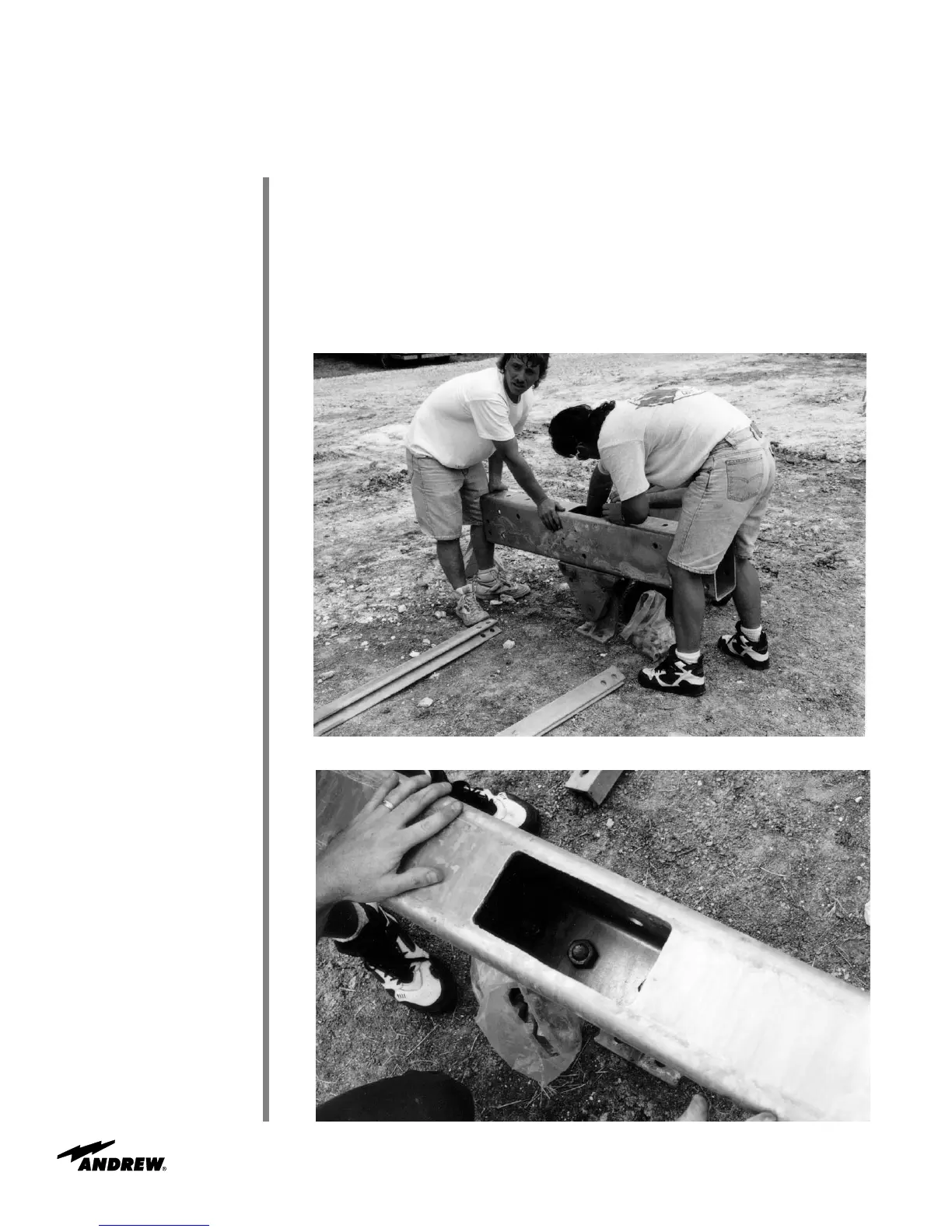

Attach 201487 panning frame to 221384 azimuth pivot assembly as shown in Figures 11
and 12. Note: Ensure pivot assembly resolver/limit switch mounting holes are downward.
• Use 7/8 x 2-1/4 in (57 mm) hardware and apply supplied RTV to flange surfaces as
indicated
•
Bolts should connect from panning frame to pivot assembly
Installation Procedures
Figure 11
Figure 12
