Step 2
17

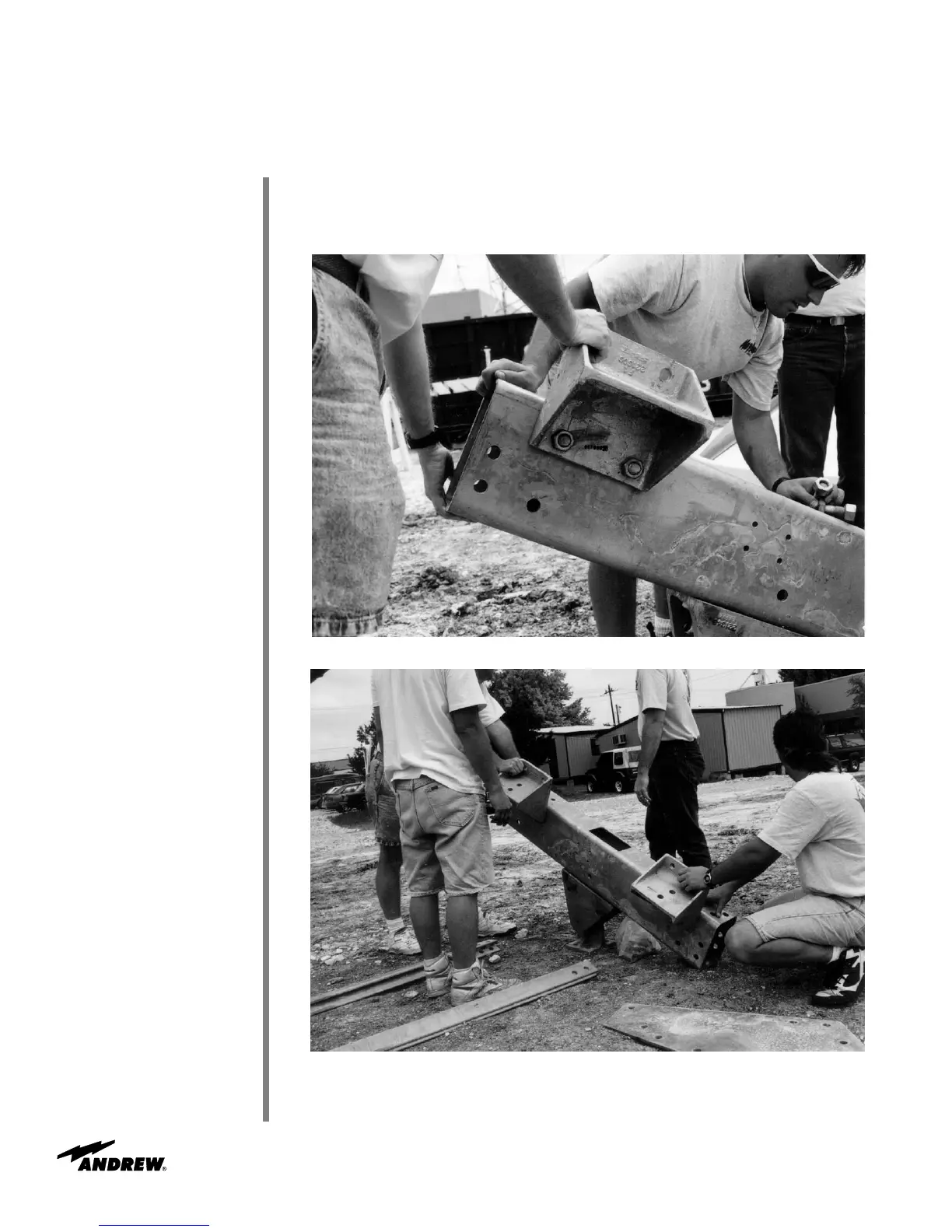

Attach 221608 joint assemblies to panning frame as shown in Figures 13 and 14.
• Use 7/8 x 2-1/4 in (57 mm) hardware
• Insert bolts from panning frame to joint assembly
Installation Procedures
Figure 13
Figure 14
