Andrew 7.3-Meter ESA User Manual

Step 3
Step 4
18

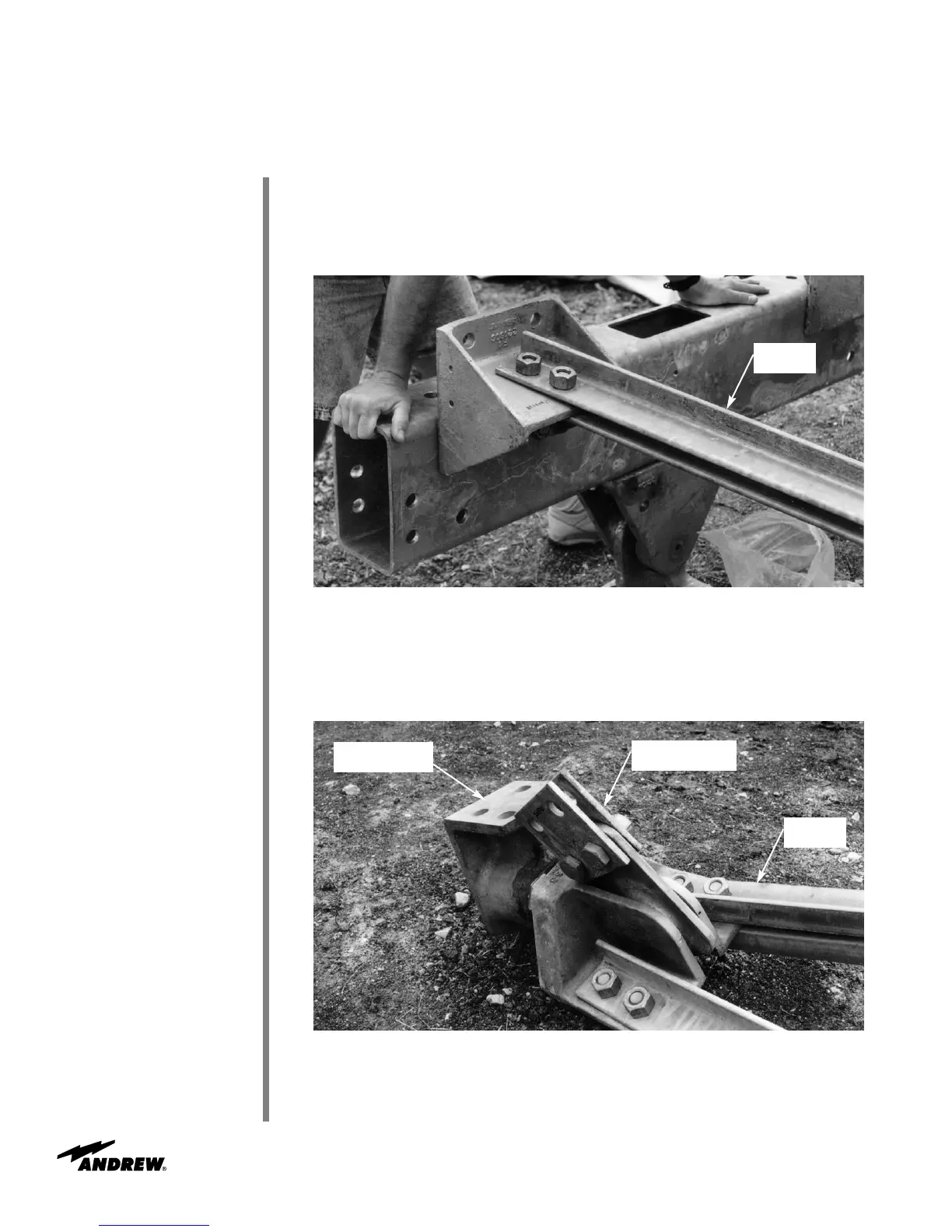

Attach 201316 support pairs to 221608 joint assemblies as shown in Figure 15.
• Place supports back-to-back with edges out and flat of angle inward
• Install 45967 spacer at midpoints of support pairs
• Use 7/8 x 2-1/4 in (57 mm) hardware for each connection
Installation Procedures
Figure 15
Attach 221345 azimuth pivot assembly to 201316 support pairs. Attach 201596 mount-
ing plates to 221345 azimuth pivot assembly tab as shown in Figure 16.
• Use 7/8 x 2-1/4 in (57 mm) hardware for each connection
• Insert bolts from rear of pivot assembly to connect supports
Figure 16
201316
Supports
221345 Azimuth
Pivot Assembly
201316
Supports
201596
Mounting Plates
