Andrew 7.3-Meter ESA User Manual

Step 5
Step 6
19

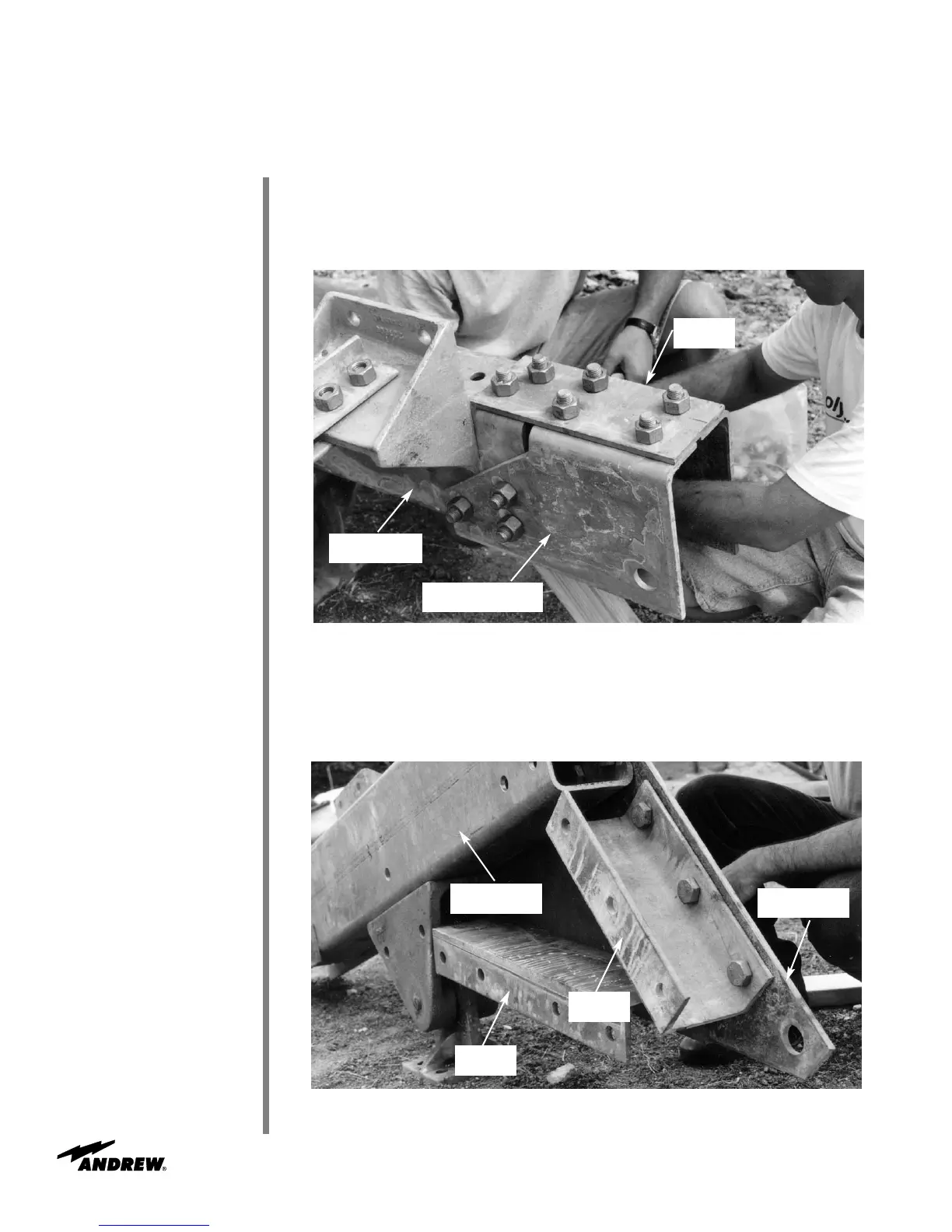

Attach 201770 plate connecting 201484/201484-2 extension assembly to 201487 pan-
ning frame as pictured in Figure 17.
• Use 7/8 x 2-1/4 in (57 mm) hardware
• Insert bolts from inside panning frame assembly
Installation Procedures
Figure 17
Attach 201488 outrigger plate to opposite end of 201487 panning assembly. Attach
201481/201482 supports to outrigger plate as shown in Figure 18.
• Use 7/8 x 2-1/4 in (57 mm) hardware
• Insert bolts from supports to the outrigger plate
Figure 18
201770
Plate
201484/201484-2
Extension Assembly
201487
Panning Frame
201487
Panning Frame
201482
Support
201481
Support
201488
Outrigger Plate
