Step 5
Step 6
15

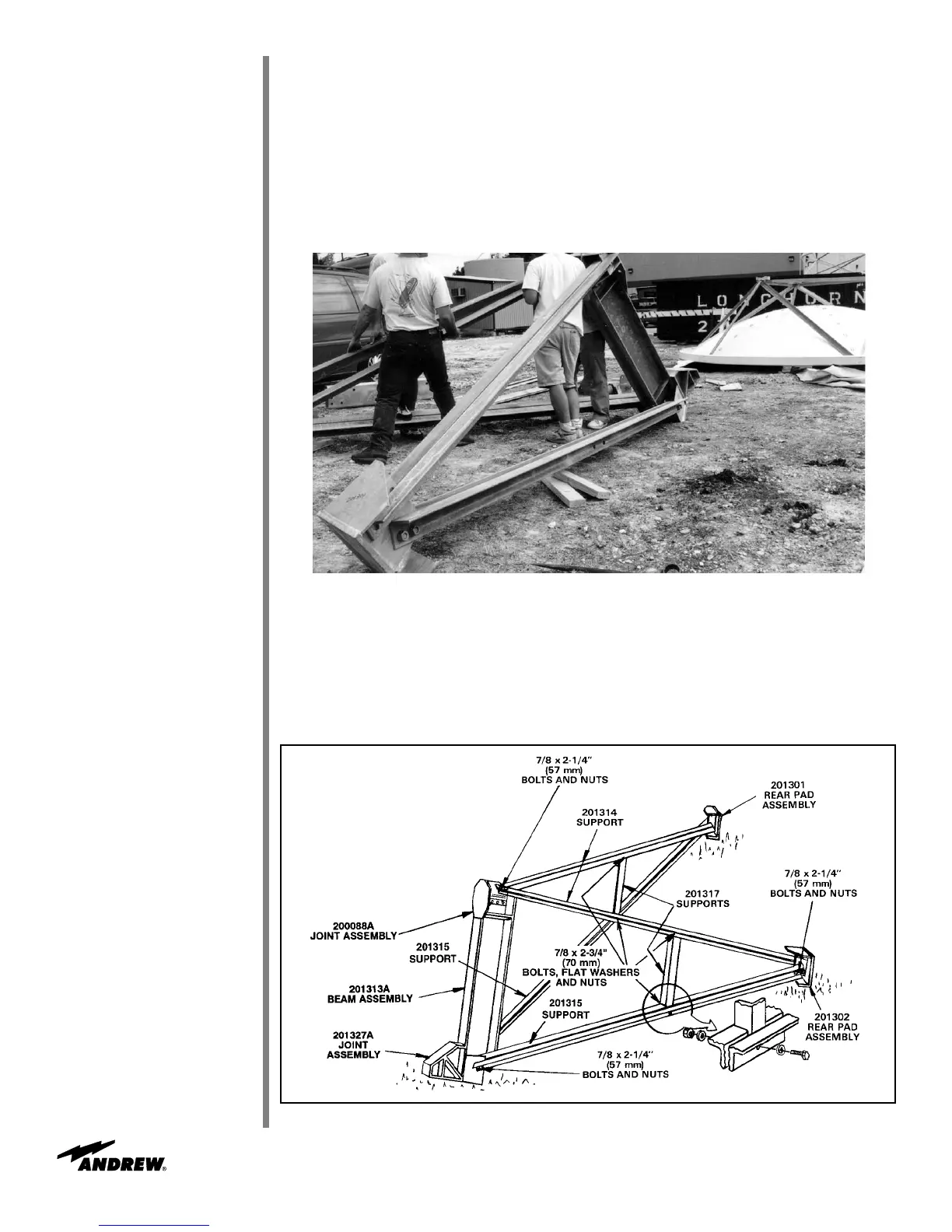

Attach 201314 supports to 201301/201302 rear pad assemblies and 201273 joint
assembly as shown in Figures 9 and 10.
Use 7/8 x 2-1/4 in (57 mm) bolts and nuts
Insert bolt from inside of joint assembly to outside of support
Supports should be installed back-to-back with the edges forward and the flats of
angles facing rear
Installation Procedures
Figure 9
Attach 201317 supports between angle pairs as shown in Figure 10. Select correspond-
ing mounting holes so that 201317 supports are parallel to 201313A beam assembly.
Use 7/8 x 2-3/4 in (70 mm) hardware
Supports attached with edges inward and flats facing up.
Figure 10
