Andrew 7.3-Meter ESA User Manual

Step 10
Step 11
22
Installation Procedures

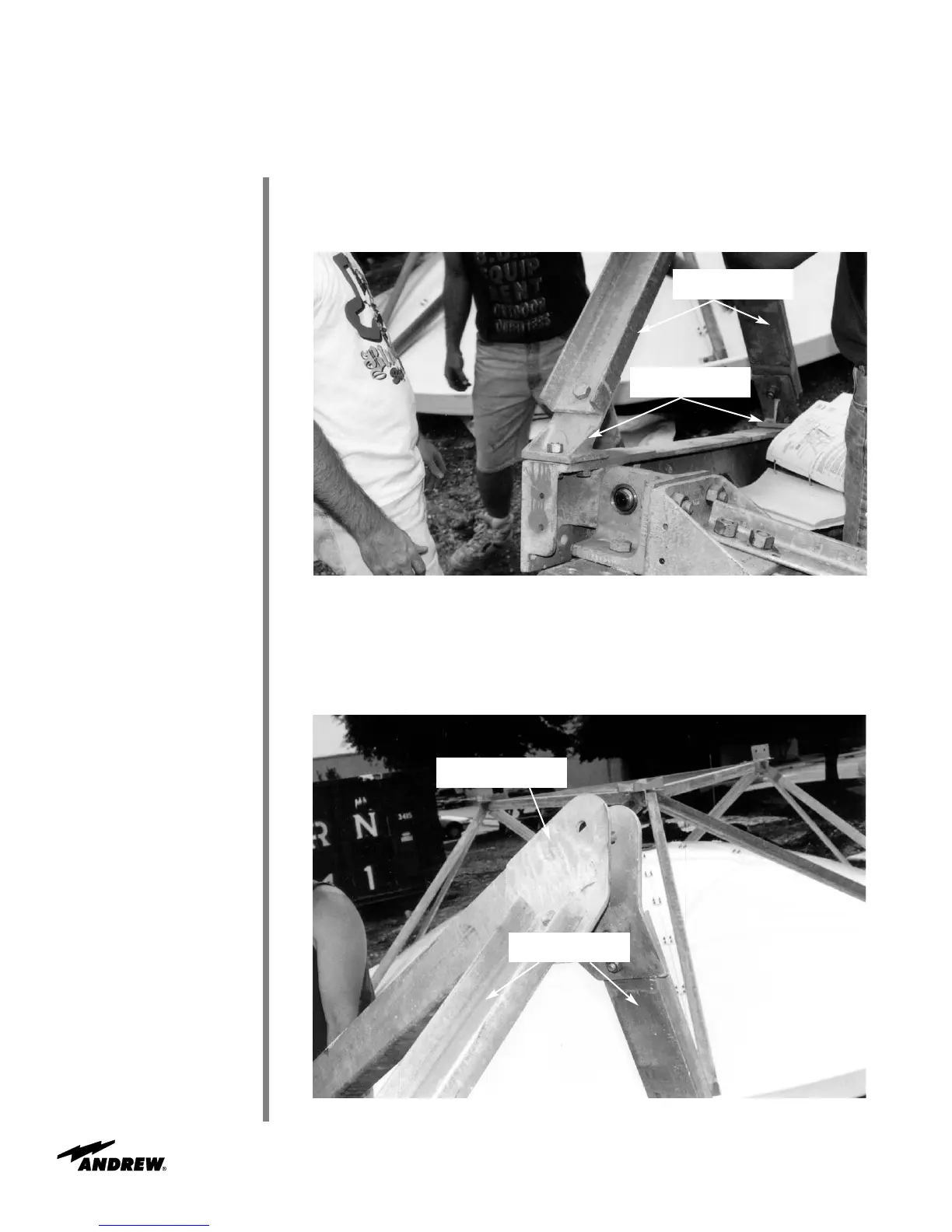

Attach 300026 tripod channel legs to tripod joint brackets as shown in Figure 23.
•
Use 7/8 x 2-1/4 in (57 mm) bolt, flatwasher and nut
• Insert bolts from channel leg to joint bracket
Figure 24
Figure 23
Attach 301772 tripod tube weldment to 300026 tripod channel legs as shown in Figure
24.
•
Use 7/8 x 2-1/4 in (57 mm) bolt, flatwasher and nut
• Insert bolt from channel leg to tube weldment
301741/301742
Tripod Joint Brackets
300026
Tripod Channel Legs
301772
Tripod Tube Weldment
300026
Tripod Channel Legs
