Step 7
33
Installation Procedures

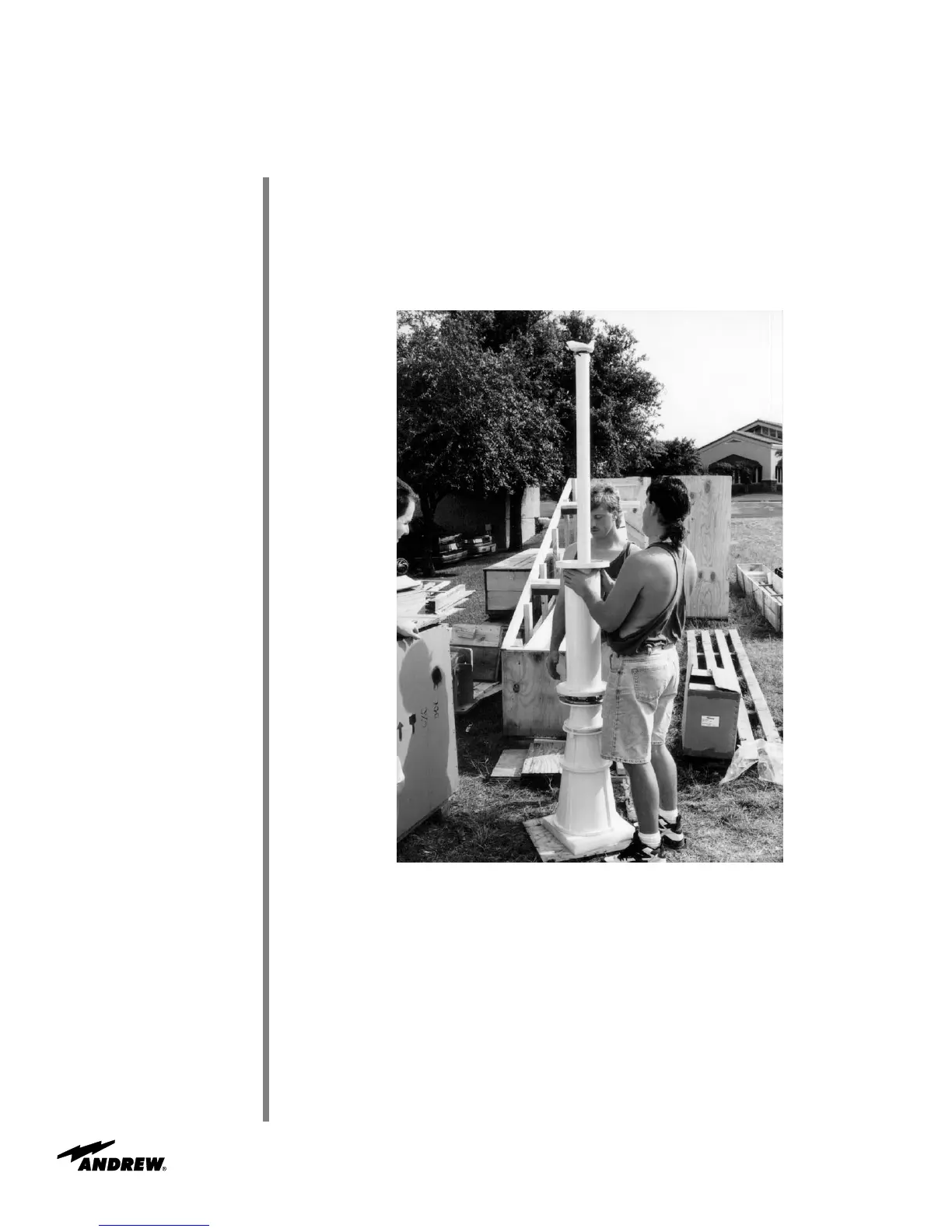

Attach 77646-2 feed horn mounting pipe to 201606/301808 feed horn assembly as
shown in Figure 40.
• Use 1/2 x 2-1/2 in (63 mm) hex screws, lockwashers and nuts
• Insert bolts from feed horn to mounting pipe
Figure 40
