Andrew 7.3-Meter ESA User Manual

Beginning with panel seam 1, fully tighten hardware attaching panels to upper drum
assembly ring, reflector tee segment to back strut assembly, back strut assembly to
lower drum assembly ring and back strut assembly pairs. Continue tightening attaching
hardware on all reflector segments.

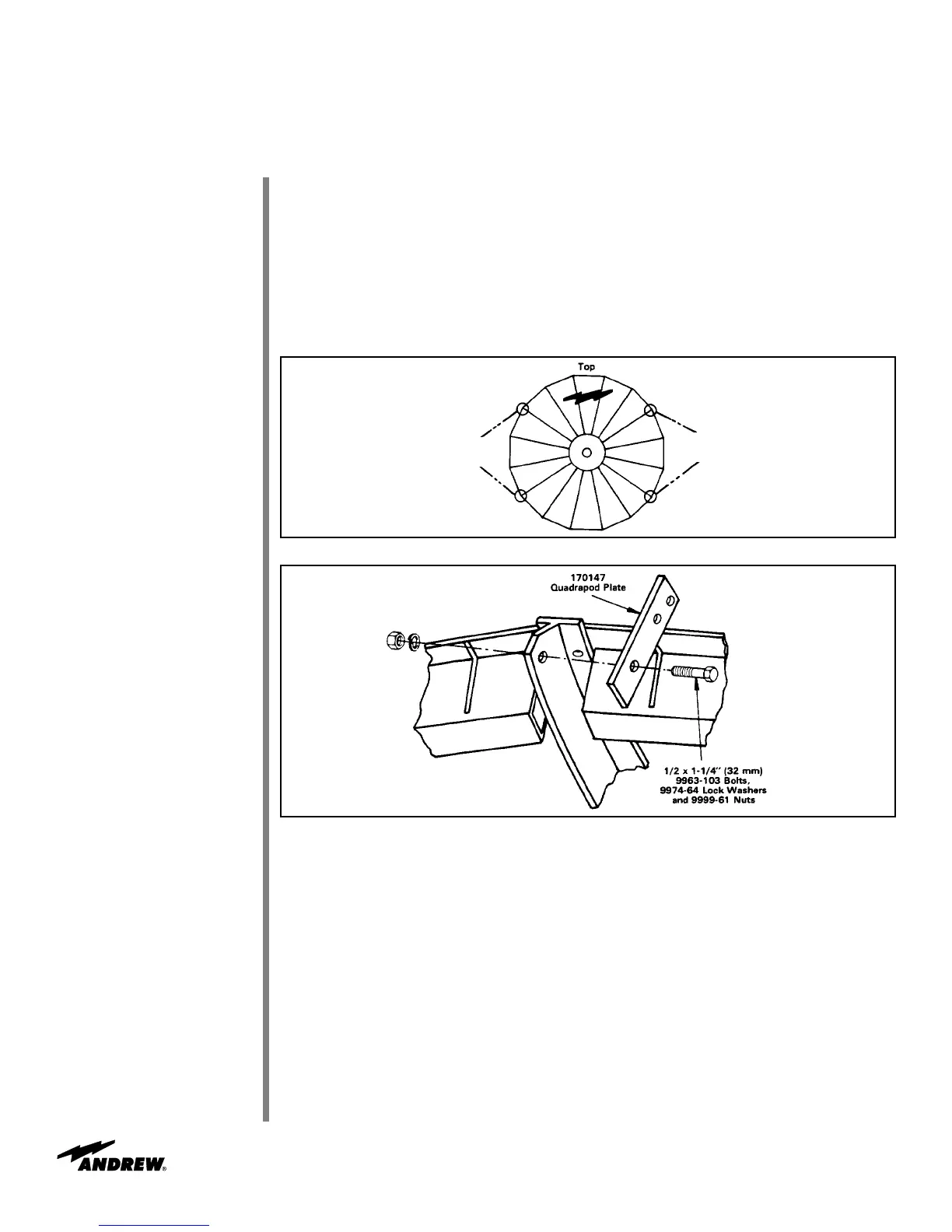

Install 170147 quadrapod plates at positions indicated in Figure 54 according to proce-
dure in Figure 55. Do not tighten hardware.
• Use 1/2 x 1-1/4 in (32 mm) bolts lockwashers and nuts
Step 15
Step 16
43
Installation Procedures
Figure 54
Figure 55
Quadrapod
Plates
Quadrapod
Plates
