Andrew ATC200-Lite Teletilt User Manual

Bulletin 639510 May 2005 3-1
Section 3
Program Startup and Configuration
3.1 Preparing for Program Startup
This program is designed to congure and control Andrew’s ATC200-Lite Teletilt
®
, AISG1
compliant, RET antenna system through a controller connected to a local PC.
1. Verify that the ATC200-Lite controller is turned off/powered down, etc.
2. Verify that the actuator/antenna is properly connected to the ATC200-Lite controller.
3. Verify that the supplied RS-232 cable is connected between the ATC200-Lite controller
and an active RS-232 serial port on the PC. Note a USB–to–serial port adapter may be
used to connect the ATC200-Lite to the PC (see Section 1.3).
4. Turn on/power up the ATC200-Lite controller. After 2 - 3 seconds, the two power LEDs
should display green lights on the front panel of the controller. The power LEDs are located
nearest to the dc IN port shown in Figure 3-1.
5. When these two green lights are displayed, start the ATC200-Lite application installed in
Section 2. DO NOT start the ATC200-Lite application until the power LEDs display two
green lights.

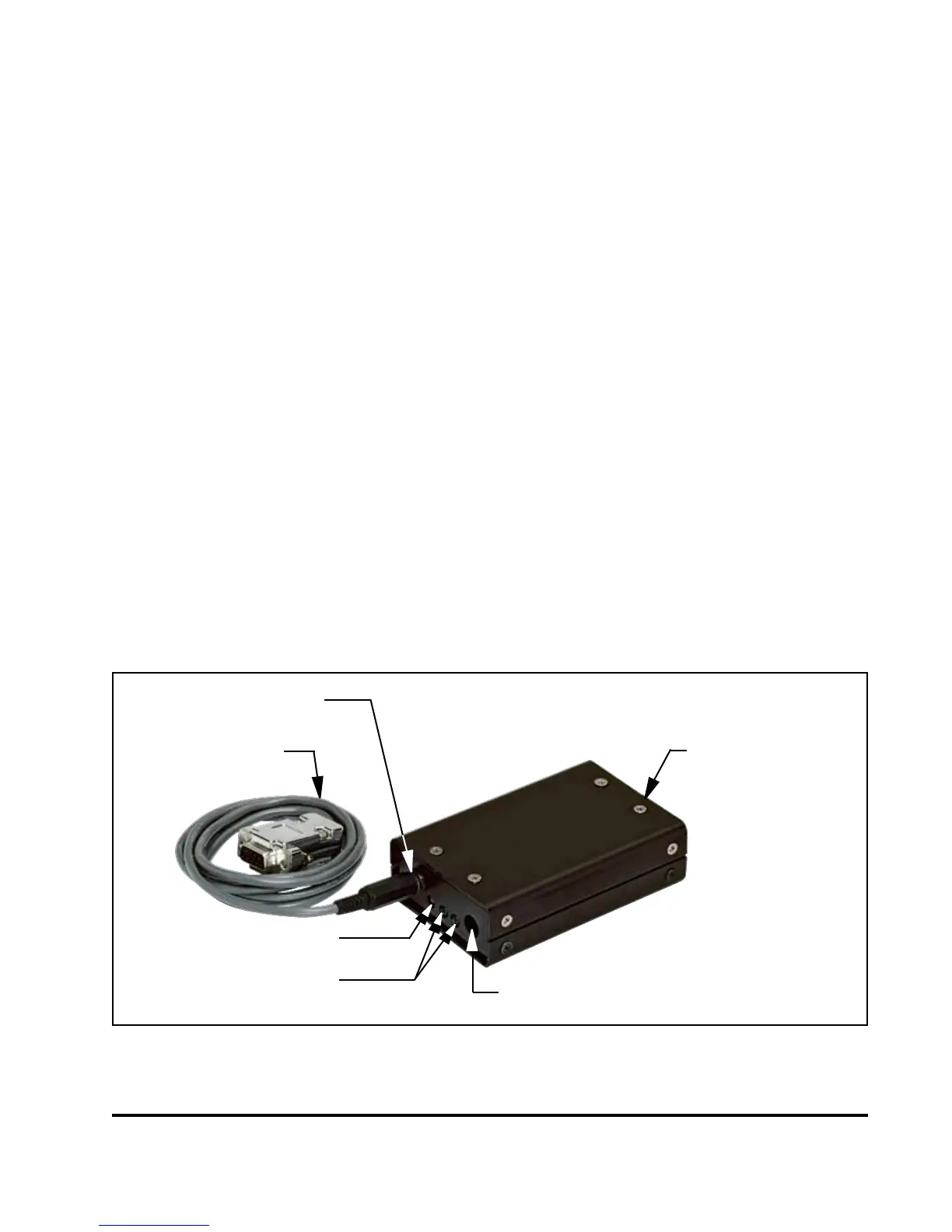

Figure 3-1. ATC200-Lite Controller with RS-232 Serial Cable Attached.
RS-232 Serial Port
dc IN Port
Transmit/Recieve Signal
LED
RS-485 RET Port
RS-232 Serial
Cable, Supplied
Power LEDs
