Page 11 of 20

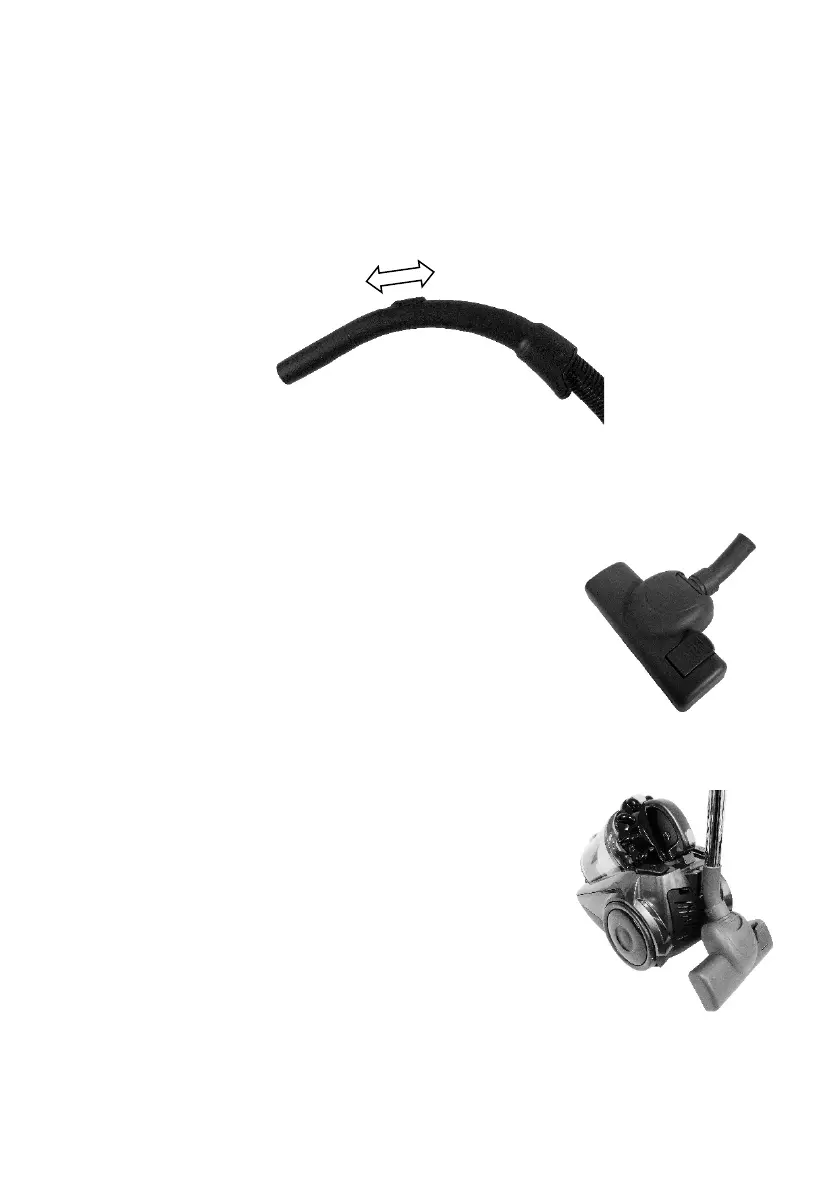

8 Suction Relief Slide
The Suction Relief Valve is used for easy, temporary reduction of the vacuum
cleaner suction at the floor head.
Slide the Suction Control Slide to the open position to reduce the suction power
and then slide close to revert back to full suction power at the floor head.
9 Floor Head
The floor head is adjustable to suit either hard floors
or carpets.
The floor head has two settings. When cleaning hard
surfaces (parquet flooring, tiles, etc.), the floor head
brushes should be extended.
When cleaning carpets and rugs, the brushes should
be retracted into the floor head.
Press the brush change button to switch between the two settings.
Note: If, during vacuuming, you need to pause to
move furniture etc., you can place the floor head in
the parking holder using the hook on the back of the
floor head.
Refer to the section “Storage” for further information.
