Page 9 of 20
6 Assembly Method
Please Note: Always remove the plug from the power socket before fitting or
removing accessories.
Ensure all Filters are fitted, and fitted correctly before using.

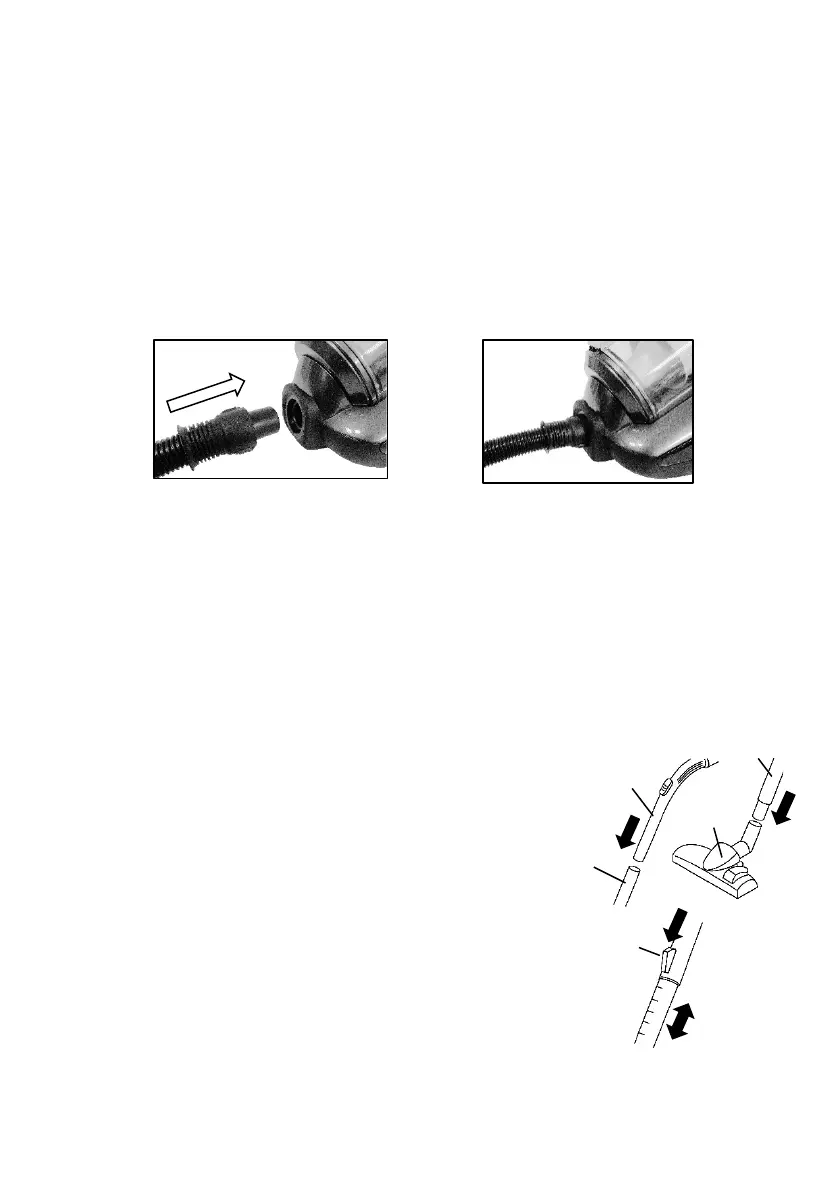

6.1 Fitting Flexible Hose
Insert the coupling end of the vacuum cleaner hose into the Hose Connector
hole and push inward until it locks into place.
The side locking clips (which are located on the sides of the hose coupling)
may need to be depressed when pushing in for easier fitment.
6.2 Hose Removal
To remove the flexible hose from the vacuum cleaner, depress the locking
clips which are located on the sides of the hose coupling and then pull the
coupling straight out.
6.3 Fitting Telescopic Tube and Accessories
• Insert the hose handle (1) into the upper end of
the telescopic tube (2).
• Insert the lower end of the telescopic tube (4)
into the Floor Head (3).
• To adjust the length of the telescopic tube,
press the telescopic tube lock button (5) down,
and then pull the handle and tube out to the
desired length.
