The maximum ambient temperature 40° C must never be exceeded.

Operate the unit only after having familiarized with its functions. Do not permit operation by persons not qualied

for operating the unit. Most damages are the result of unprofessional operation!

Please use the original packaging if the product is to be transported.

Please consider that unauthorized modications on the unit are forbidden due to safety reasons!

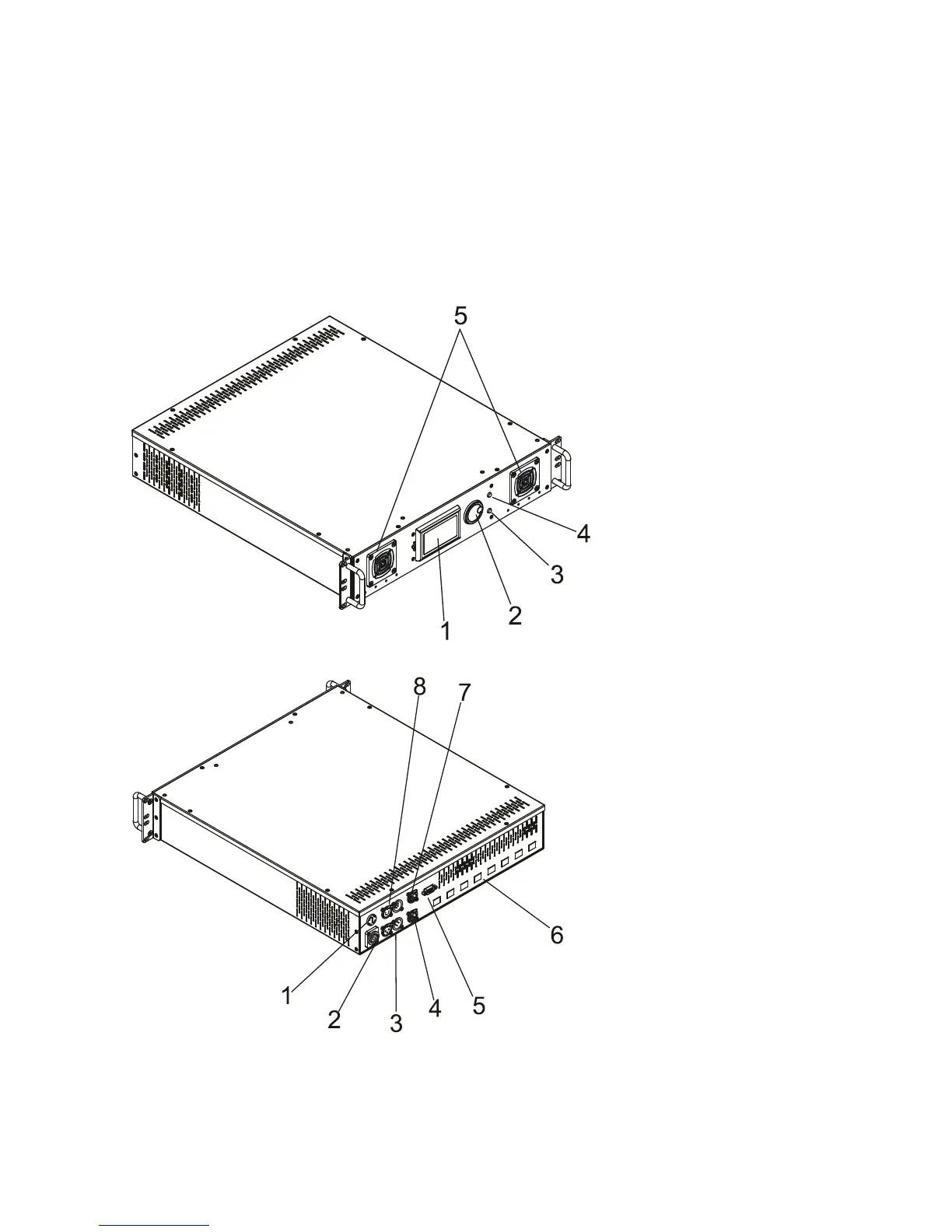

3. Description of the ArcPower 384 Rack Mount

1 - LCD graphic displayr

2 - ANS rotary wheel

3 - Enter button

4 - Escape buttont

5 - Cooling fans

1 - Fuse holder

2 - Mains input

3 - DMX IN/OUT (3-pin XLR)

4 - DMX input for DyNet (RJ45)

5 - Control port (RS 232)

6 - LED Zones 1-8 (8 x RJ45)

7 - Ethernet (RJ45)

8 - DMX IN/OUT(5-pin XLR)
