Chapter 5 — Option Verification 5-8 LTE Signal Analyzer Verification, Option 541 and 542
S412E MM PN: 10580-00324 Rev. N 5-19
5-8 LTE Signal Analyzer Verification, Option 541 and 542
The tests in this section verify the functionality of the LTE Signal Analyzer of the S412E LMR Master. The
following tests are included in this section:
• “LTE Channel Power Accuracy Verification (Option 541)” on page 5-20
• “LTE Frequency Error Verification (Option 542)” on page 5-21
Equipment Required
• Anritsu MG3700A Vector Signal Generator
• Anritsu ML2438A Power Meter
• Anritsu MA2482D Power Sensor
• Anritsu 34NN50A Adapter
• Anritsu 15NNF50-1.5C RF Coaxial Cable
• Aeroflex/Weinschel 1870A Power Splitter
• Aeroflex/Weinschel 44-10 10 dB Fixed Attenuator (2)
• Anritsu PN 2000-1627-R BNC Coaxial Cable (2)
• 10 MHz Reference Standard
Procedure

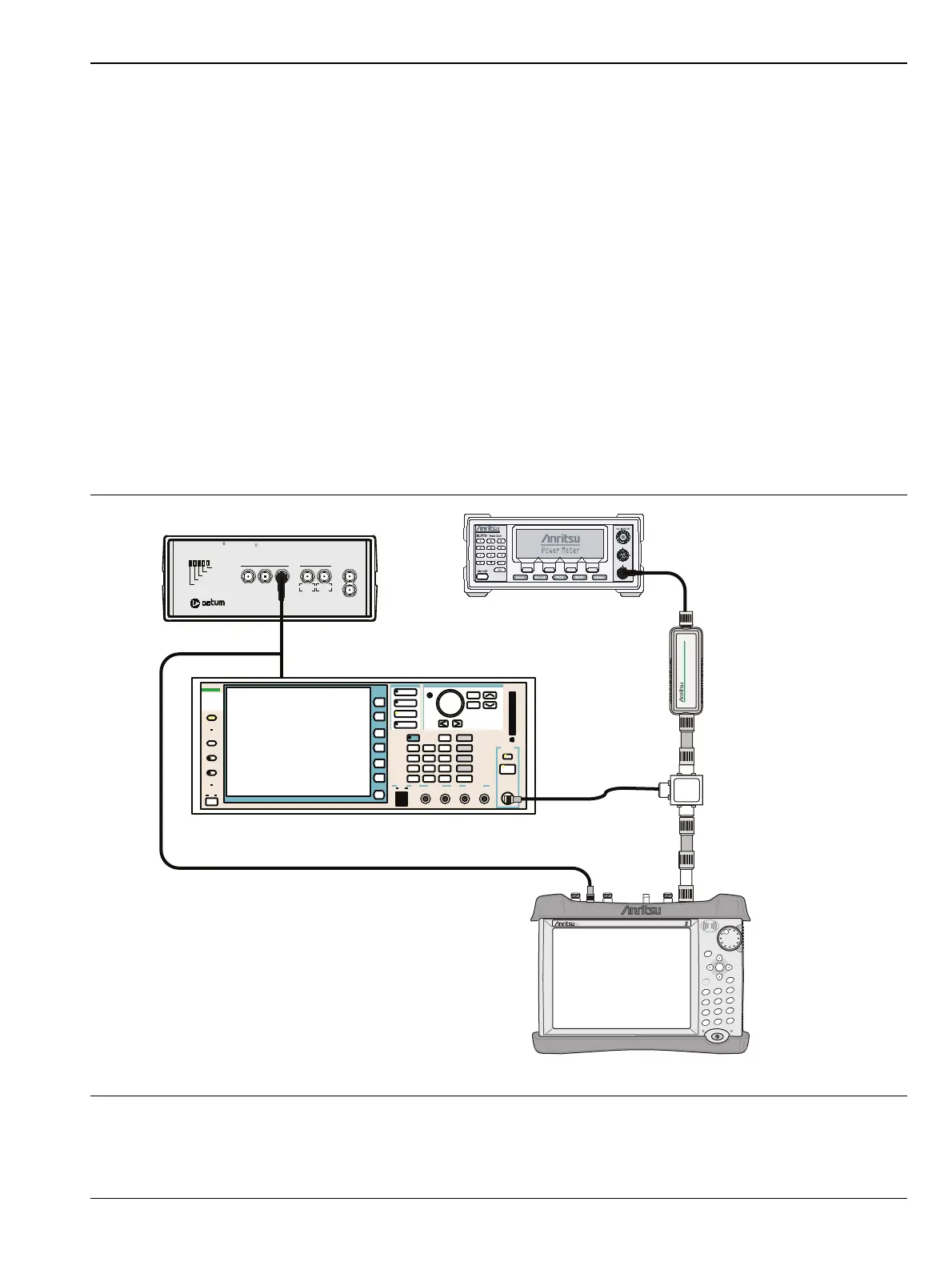

Figure 5-4. LTE Signal Analyzer Option Verification
S412E LMR Master
Power Charge
+/-
.
0
3
Sweep
2
Calibrate
1
Preset
6
Limit
5
Trace
4
Measure
9
Mode
8
System
7
File
Shift
Back
Enter
ESC
LMRMaster
S412E
MG3700A Vector Signal Generator
Function
Ethernet Control Input Modulation Input
Cursor/Edit
RF Output
3
MG3700
Vector Signal
Generator
250kHz-6GHz
ML2438A Power Meter
MA2482D
Power Sensor
1870A
Power Splitter
10 dB Attenuator
10 dB Attenuator
34NN50A Adapter
10 MHz Reference
Oscillator Warmup
Oscillator Ready
Failure
1 PPS Sync
1 PPS OUT
1 MH z 5 MHz 1 0 MH
5 MHz 10 MHz
Sine wave Out AUX
1 PPS IN
Power
TESTIME
PLUS
R
RubiSource T&M
R
