5-5 Mobile WiMAX Signal Analyzer Verification, Option 66 and 67 Chapter 5 — Option Verification
5-10 PN: 10580-00324 Rev. N S412E MM
5-5 Mobile WiMAX Signal Analyzer Verification, Option 66 and 67
The tests in this section verify the functionality of the Mobile WiMAX Signal Analyzer of the S412E.
There are tests for the following:
• “Mobile WiMAX Channel Power Accuracy Tests (Option 66)”
• “Mobile WiMAX Residual EVM and Frequency Error Tests (Option 67)” on page 5-13
Mobile WiMAX Channel Power Accuracy Tests (Option 66)
The tests in this section verify the function of the optional Mobile WiMAX Signal Analyzer in Model S412E
LMR Master.
Equipment Required
• Anritsu MG3700A Vector Signal Generator
• Anritsu ML2438A Power Meter
• Anritsu MA2482D Power Sensor
• Anritsu 34NN50A Adapter
• Anritsu 15NN50-1.5C RF Coaxial Cable
• Aeroflex/Weinschel 1870A Power Splitter
• Aeroflex/Weinschel 44-10 10 dB Fixed Attenuator (2)
• Anritsu PN 2000-1627-R BNC Coaxial Cables (2)
• 10 MHz Reference Standard
Setup

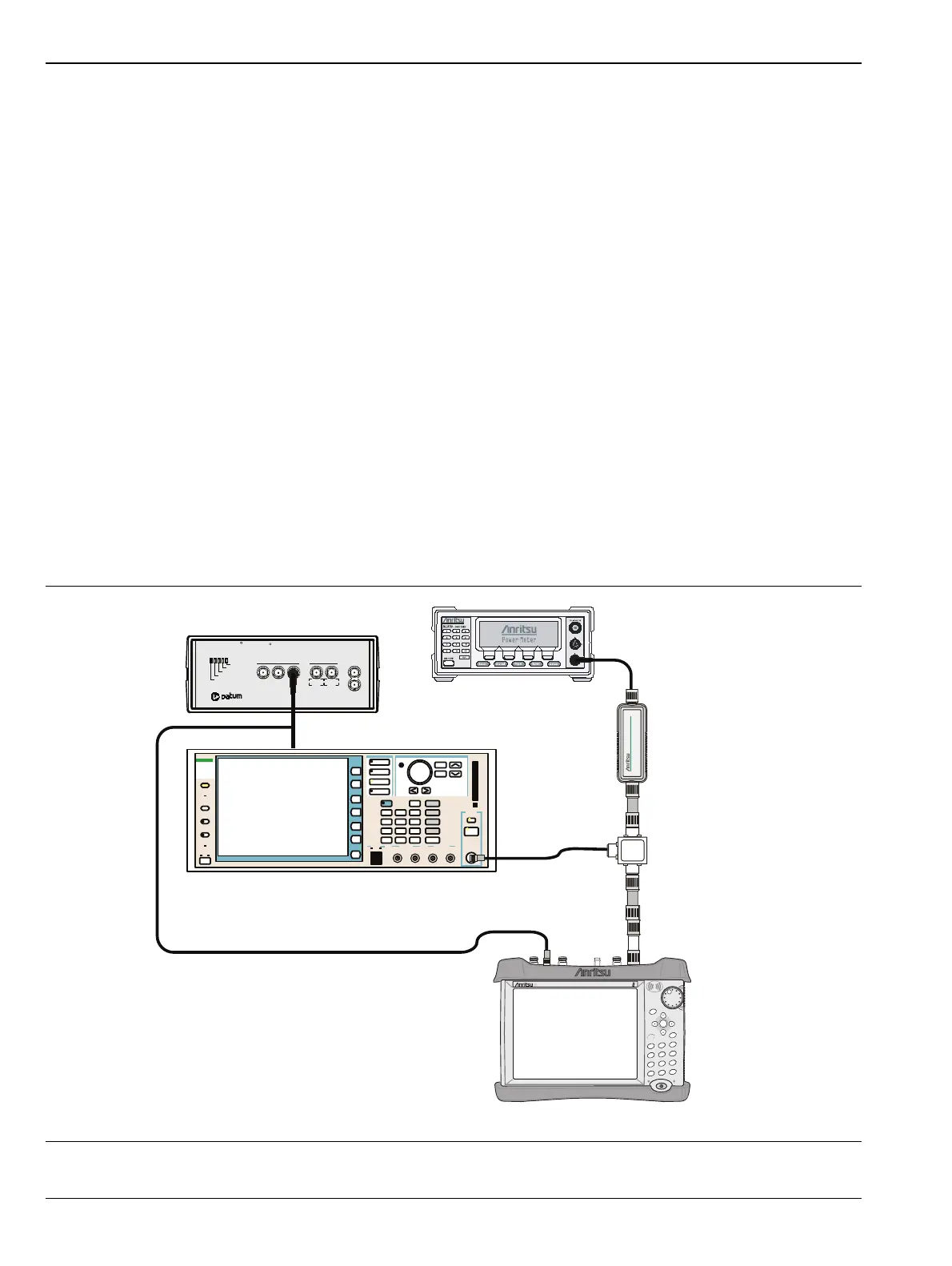

Figure 5-2. Mobile WiMAX Signal Analyzer Option Verification
MG3700A Vector Signal Generator
Function
Ethernet Control Input Modulation Input
Cursor/Edit
RF Output
3
MG3700
Vector Signal
Generator
250kHz-6GHz
ML2438A Power Meter
MA2482D
Power Sensor
1870A
Power Splitter
10 dB Attenuator
10 dB Attenuator
N(m) to N(m) Adaptor
From: 10 MHz Reference
To: S412E Ext Reference
S412E LMR Master
Power Charge
+/-
.
0
3
Sweep
2
Calibrate
1
Preset
6
Limit
5
Trace
4
Measure
9
Mode
8
System
7
File
Shift
Back
Enter
ESC
LMRMaster
S412E
10 MHz Reference
Oscillator Warmup
Oscillator Ready
Failure
1 PPS Sync
1 PPS OUT
1 MHz 5 MHz 10 MH
5 MHz 10 MHz
Sine wave Out AUX
1 PPS IN
Power
TESTIME
PLUS
R
RubiSource T&M
R
