AOC 27B1H2 User Manual

10

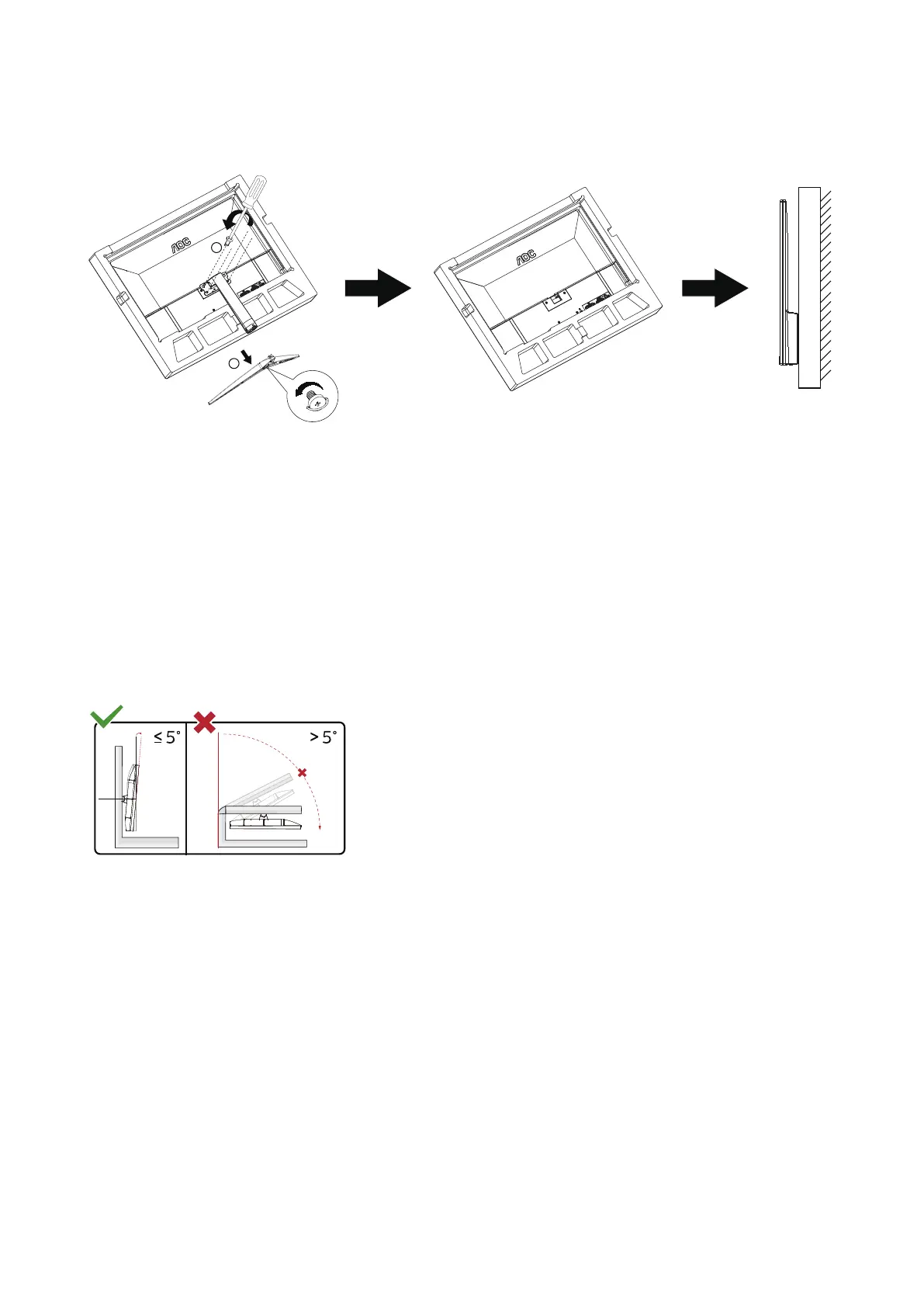

Wall Mounting
Preparing to Install An Optional Wall Mounting Arm.
1
2
This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure.
Follow these steps:
1. Remove the base.
2. Follow the manufacturer’s instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the
monitor.
4. Insert the 4 screws into the holes and tighten.
5. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on
attaching it to the wall.
Noted: VESA mounting screw holes are not available for all models, please check with the dealer or o󰀩cial department of
AOC.
-5°
0° 90°
* Display design may di󰀨er from those illustrated.
WARNING:
1. To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than
-5 degrees.
2. Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.

AOC 27B1H2 Specifications

General

Pixel pitch	0.3114 x 0.3114 mm
Screen shape	Flat
Response time	9 ms
Display diagonal	27 \
Display technology	LED
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
NTSC coverage (typical)	82 %
Viewable size, vertical	336.31 mm
sRGB coverage (typical)	100 %
Contrast ratio (dynamic)	2000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Viewable size, horizontal	597.88 mm
Display brightness (typical)	250 cd/m²
HDMI	Yes
HDMI version	1.4
Headphone out	-
Input current	1.9 A
Power consumption (standby)	- W
Power consumption (typical)	23 W
Tilt angle range	-4 - 21.5 °
Product color	Black
Compatibility	BSMI / KC / KCC / e-Standby / RCM / MEPS / CE / FCC

Weight and Dimensions

Depth (with stand)	199.8 mm
Width (with stand)	613.1 mm
Height (with stand)	460.1 mm
Weight (with stand)	3200 g
