AOC 27B1H2 User Manual

27

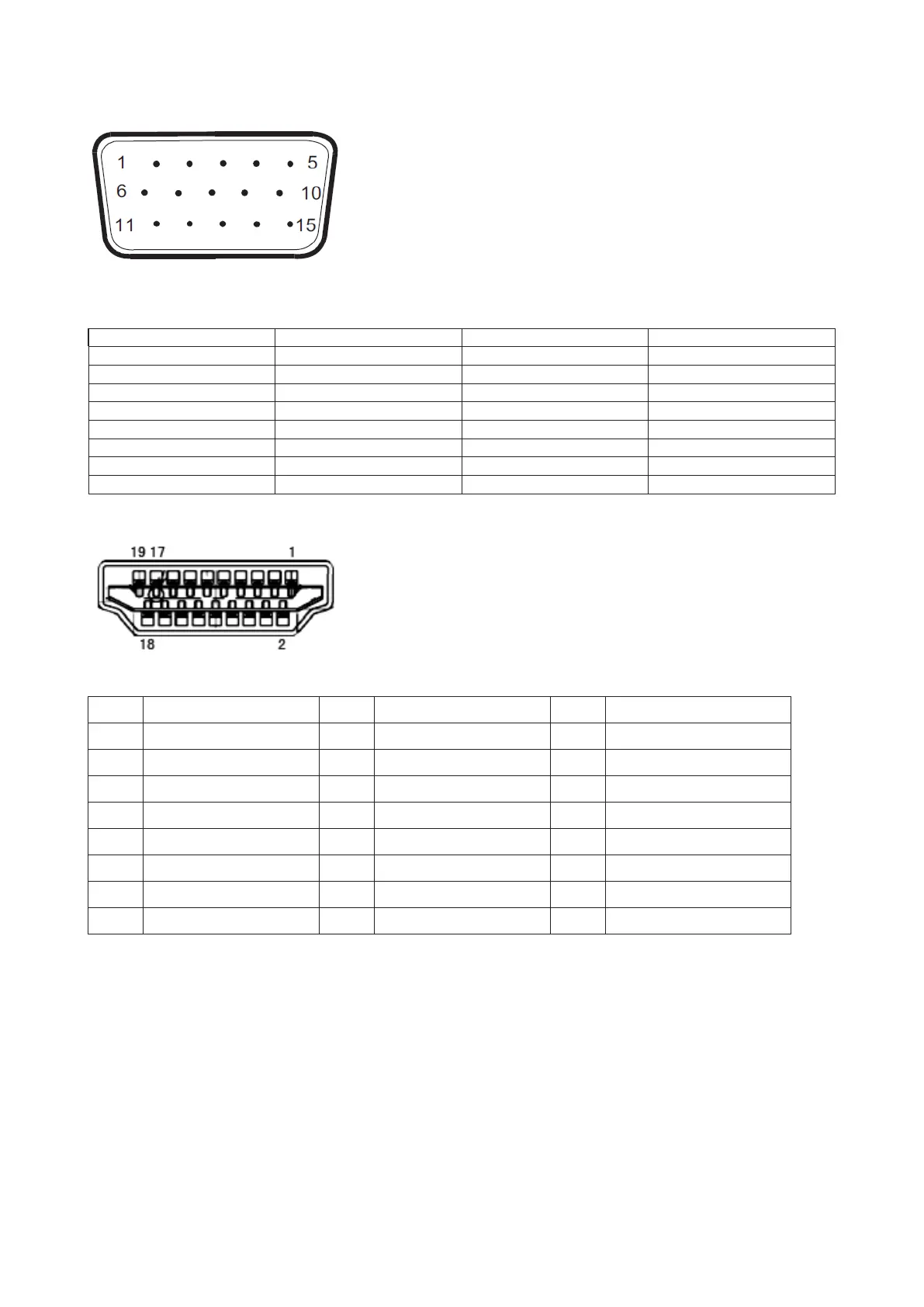

Pin Assignments
15-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1. Video-Red 9 +5V
2. Video-Green 10 Ground
3. Video-Blue 11 N.C.
4. N.C. 12 DDC-Serial data
5. Detect Cable 13 H-sync
6. GND-R 14 V-sync
7.
GND-G 15 DDC-Serial clock
8. GND-B
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA

AOC 27B1H2 Specifications

General

Pixel pitch	0.3114 x 0.3114 mm
Screen shape	Flat
Response time	9 ms
Display diagonal	27 \
Display technology	LED
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
NTSC coverage (typical)	82 %
Viewable size, vertical	336.31 mm
sRGB coverage (typical)	100 %
Contrast ratio (dynamic)	2000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Viewable size, horizontal	597.88 mm
Display brightness (typical)	250 cd/m²
HDMI	Yes
HDMI version	1.4
Headphone out	-
Input current	1.9 A
Power consumption (standby)	- W
Power consumption (typical)	23 W
Tilt angle range	-4 - 21.5 °
Product color	Black
Compatibility	BSMI / KC / KCC / e-Standby / RCM / MEPS / CE / FCC

Weight and Dimensions

Depth (with stand)	199.8 mm
Width (with stand)	613.1 mm
Height (with stand)	460.1 mm
Weight (with stand)	3200 g
