Service Manual AOC 931SW+
13

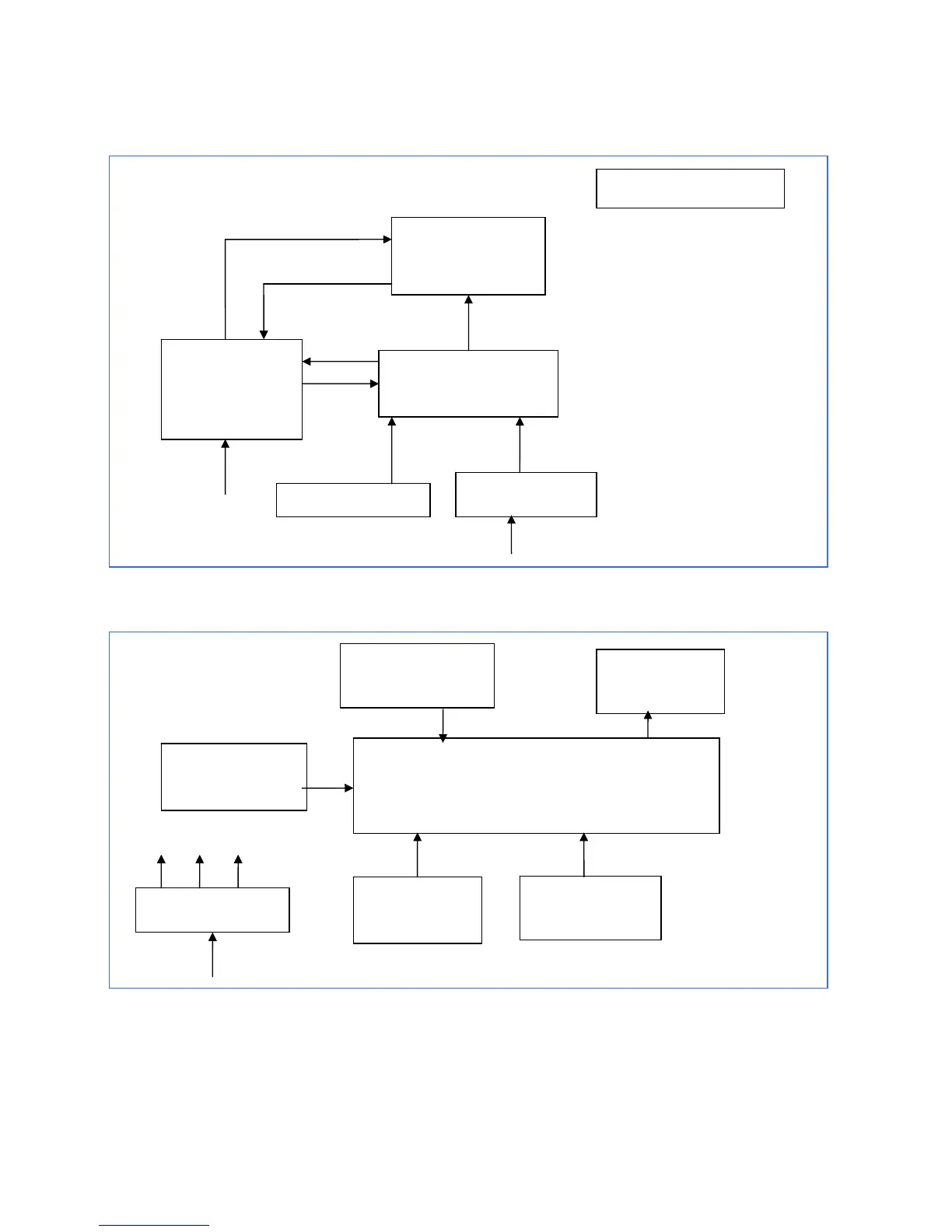

4.Block Diagram
4.1 LCD Block Diagram
4.2 MainBoard Block Diagram
DC-AC inverter
AC-DC
(5V/12V)
Power Board
Main Board
Key board
Computer VGA
2-CCFL Backlight
Panel LVDS
AC supply
90V-264V
LCD Block Diagram
Input signal
Crystal 14.318MHZ
(X401)
Panel Interface
(CN403)
Scalar TSUM1PFR-LF
(Include ADC, OSD, MCU)
(U401)
D-Sub Connector
(CN101)
EEPROM
SST25VF010A
(U402)
H sync
V sync
RGB
Key Board
Control
(CN404)
Voltage converter
5V
5V 3.3V 1.8V
