AOC 931SW series User Manual

Service Manual AOC 931SW+
5

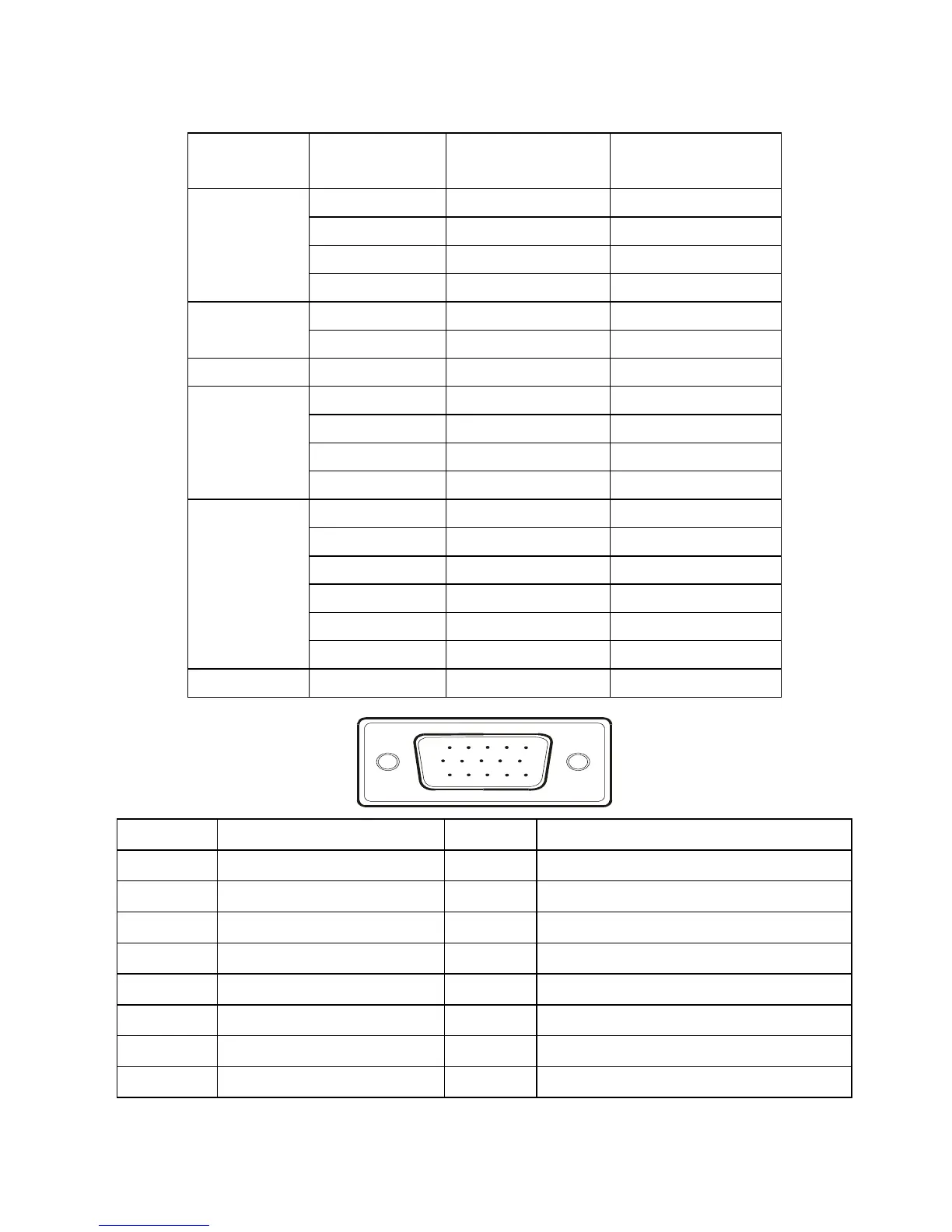

1.2 Factory preset modes
STANDARD RESOLUTION
HORIZONTAL
FREQUENCY
VERTICAL
FREQUENCY
VGA
640×480
31.469kHz 59.94Hz
640×480
35.00kHz 66.66Hz
640×350
37.861kHz 72.80Hz
640 × 480 37.50kHz 75.00Hz
DOS-mode
640 × 480 31.469kHz 70.087Hz
720 × 400 31.469kHz 70.087Hz
Mac-mode 832 ×624 49.725kHz 74.50Hz
SVGA
800 × 600 35.16kHz 56.25Hz
800 × 600 37.879kHz 60.317Hz
800 × 600 48.07kHz 72.188Hz
800 × 600 46.875kHz 75Hz
XGA
1024 × 768 48.363kHz 60Hz
1024 × 768 56.476kHz 70.069Hz
1024 × 768 57.50kHz 72.074Hz
1024 × 768 60.023kHz 75.029Hz
1024 × 768 60.241kHz 74.927Hz
1440 × 900 55.93kHz 60Hz
WSXGA 1440 × 900 70.635kHz 75Hz
1.3 VGA Interface description
15
6
10
11 15
Pin No. Description Pin No. Description
1. Red Input 9. +5VDC
2. Green Input 10. GND
3. Blue Input 11. GND
4. GND 12. SDA
5. Connection detect 13. H Sync
6. Red GND 14. V Sync
7. Green GND 15. SCL
8. Blue GND
