4. Interface description

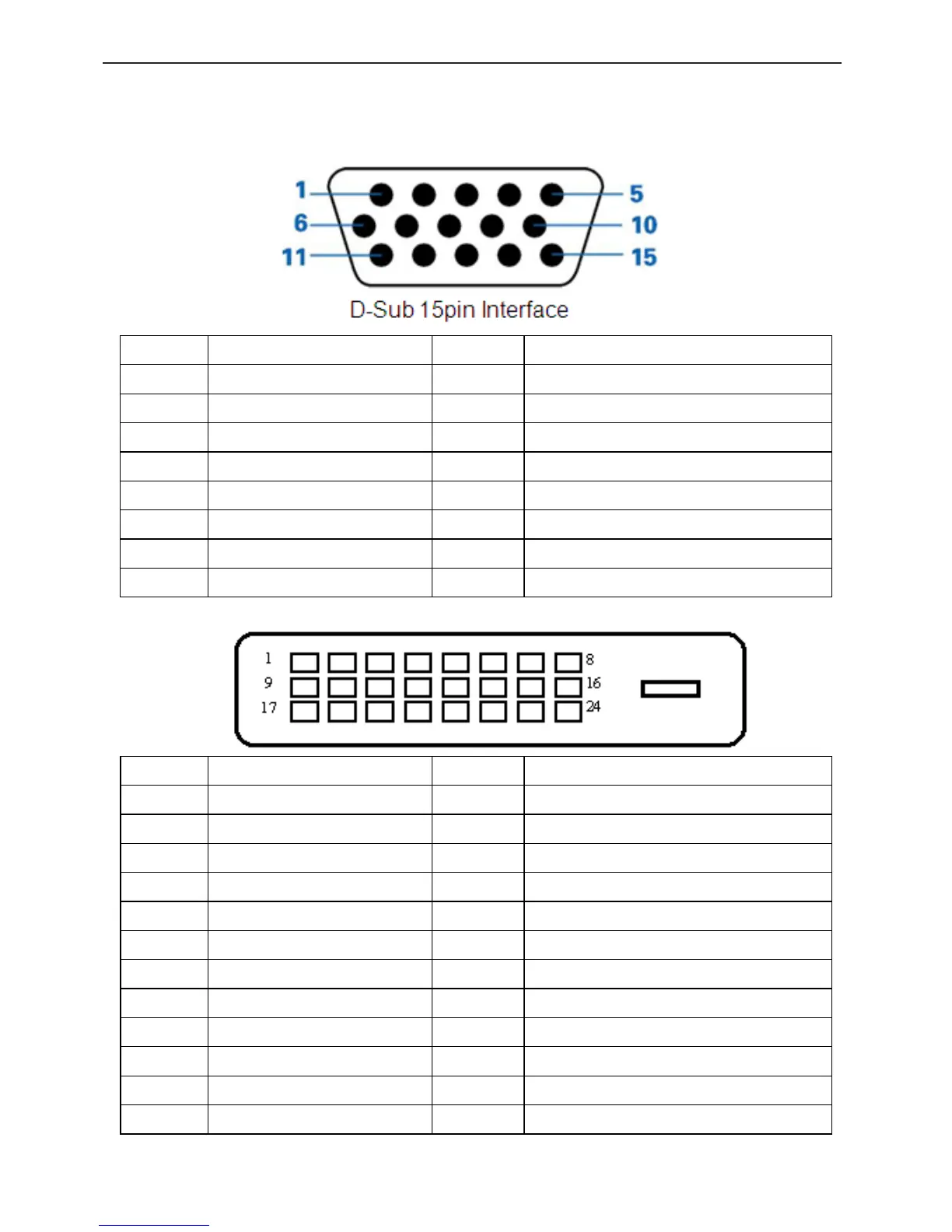

4.1 Pin Assignments
Pin No.
Description
Pin No.
Description
1.
Red Input
9.
+5VDC
2.
Green Input
10.
GND
3.
Blue Input
11.
GND
4.
GND
12.
SDA- DDC-Serial Data
5.
Connection detect
13.
H Sync
6.
Red GND
14.
V Sync
7.
Green GND
15.
SCL- DDC-Serial Clock
8.
Blue GND
Pin No.
Description
Pin No.
Description
1.
TMDS Data 2-
13.
TMDS Data 3+
2.
TMDS Data 2+
14.
+5V Power
3.
TMDS Data 2/4 Shied
15.
Ground (for +5V)
4.
TMDS Data 4-
16.
Hot Plug Detect
5.
TMDS Data 4+
17.
TMDS Data 0+
6.
DDC Clock
18.
TMDS Data 0-
7.
DDC Data
19.
TMDS Data 0/5 Shield
8.
N.C.
20.
TMDS Data 5-
9.
TMDS Data 1-
21.
TMDS Data 5+
10.
TMDS Data 1+
22.
TMDS Clock Shield
11.
TMDS Data 1/3 Shield
23.
TMDS Clock+
12.
TMDS Data 3-
24.
TMDS Clock-
