AOC G2460PQU Service Manual

Service Manual G2460PQU
18

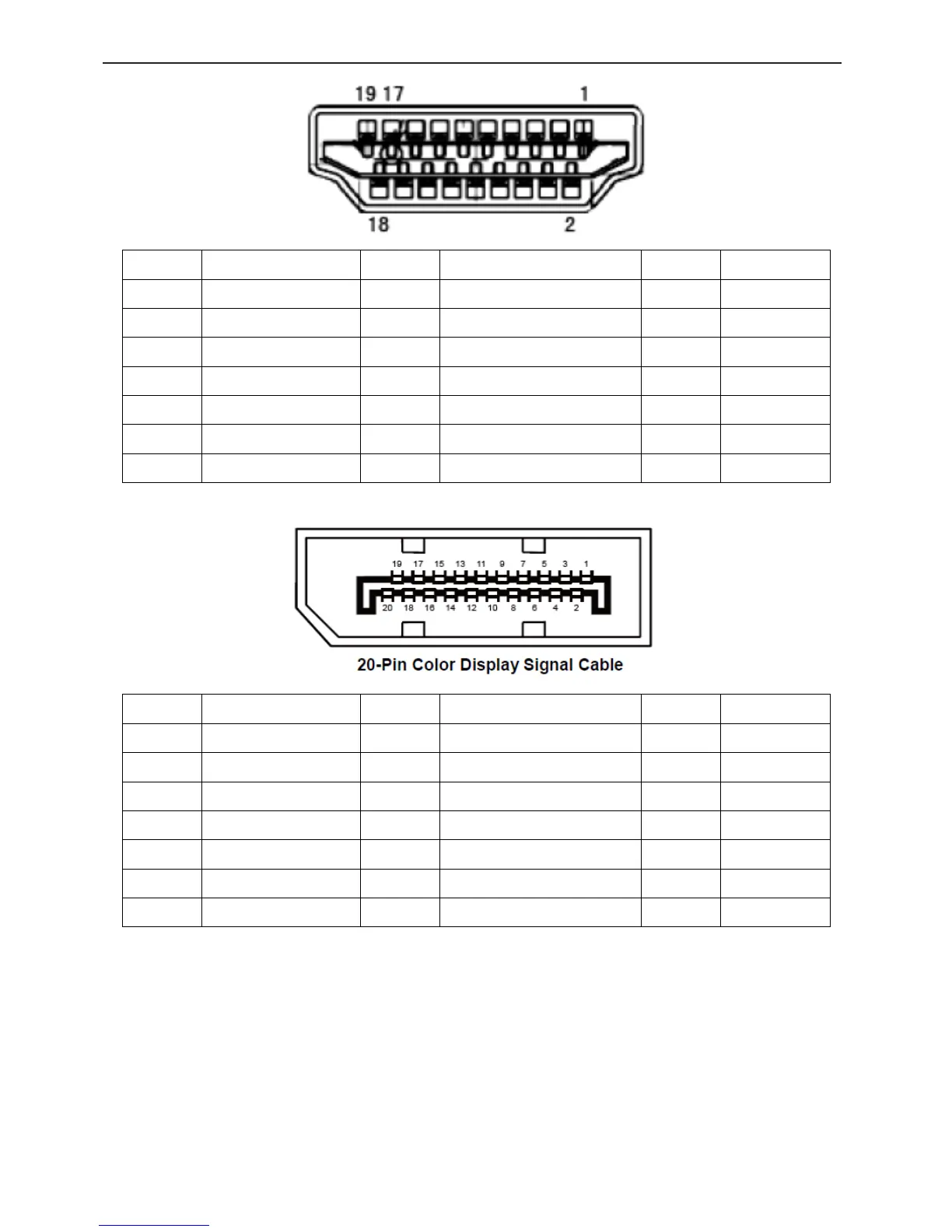

Pin No.
Description
Pin No.
Description
Pin No.
Description
1
TMDS Data2+
8
TMDS Data0 Shield
15
SCL
2
TMDS Data2 Shield
9
TMDS Data0–
16
SDA
3
TMDS Data2–
10
TMDS Clock+
17
DDC/CEC
Ground
4
TMDS Data1+
11
TMDS Clock Shield
18
+5 V Power
5
TMDS Data1 Shield
12
TMDS Clock–
19
Hot Plug
Detect
6
TMDS Data1–
13
CEC
7
TMDS Data0+
14
Reserved (N.C. on device)
Pin No.
Description
Pin No.
Description
Pin No.
Description
1
ML_Lane 3 (n)
8
GND
15
AUX_CH(p)
2
GND
9
ML_Lane 1 (p)
16
GND
3
ML_Lane 3 (p)
10
ML_Lane 0 (n)
17
DDC/CEC
Ground
4
ML_Lane 2 (n)
11
GND
18
+5 V Power
5
GND
12
ML_Lane 0 (p)
19
Hot Plug
Detect
6
ML_Lane 2 (p)
13
CONFIG1
20
7
ML_Lane 1 (n)
14
CONFIG2
4.2 Plug and Play
Plug & Play DDC2B Feature
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It
allows the monitor to inform the host system of its identity and, depending on the level of DDC used,
communicate additional information about its display capabilities.
The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID
information over the DDC2B channel.

AOC G2460PQU Specifications

General

3D	No
Panel type	TN
Color depth	6 bit
Pixel pitch	0.276 x 0.276 mm
Aspect ratio	16:9
Product type	PC monitor
Backlight type	W-LED
Pixel frequency	330 MHz
Display diagonal	23.6 \
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Viewable size, vertical	298.89 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	531.36 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
AC adapter included	Yes
Mean time between failures (MTBF)	50000 h
HDMI version	1.4
USB hub version	2.0
DisplayPort version	1.1
Component video (YPbPr/YCbCr) in	0
USB Type-A downstream ports quantity	4
Tilt angle range	-5 - 22 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Thin client installed	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.22 W
Power consumption (standby)	0.31 W
Power consumption (typical)	22.7 W
Certification	ISO
Product color	Black
Market positioning	Gaming
Package weight	8550 g
Cables included	Audio (3.5mm), DVI, USB, VGA
Doesn't contain	BRF, PVC
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (without stand)	52.95 mm
Width (without stand)	565.4 mm
Height (without stand)	342.9 mm
Weight (without stand)	6540 g
