5. Panel Feature
This specification applies to the 24 inch-FHD color a-Si TFT-LCD Module M240HW01. The display
supports the FDH-1920(H) X 1080(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). the
light source of this TFT-LCD module is W-LED. All input signals are 4-channel LVDS interface and this
module doesn’t contain a driver for backlight.

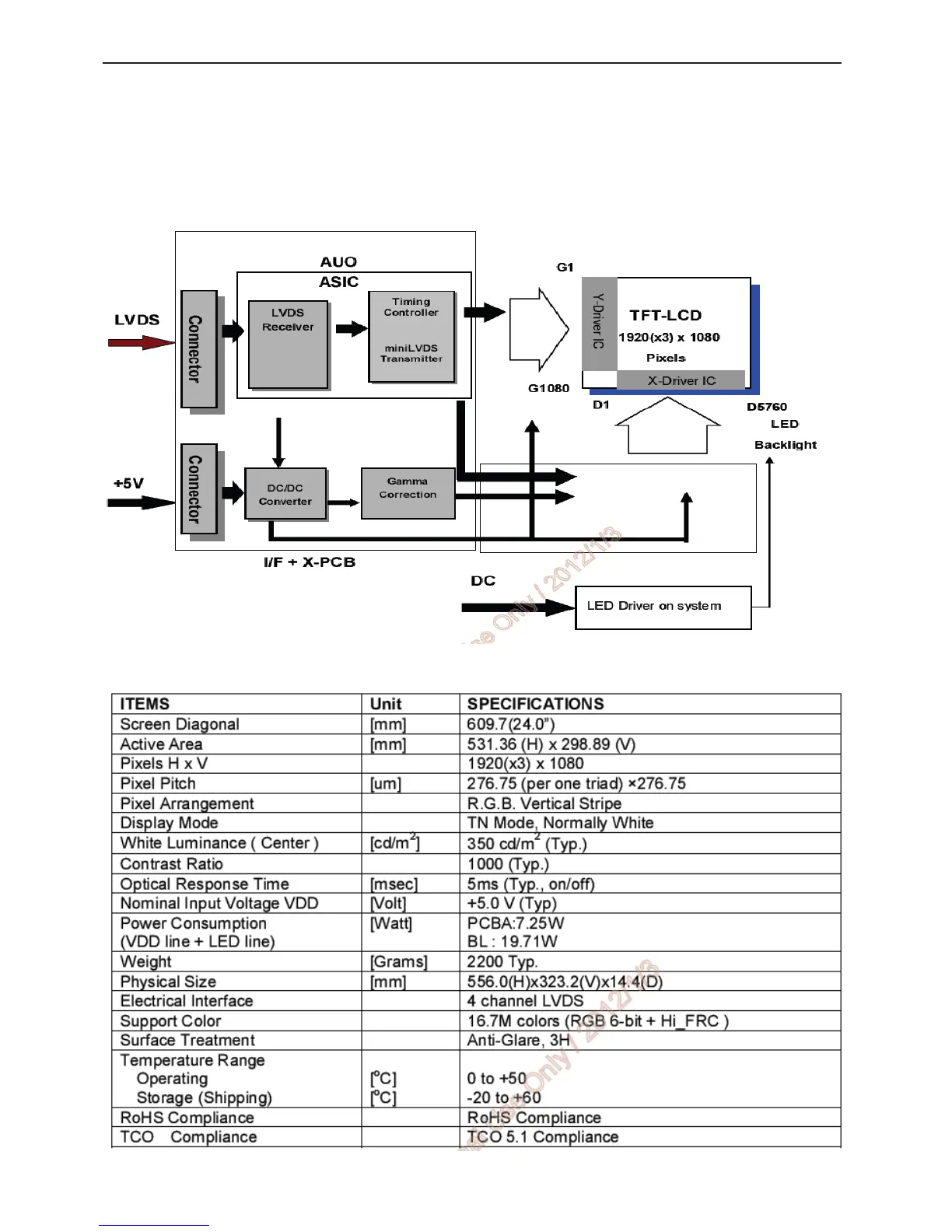

5.1 Panel Block Diagram
5.2 General Features
