Service Manual G2460PQU

Key Board---

OSD no working

9.2 Equipments and Tools Requirement

1. Multi-meter.

2. Oscilloscope.

3. Pattern Generator.

4. DDC Tool with and Compatible Computer.

5. Alignment Tool.

6. LCD Color Analyzer.

7. Service Manual.

8. User Manual.

If the monitor fails to operate correctly, please follow the steps below for a possible solution.

1. Perform the adjustments described in OPERATION THE MONITOR, depending on the problem you

have .If the monitor dose not get a picture ,skip to 2.

2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE

MONITOR or if the problem persists.

3. If you are experiencing a problem which is not described below or you cannot correct the problem,

discontinue using the monitor and contact your dealer or service center for further assistance.

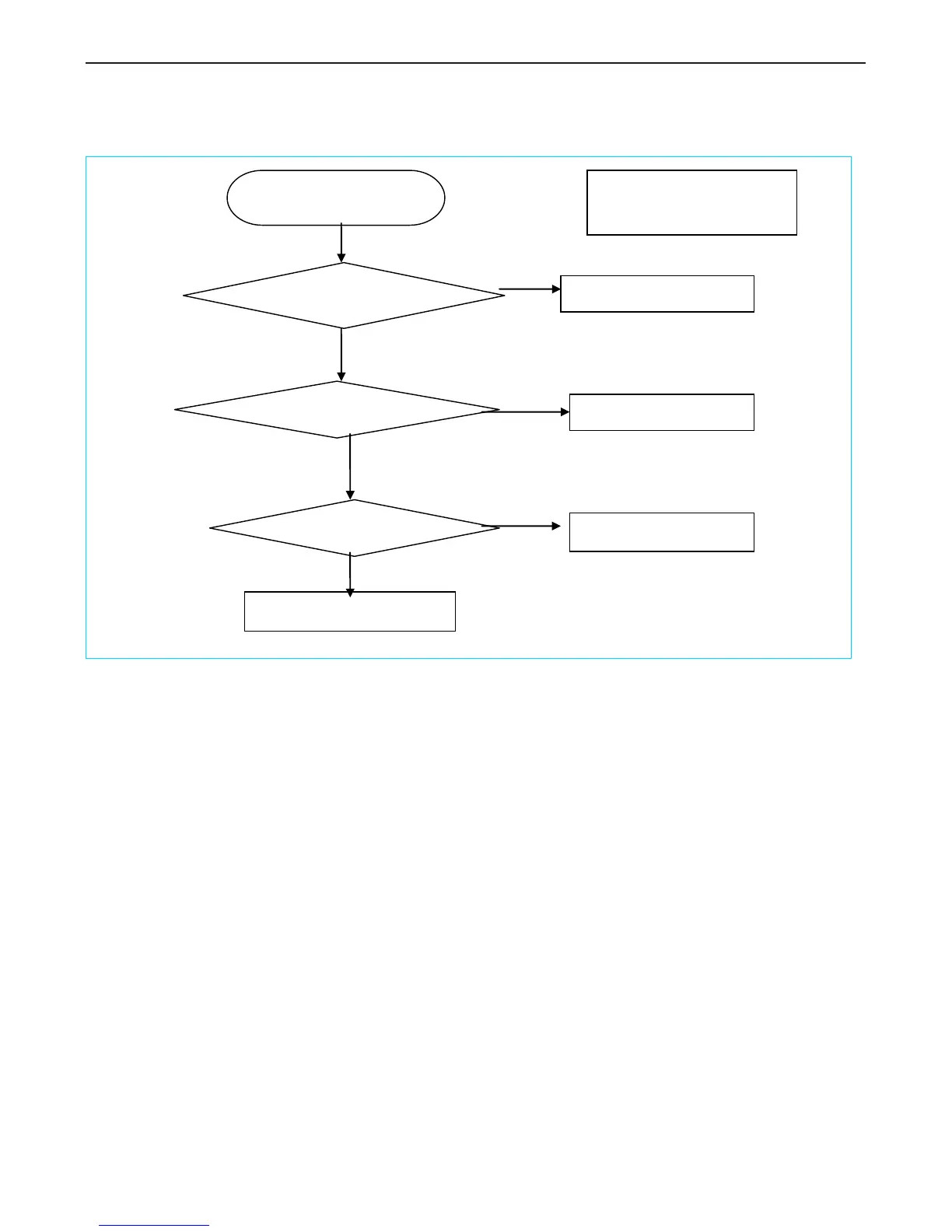

Check flow chart

For the key board

OSD is unstable or not

working

Is Key Pad Board connecting

normally

Is Button Switch normally

Is Key Pad Board normally

Check Main Board

Connect Key Pad Board

Replace Button Switch

Replace Key Pad Board

Other manuals for AOC G2460PQU

Questions and Answers:

Need help?

Do you have a question about the AOC G2460PQU and is the answer not in the manual?

General

3D	No
Panel type	TN
Color depth	6 bit
Pixel pitch	0.276 x 0.276 mm
Aspect ratio	16:9
Product type	PC monitor
Backlight type	W-LED
Pixel frequency	330 MHz
Display diagonal	23.6 \
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Viewable size, vertical	298.89 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	531.36 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
AC adapter included	Yes
Mean time between failures (MTBF)	50000 h
HDMI version	1.4
USB hub version	2.0
DisplayPort version	1.1
Component video (YPbPr/YCbCr) in	0
USB Type-A downstream ports quantity	4
Tilt angle range	-5 - 22 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Thin client installed	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.22 W
Power consumption (standby)	0.31 W
Power consumption (typical)	22.7 W
Certification	ISO
Product color	Black
Market positioning	Gaming
Package weight	8550 g
Cables included	Audio (3.5mm), DVI, USB, VGA
Doesn't contain	BRF, PVC
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
