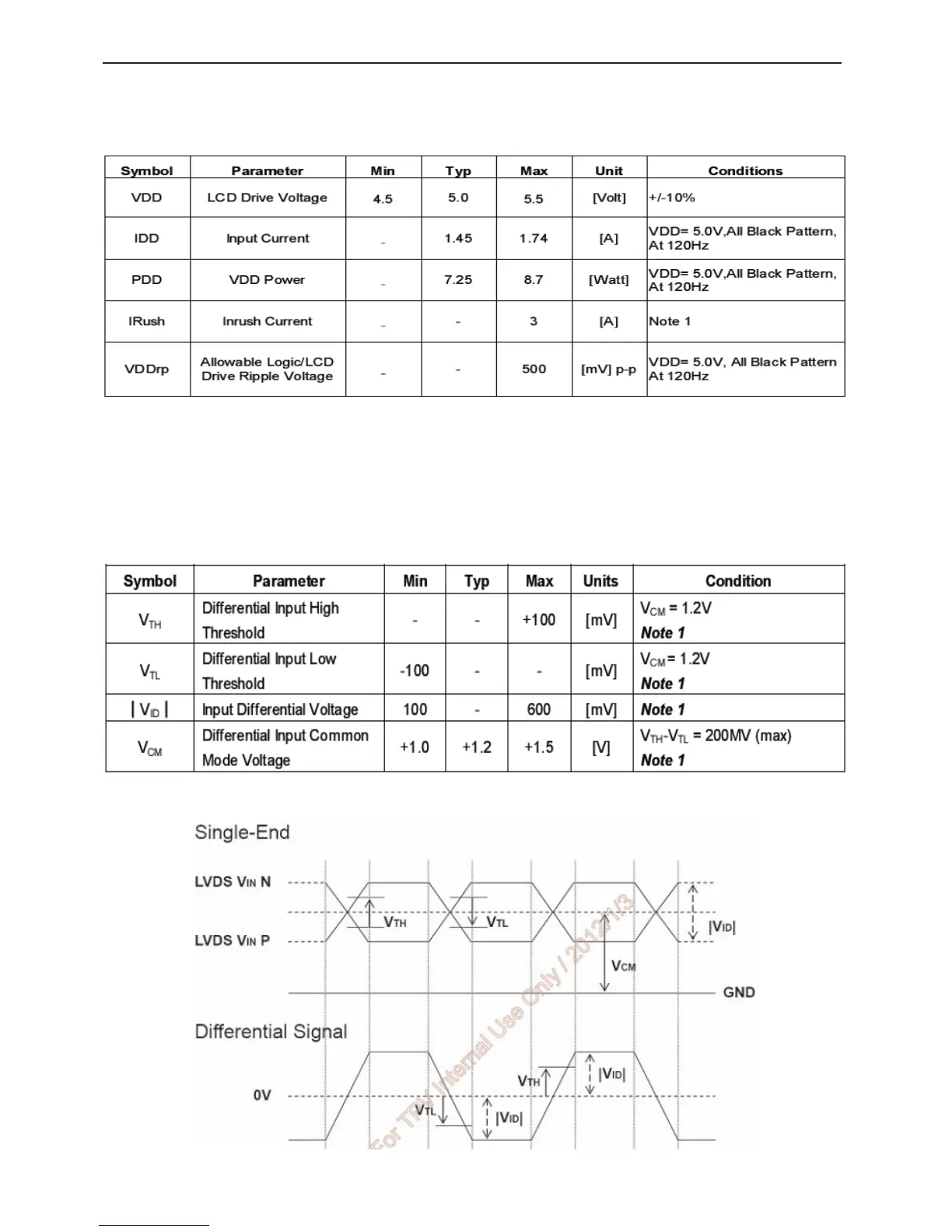

5.4 Electrical Characteristics
1) Power Specification
Input power specifications are as following:
2) Signal Electrical characteristics
Input signals shall be low or Hi-Z state when VDD is off. Please refer to specifications of
SN75LVDS82DGG (Texas instruments) in detail.
⑴ DC Characteristics of each signal are as following:
Note: LVDS Signal waveform
