AOC G2460PQU Service Manual

Service Manual G2460PQU
8

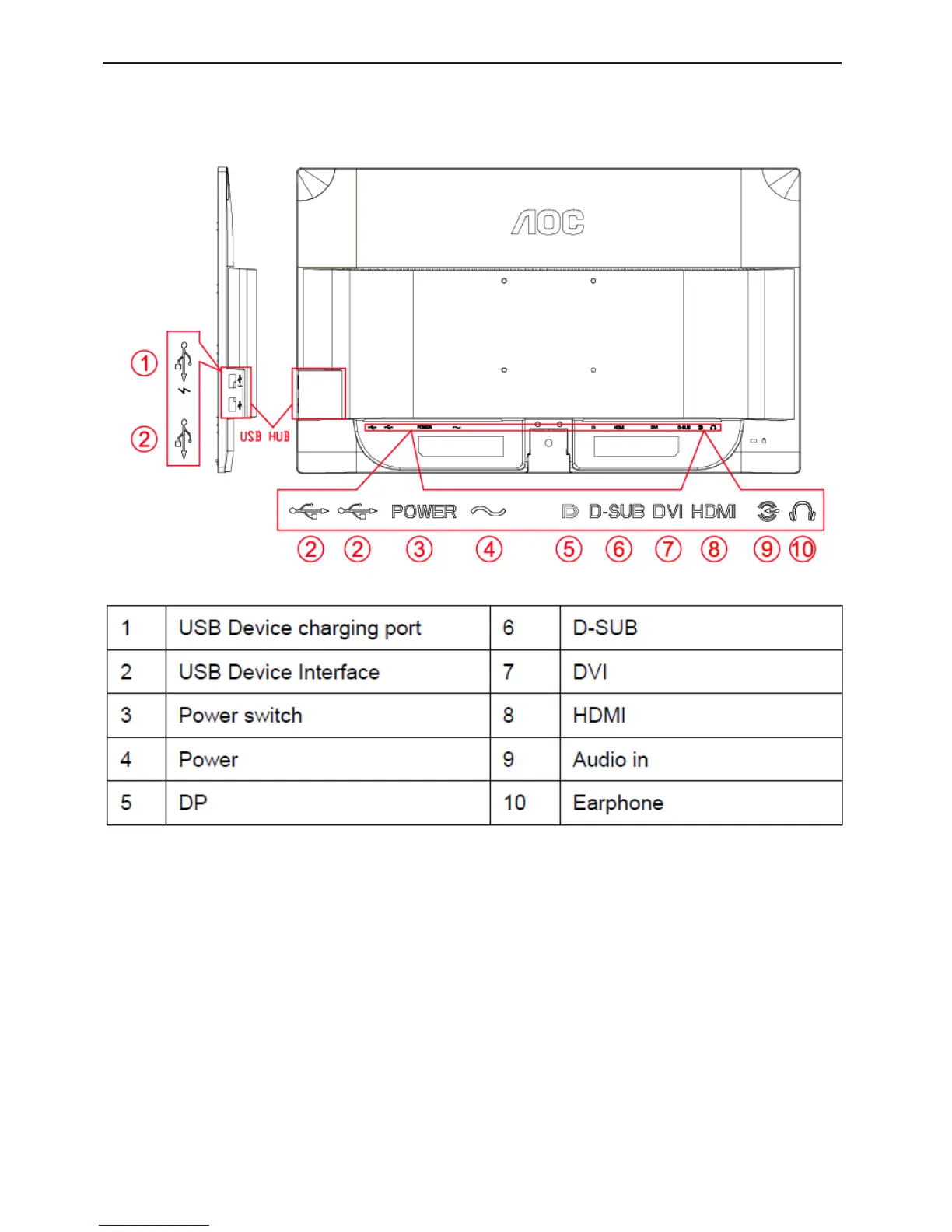

2.4 Connecting the Monitor
Cable Connections In Back of Monitor and Computer:
To protect equipment, always turn off the PC and LCD monitor before connecting.
1. Connect the power cable to the AC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer‟s D-Sub port.
3. Connect one end of the DVI cable to the back of the monitor and connect the other end to the
computer‟’s DVI port.
4. (Optional – Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of
the monitor and connect the other end to the computer‟s HDMI port.
5. (Optional –Requires a video card with Audio port) - Connect one end of the Audio cable to the back of
the monitor and connect the other end to the computer‟s Audio port.

AOC G2460PQU Specifications

General

3D	No
Panel type	TN
Color depth	6 bit
Pixel pitch	0.276 x 0.276 mm
Aspect ratio	16:9
Product type	PC monitor
Backlight type	W-LED
Pixel frequency	330 MHz
Display diagonal	23.6 \
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Viewable size, vertical	298.89 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	531.36 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
AC adapter included	Yes
Mean time between failures (MTBF)	50000 h
HDMI version	1.4
USB hub version	2.0
DisplayPort version	1.1
Component video (YPbPr/YCbCr) in	0
USB Type-A downstream ports quantity	4
Tilt angle range	-5 - 22 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Thin client installed	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.22 W
Power consumption (standby)	0.31 W
Power consumption (typical)	22.7 W
Certification	ISO
Product color	Black
Market positioning	Gaming
Package weight	8550 g
Cables included	Audio (3.5mm), DVI, USB, VGA
Doesn't contain	BRF, PVC
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (without stand)	52.95 mm
Width (without stand)	565.4 mm
Height (without stand)	342.9 mm
Weight (without stand)	6540 g
