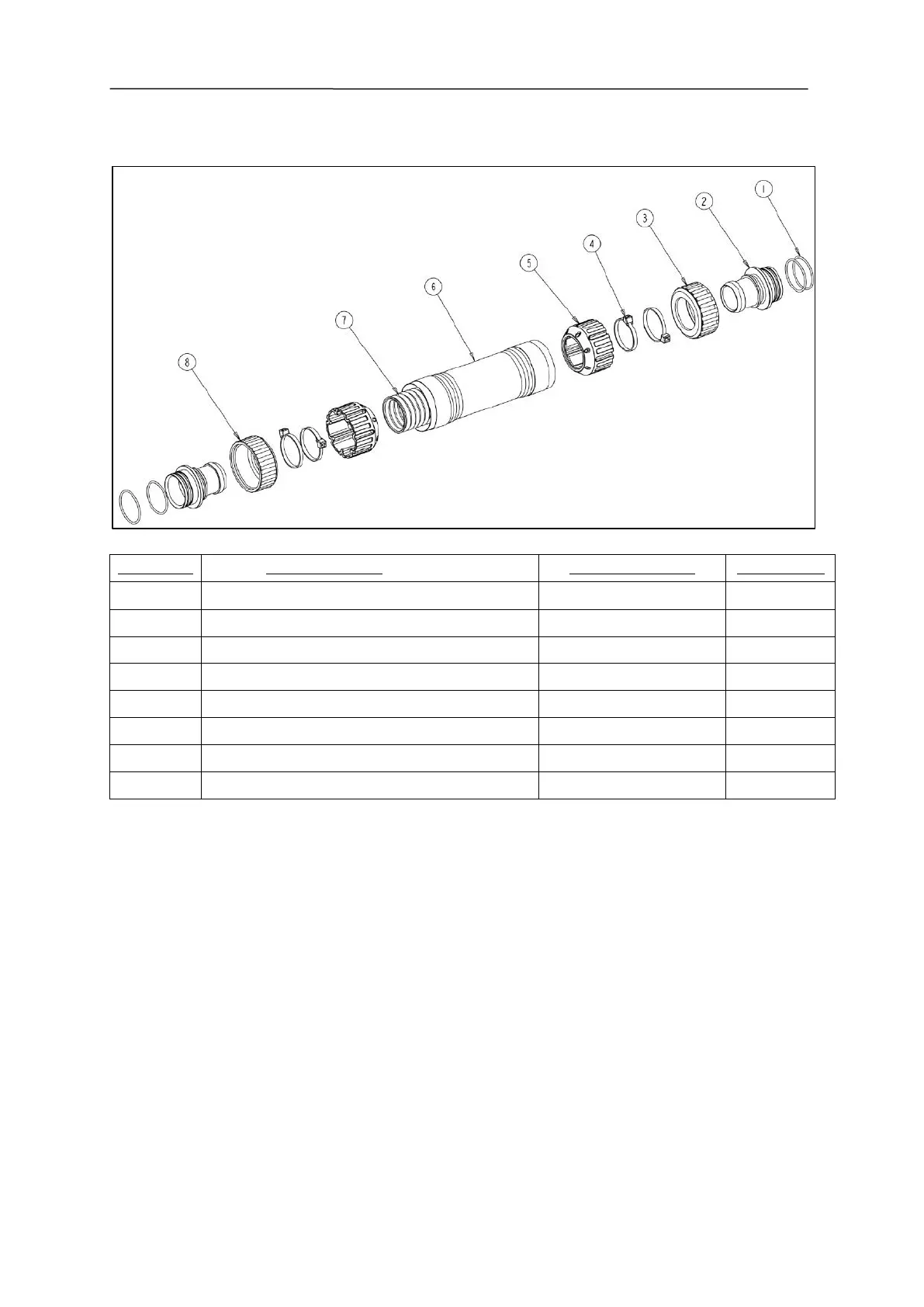

2.5 RB07B/02 Scrubber Canister Inhale Hose Assembly – New Ty-wrap
Version
NUMBER
DESCRIPTION
PART NUMBER
QUANTITY
1
O-ring BS-027-N70
BS-027-N70
4
2
Swivel stem
RB12-04
2
3
Inhale locking ring - square
RB12-03-IN
1
4
Curved Ty-wrap
RBCT1
4
5
Curved Ty-wrap cover
RB12-02-A
2
6
Inhale hose cover
RB08-A
1
7
Convoluted hose
RB07B
1
8
Exhale locking ring
RB12-03
1
