AP Diving AP50 - Shortening the Hose on the Snap Connector End

AP Diving Ltd. Medium Pressure and Convoluted Hose Shortening Instructions
Page 27 of 38
5.4 Shortening the hose on the snap connector end
Shortening the Auto Air MP hose on the snap connector end is done essentially the same as
described in paragraphs 4.1 through 4.6:
- Instead of unscrewing the hose end from the hose collar, as described in paragraph
4.2, you now unscrew the complete snap connector part from the hose collar.
- Older type snap connector: use a 19 and 22 mm spanner.
- New type snap connector: use a 17 and 22 mm spanner.
- Unscrew anti-clock-wise.

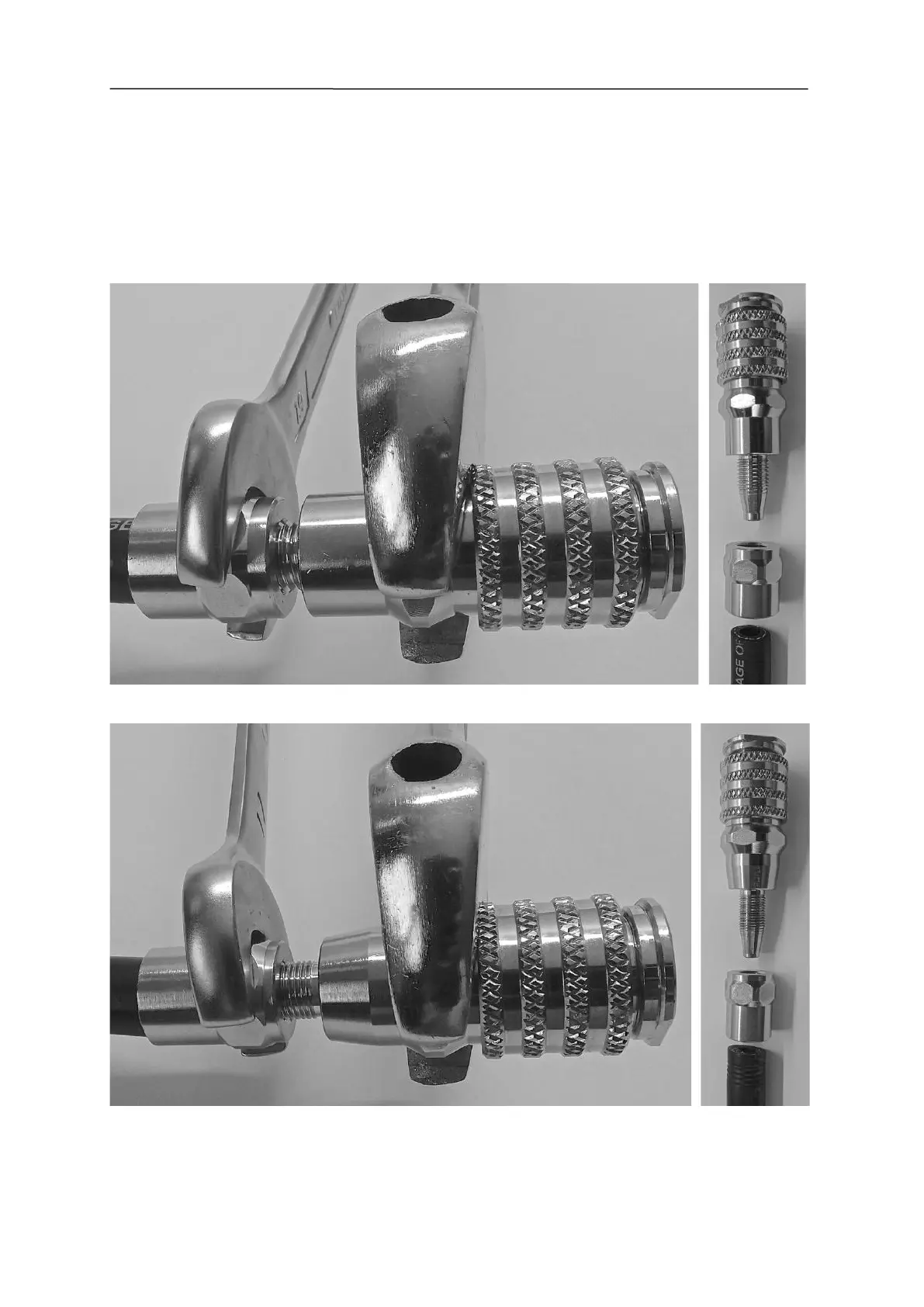

Unscrewing the older type snap connector. Notice the straight diameter.
Unscrewing the new type snap connector. Notice the chamfered diameter.
