AP Diving AP50 - Refit the Two Split Inner Hose Clamp Halves Onto the Hose

AP Diving Ltd. Medium Pressure and Convoluted Hose Shortening Instructions
Page 36 of 38

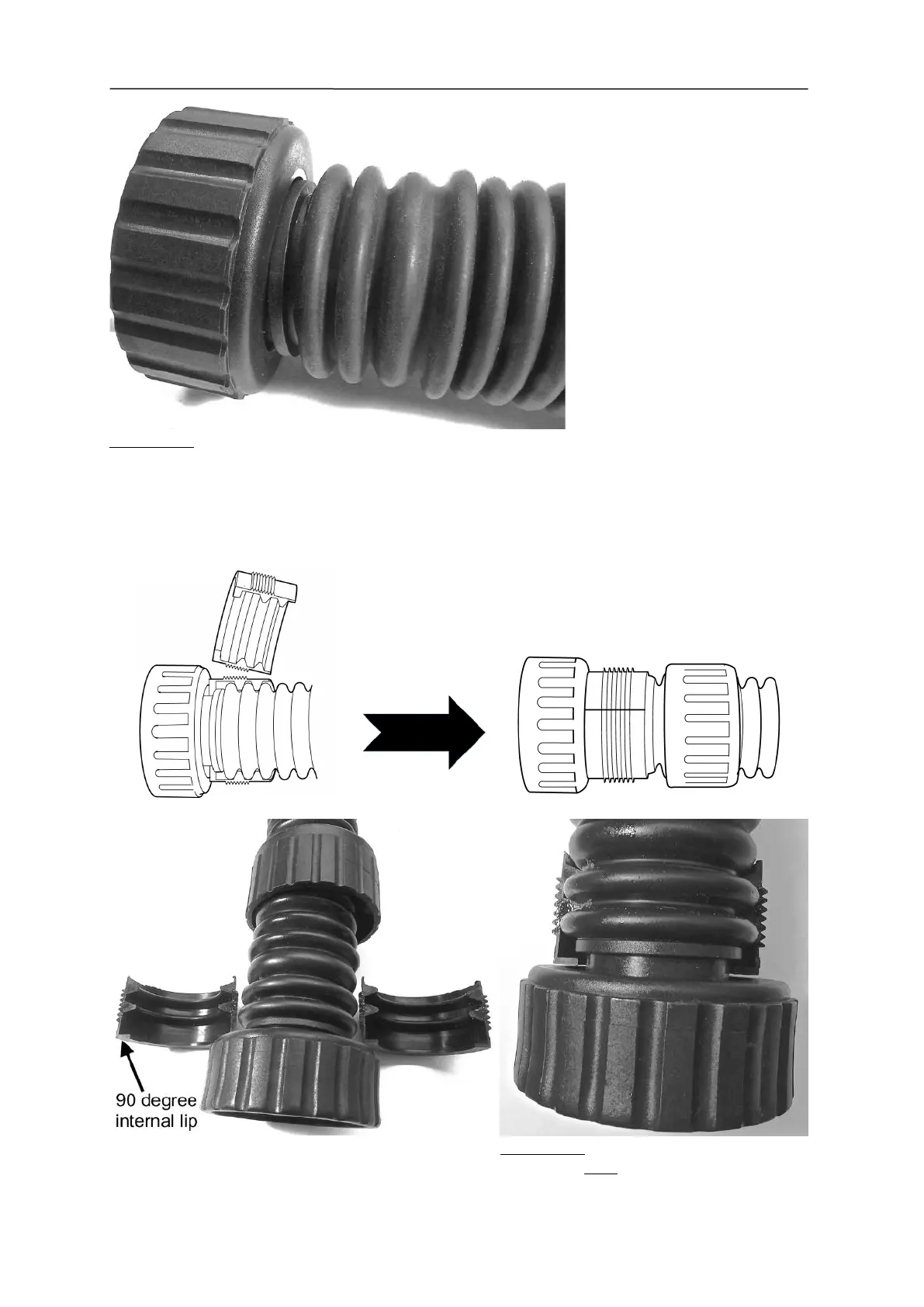

CORRECT: first convolution sits AGAINST the flange of the swivel stem, NOT over it.
7.7 Refit the two split inner hose clamp halves onto the hose
- The threaded two-part split inner hose clamp has a 90-degree internal lip that has to
hook OVER the flange of the swivel stem.
CORRECT: the 90-degree lip of the split
ring hooks over the flange of the stem
