12
3.0 Presentation
3.3 Battery Pack
1
Battery Pack
The Battery Pack contains four series connected nominal 12 Vdc high capacity sealed
lead-acid batteries. Built-in ultra-low power consumption battery pack voltage and
current monitoring electronics report pack status to the UPS. To conserve battery
capacity, the internal electronics are shut down when the battery communications
cable is not connected to the UPS, or when the UPS is not running.
2
INPUT battery communications jack
This input accepts battery status signals from the OUTPUT of another Battery Pack in
the system. No connection is made to this jack in a single Battery Pack system.
3
OUTPUT battery communications jack
The Battery Pack sends status signals to the UPS or to the INPUT of another Battery
Pack (in a multiple Battery Pack system) from this jack.

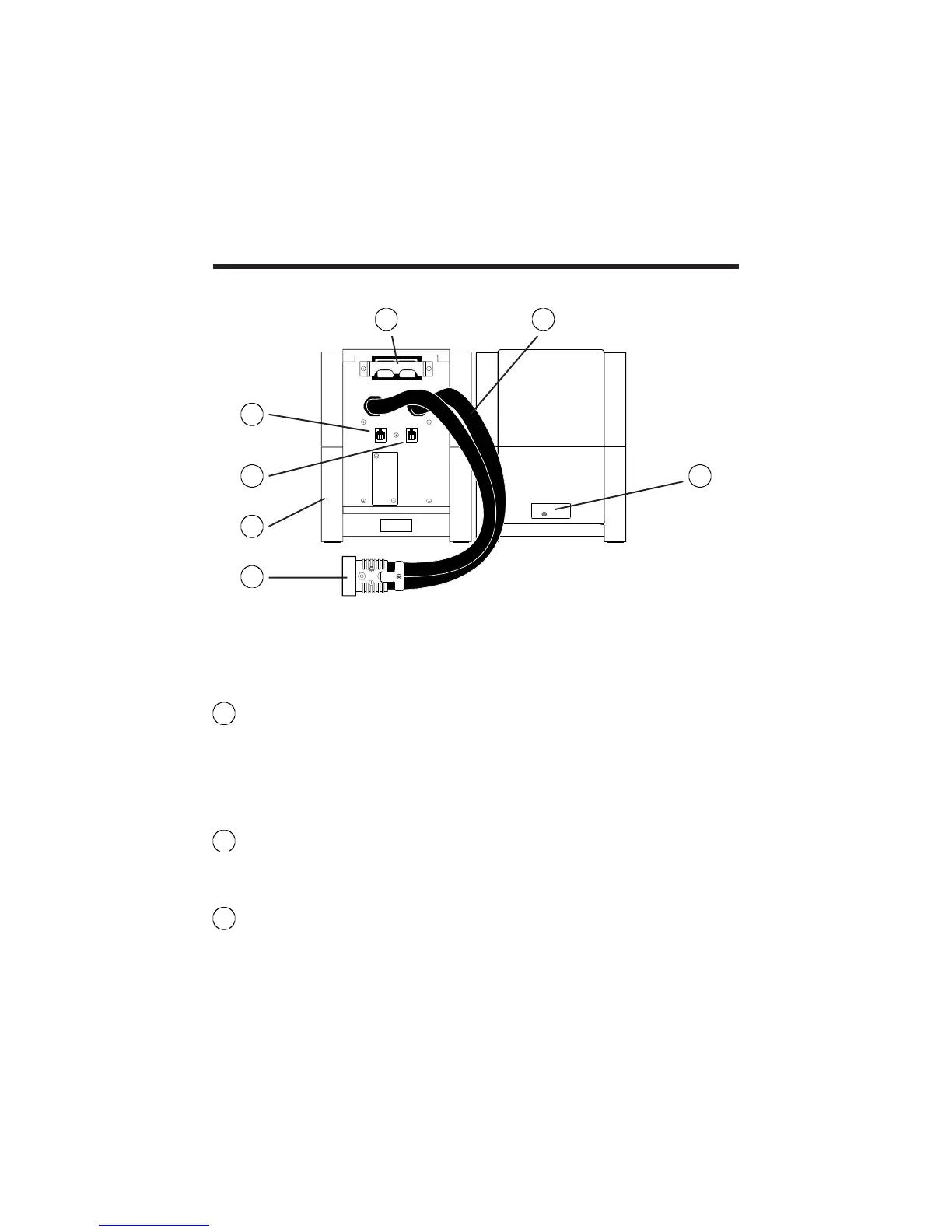

Rear view Front view
1
2
7
3
4 5
6
