APC RT User Manual

4
B

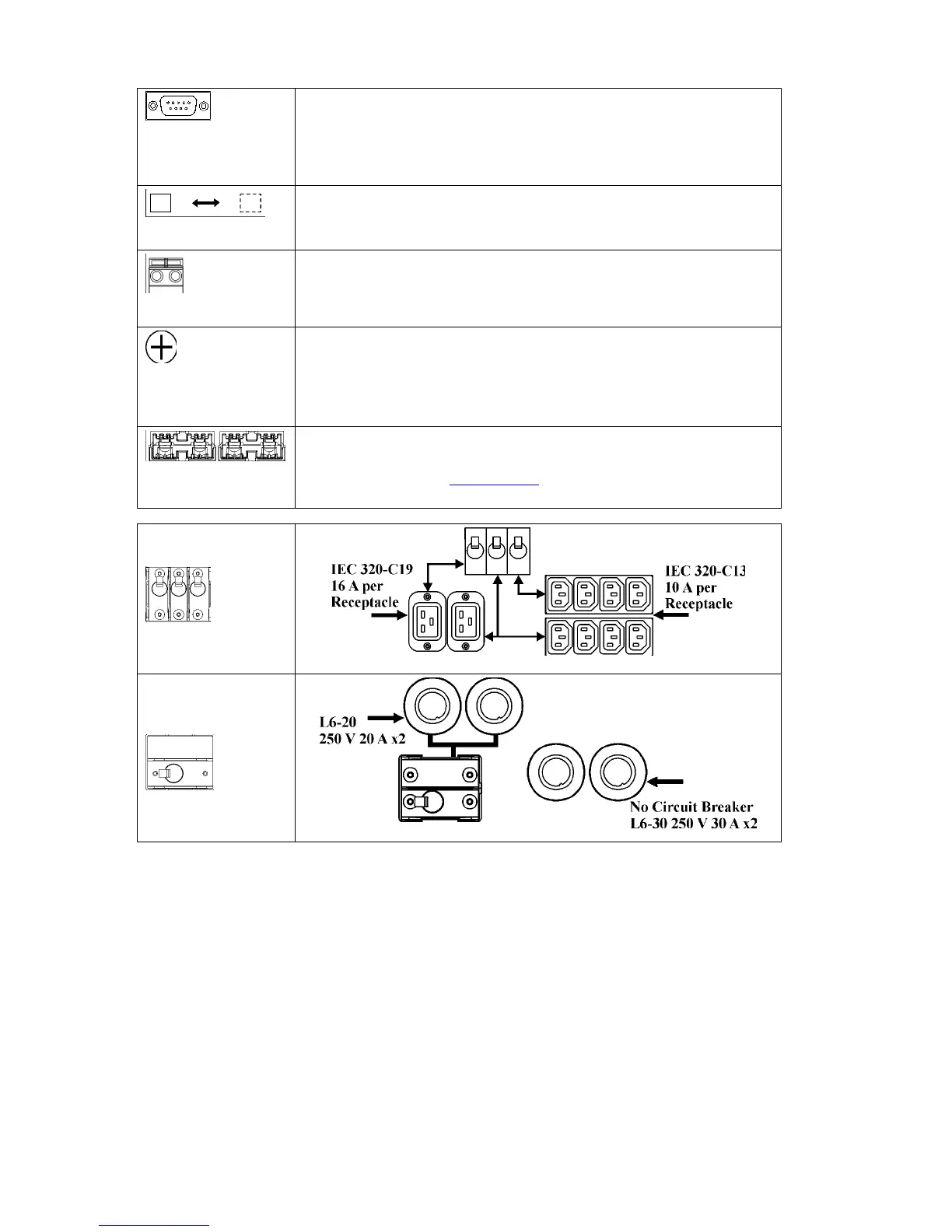

ASIC CONNECTORS
serial com
Power management software and interface kits can be used with the UPS.
Use only interface kits supplied or approved by APC.
Any other serial interface cable will be incompatible with the UPS
connector.
normal bypass
Manual bypass enables the user to manually put connected equipment into
bypass mode.
EPO terminal
Emergency Power Off terminal allows the user to connect the UPS to the
central EPO system.
TVSS screw
The UPS features a transient voltage surge-suppression (TVSS) screw for
connecting the ground lead on surge suppression devices such as telephone
and network line protectors.
When connecting grounding cable, disconnect the unit from the utility
power outlet.
external battery
pack connector
Optional external battery packs provide extended runtime during power
outages. These units support up to ten external battery packs.
See the APC Web site, www.apc.com
for the information on the external
battery pack, SURT192XLBP.
5000/6000 VA
XLI models
output circuit
breakers
3000/5000/6000 VA
XLJ/XLT/XLTW
models
output circuit
breaker

APC RT Specifications

General

Nominal Output Voltage	230V
Topology	Double Conversion Online
Input Voltage Range	160 - 286 V
Nominal Input Voltage	230V
Transfer Time	0 ms
Emergency Power Off (EPO)	Yes
Output Frequency	50/60 Hz +/- 3 Hz
Wave Type	Sine wave
Battery Type	Sealed Lead-Acid (SLA)
Interface Ports	USB
Audible Alarm	Alarm when on battery
Type	UPS
Form Factor	Rack/Tower convertible
Dimensions	432 x 482 x 89 mm (17 x 19 x 3.5 in)
