OPERATION
Load

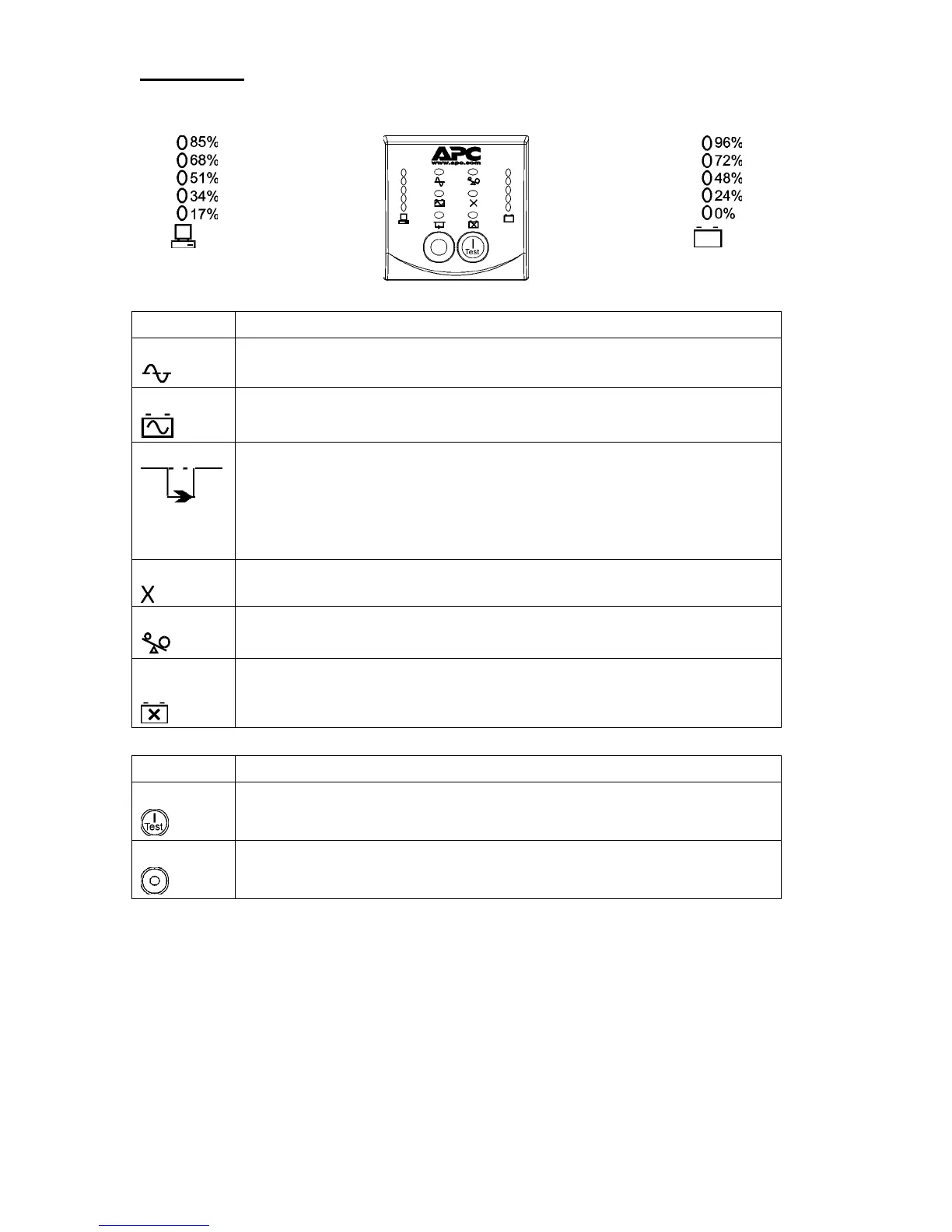

SMART-UPS RT FRONT DISPLAY
Battery Charge
Indicator Description
Online
The Online LED illuminates when the UPS is drawing utility power and performing
double conversion to supply power to connected equipment.
On Battery
The UPS is supplying battery power to the connected equipment.
Bypass
The Bypass LED illuminates indicating that the UPS is in bypass mode. Utility
power is sent directly to connected equipment during bypass mode operation.
Bypass mode operation is the result of an internal UPS fault, an overload condition
or a user initiated command either through an accessory or the manual bypass
switch. Battery operation is not available while the UPS is in bypass mode. Refer to
Troubleshooting in this manual.
Fault
The UPS detects an internal fault.
Refer to Troubleshooting in this manual.
Overload
An overload condition exists. See Troubleshooting.
Replace
Battery
The battery is disconnected or must be replaced. See Troubleshooting.
Feature Function
Power On
Press this button to turn on the UPS. (See below for additional capabilities.)
Power Off
Press this button to turn off the UPS.

APC RT Specifications

General

Nominal Output Voltage	230V
Topology	Double Conversion Online
Input Voltage Range	160 - 286 V
Nominal Input Voltage	230V
Transfer Time	0 ms
Emergency Power Off (EPO)	Yes
Output Frequency	50/60 Hz +/- 3 Hz
Wave Type	Sine wave
Battery Type	Sealed Lead-Acid (SLA)
Interface Ports	USB
Audible Alarm	Alarm when on battery
Type	UPS
Form Factor	Rack/Tower convertible
Dimensions	432 x 482 x 89 mm (17 x 19 x 3.5 in)
