4
2: START UP
Connect Equipment to the UPS

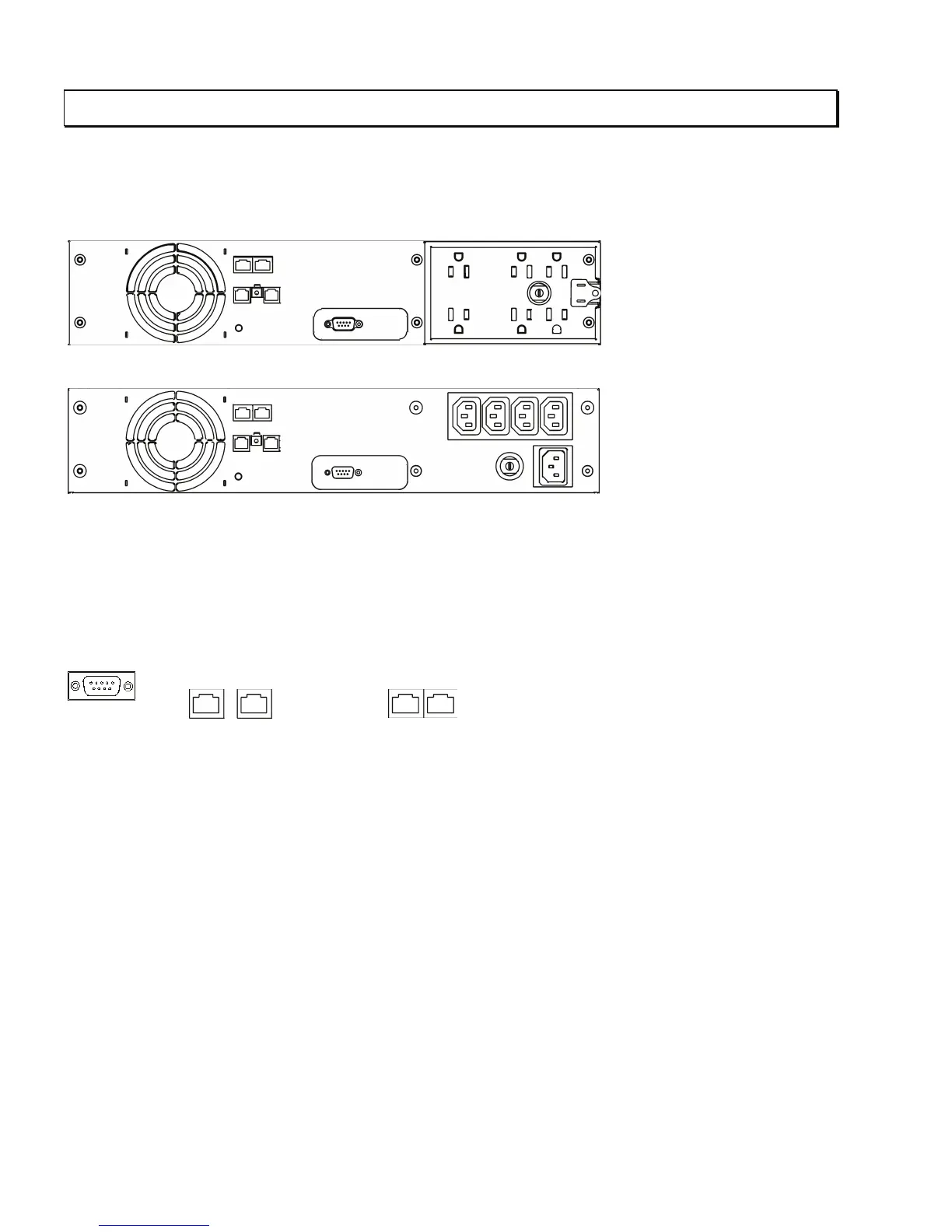

Rear Panels
110/120 V:
230 V:
• Note: A laser printer draws significantly more power than other types of equipment and may
overload the UPS.
Connect the UPS to the Network (if Applicable)
Network Connectors
Serial Port
Modem/Telephone/Fax
Ports
Network Surge
Suppression Ports
Use only interface kits approved by APC.
Use only the supplied cable to connect to the Serial Port. A standard serial interface cable is incom-
patible with the UPS.
The UPS features modem/telephone/fax surge suppression ports. Connect a single mo-
dem/telephone/fax line into the RJ-11 modem/telephone/fax surge protection IN jack on the back of
the UPS. Use telephone cabling (not supplied) to connect the OUT jack to a modem/telephone/fax
port.
The UPS also features network surge suppression. Connect a single line 10 Base-T/ 100 Base-Tx
network cable into the RJ-45 network surge protection IN jack on the back of the UPS. Use network
cabling (not supplied) to connect the OUT jack to a network port.
