APC Symmetra PX Site Preparation Guide

2 Symmetra PX 10-40 kW 208 V Site Preparation Guide - 990-4060B

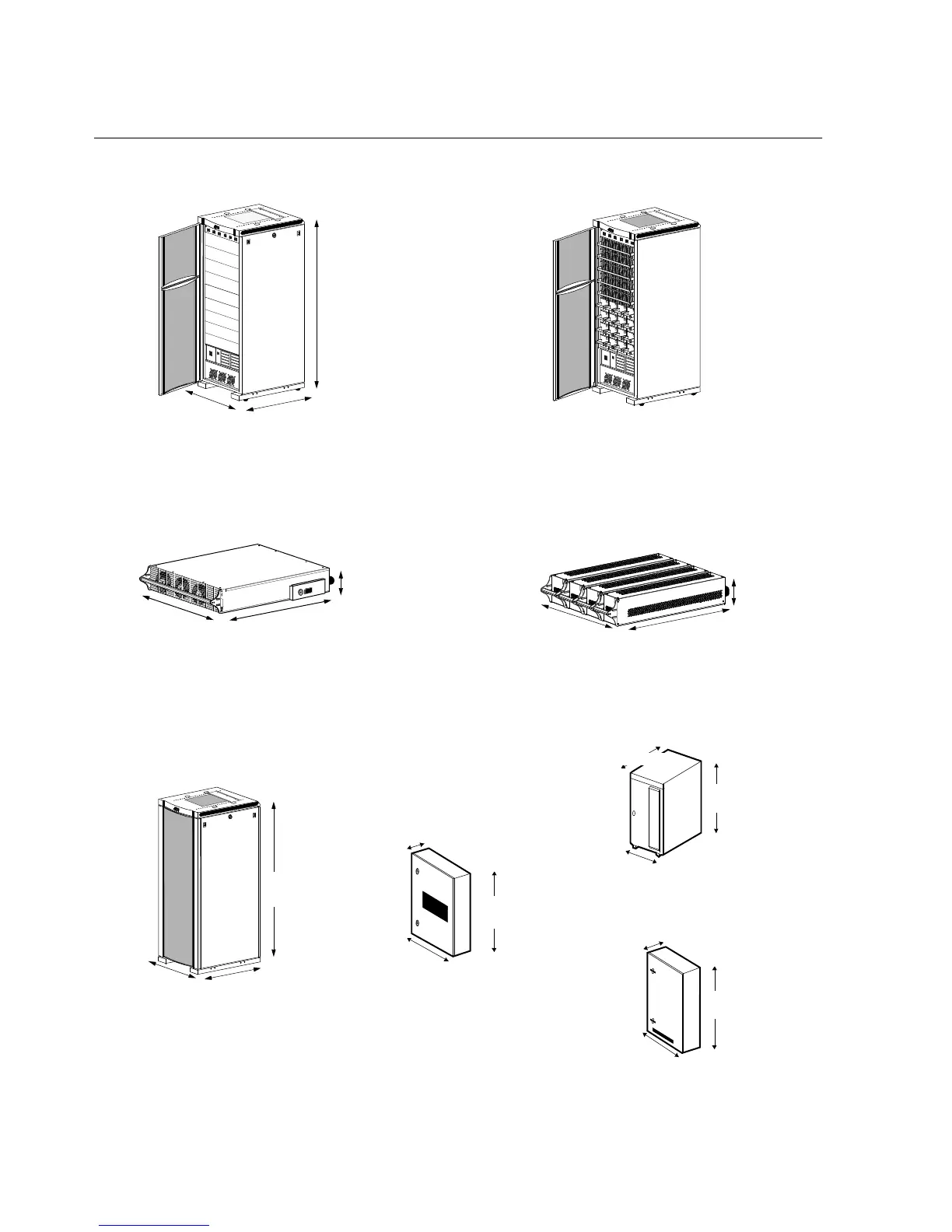

Overview of System Components
Optional equipment
UPS (Empty)
600 lb (275 kg)
82”
(2080 mm)
36” (915 mm)
24” (600 mm)
Power Module
60 lb (26 kg)
Battery Module
4 x 50 lb (4 x 23kg)
UPS (Fully Loaded)
1700 lb (775 kg)
19” (483 mm)
27.5” (700 mm)
5.2” (132 mm)
19” (483 mm)
6.3”
(160 mm)
27.5” (700 mm)
XR Battery Enclosure
Empty: 550 lb (250 kg)
Full: 2150 lb (990 kg)
Maintenance Bypass Panel
10” (255 mm)
38”
(960 mm)
30”
(750 mm)
Isolation Transformer
82”
(2070 mm)
24”
(600 mm)
36” (915 mm)
Battery Breaker Box
5” (125 mm)
32” (800 mm)
24”
(600 mm)
55” (1400 mm)
20” (500 mm)
16”
(400 mm)

APC Symmetra PX Specifications

General

Noise level	61 dB
Output power	32000 W
Output power capacity	32 kVA
Emergency Power Off (EPO)	Yes
Battery type	VRLA
Dimensions (WxDxH)	1200 x 1070 x 1991 mm
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3.5 h
Certification	EN 50091-1, EN/IEC 62040-3, EN/IEC 62040-1-1, FCC Part 15 Class A, VFI-SS-111
Product color	Black
Operating altitude	0 - 999.9 m
Non-operating altitude	0 - 15000 m
Storage temperature (T-T)	-15 - 40 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	1095400 g
Package weight	1189000 g
