Apogee Duet 3 Users Guide

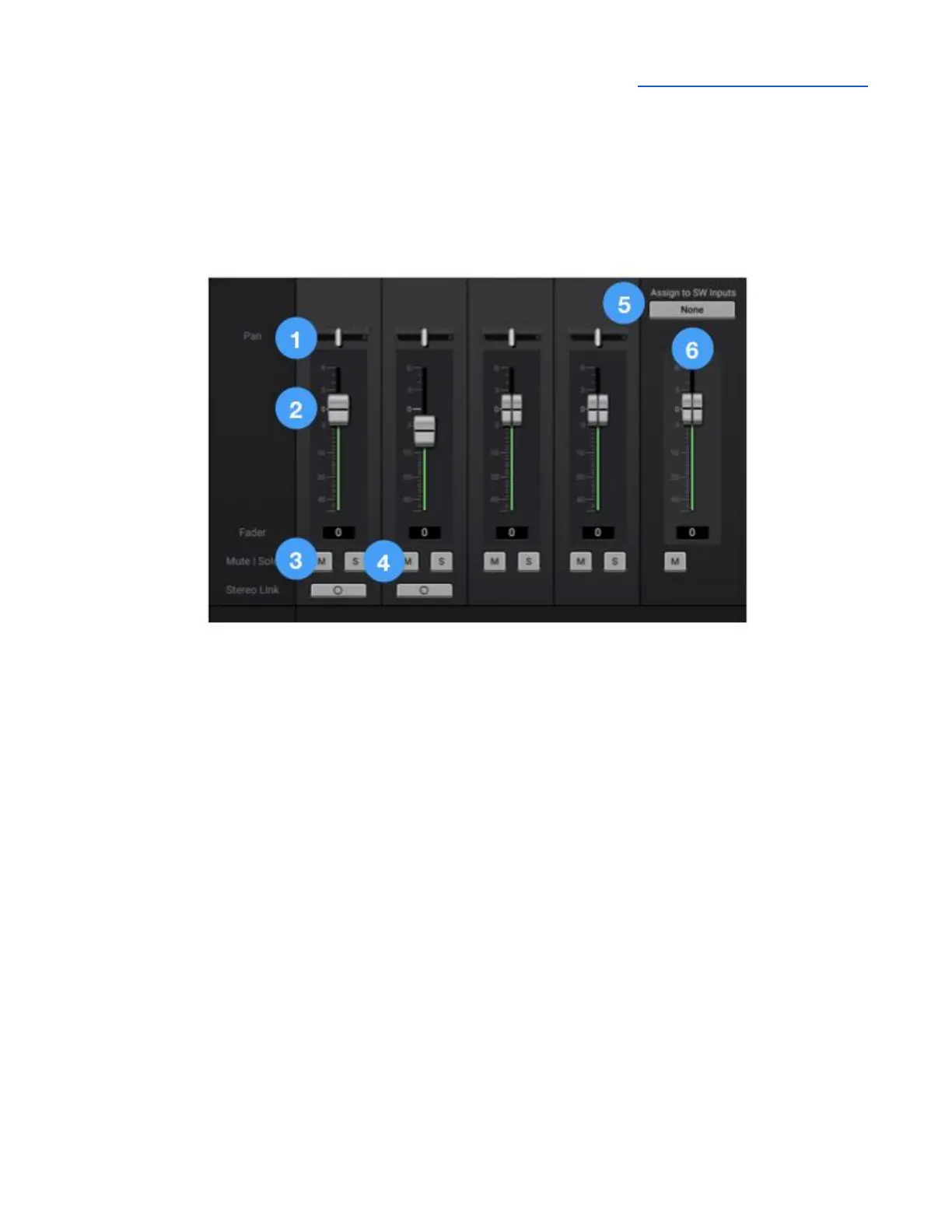

Mixer Section
The mixer section provides a mixer for blending Analog and Playback inputs.
Route mixer outputs to Main and headphone outputs for low latency direct monitoring while
recording;
Route mixer outputs directly to audio software inputs.
1. Channel Pan Control - Set the left-right placement of the channel signal in the mixer stereo
output.
Option-click to reset the pan to center (0)
Option+Command-click to set all pans in that mixer to center (0).
2. Channel Fader - Set the level of the channel signal in the mixer stereo output.
Option-click to reset the fader to 0dB.
3. Channel Mute button - Mute the signal to the mixer stereo output.
Command-click to mute all channels
4. Channel Solo button - Solo the channel - all other channels are muted (unless their Solo button is
engaged).
Command-click to solo all channels.
Control-click the Solo button to engage Solo-Safe mode, where the channel remains unmuted
regardless of the Solo status of other channels.
5. Assign to SW Inputs
Assign the output of the Mixer to software inputs. Signal from the Mixer Master output is
routed to DAW inputs, replacing the signal from Analog In 1-2.
6. Mix Master Output Fader - Set the output level of the Mixer.
20

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Apogee duet3 and is the answer not in the manual?

Apogee duet3 Specifications

General IconGeneral
TypeAudio Interface
A/D Resolution24-bit/192kHz
Number of Preamps2
Phantom PowerYes
USBUSB-C
Output ConnectorsTRS
CompatibilitymacOS
SoftwareApogee Control
Inputs2 x XLR/TRS combo, 2 x TRS
PowerBus-powered
Input ConnectorsXLR, TRS
