Apogee Duet 3 User’s Guide
Monitor/Output Section
In the Monitor/Output Section, select the signals to be routed to the Main and Headphone outputs,
then control their volume. Output Level Meters display the presence of signal at the outputs, useful as
a diagnostic tool.

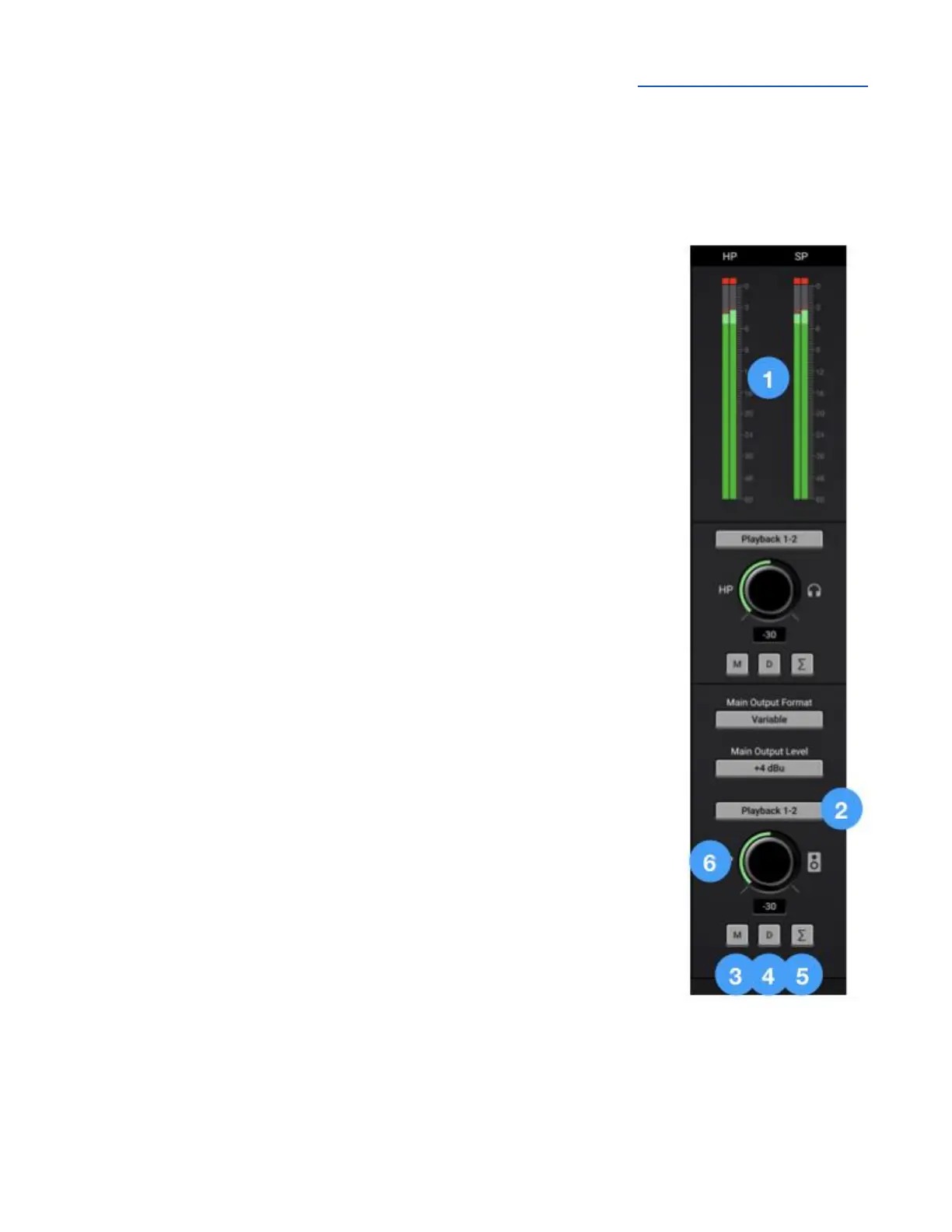

1. Output Level Meters - Displays the level of the Main or HP outputs’
digital source.
The following settings are available for the Main and HP outputs:
2. Source - choose the signal source for the output (Main or HP).
● SW Playback - route the selected stereo Playback signal from
audio software to the HP output.
● Direct Mixers - route the stereo signal from the selected mixer to
the HP output.
● HW:Inputs - route the selected mono or stereo signal from the
selected hardware input(s) to the HP output.
3. Mute - mute the output
4. Dim - dim (reduce) the output by 15 dB;
5. Sum to Mono - Collapse left and right signals to mono at the output.
This combined signal is sent through both Left and Right Outputs and
is useful for verifying the mono-compatibility of a stereo mix.
6. Output Level Control - Set the listening level of the output.
