Apogee Duet 3 User’s Guide

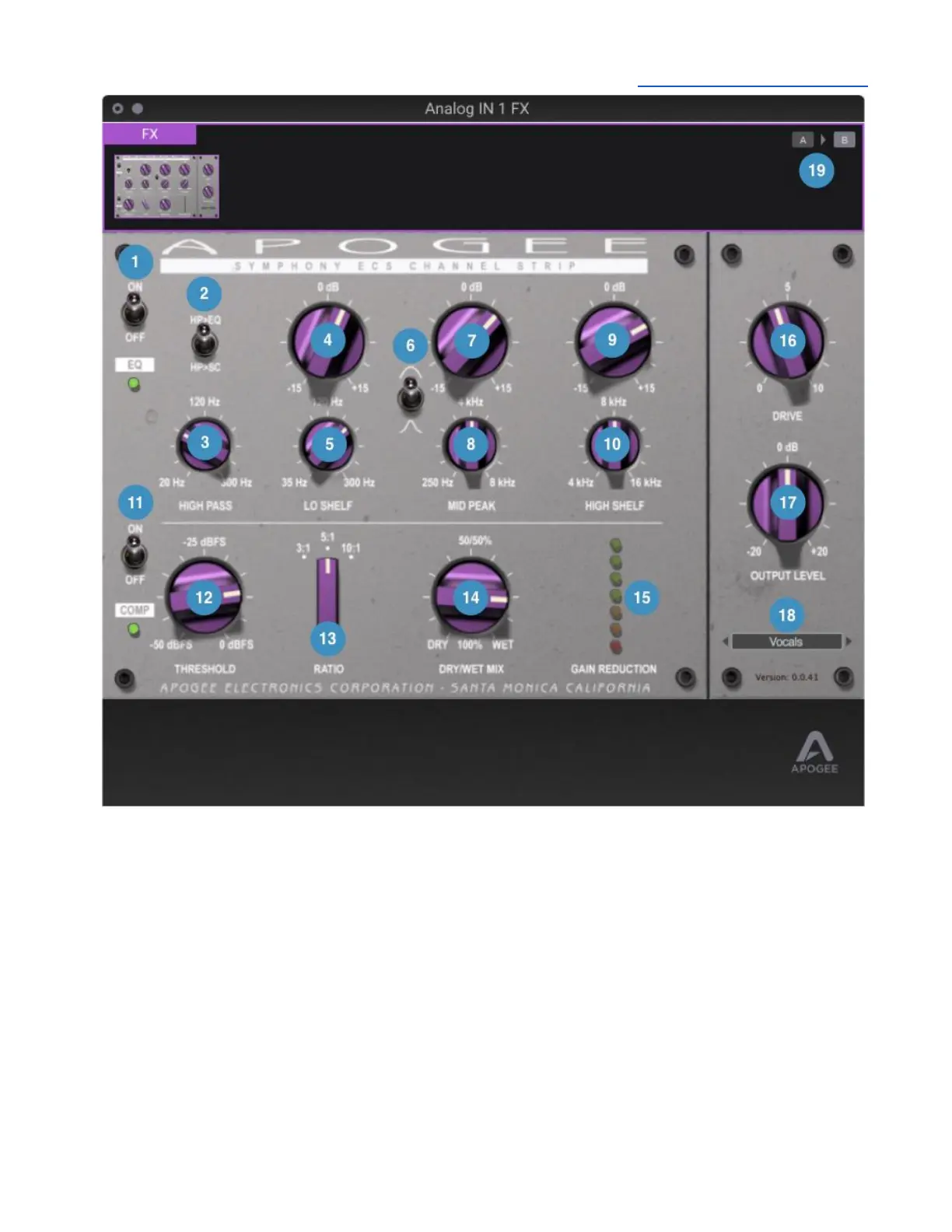

1. EQ Section In/Out - Toggle the EQ section on or off
2. High Pass to EQ or Side Chain - toggle the high pass filter between two possible signal paths.
● HP > EQ - The high pass filter is inserted into the EQ signal chain, processing audio
throughput.
● HP > SC - The high pass filter is inserted into the compressor side chain, making the
compressor less sensitive to low frequencies.
3. High Pass Frequency - Set the frequency of high pass filter. The slope is fixed at 18 dB per
octave.
4. Lo Shelf Gain - Set the gain of the Lo Shelf band in in the range of -15 dB to +15 dB.
5. Lo Shelf Frequency - Set the frequency of the Lo Shelf band.
6. Mid Peak Q - Switch the Q (or bandwidth) of the Mid Peak band to Wide (up) or Narrow (down).
7. Mid Peak Gain - Set the gain of the Mid Peak band in the range of -15 dB to +15 dB.
8. Mid Peak Frequency - Set the frequency of the Mid Peak band.
27

Apogee duet3 Specifications

General

Type	Audio Interface
A/D Resolution	24-bit/192kHz
Number of Preamps	2
Phantom Power	Yes
USB	USB-C
Output Connectors	TRS
Compatibility	macOS
Software	Apogee Control
Inputs	2 x XLR/TRS combo, 2 x TRS
Power	Bus-powered
Input Connectors	XLR, TRS
