On the power cord outlet side of the machine, there is a fuse holder between the motor and the power cord
outlet. This is the fuse required for CSA standards to protect the motor. It is a 3.15amp 250 volt SLOW BLOW
5mm x 20mm fuse (not the fast- acting type) (or 4 amp if the 3.15 is not available), and can be purchased
directly from APQS or a well-stocked electicronics store.
Using a flat blade screwdriver, push in slightly and turn the inside cap ¼ turn to the left – this will allow the
fuse holder to come out of the machine. Replace the bad fuse with a new one and reinstall the fuse holder
into the machine. Follow the instructions in reverse order to replace covers.

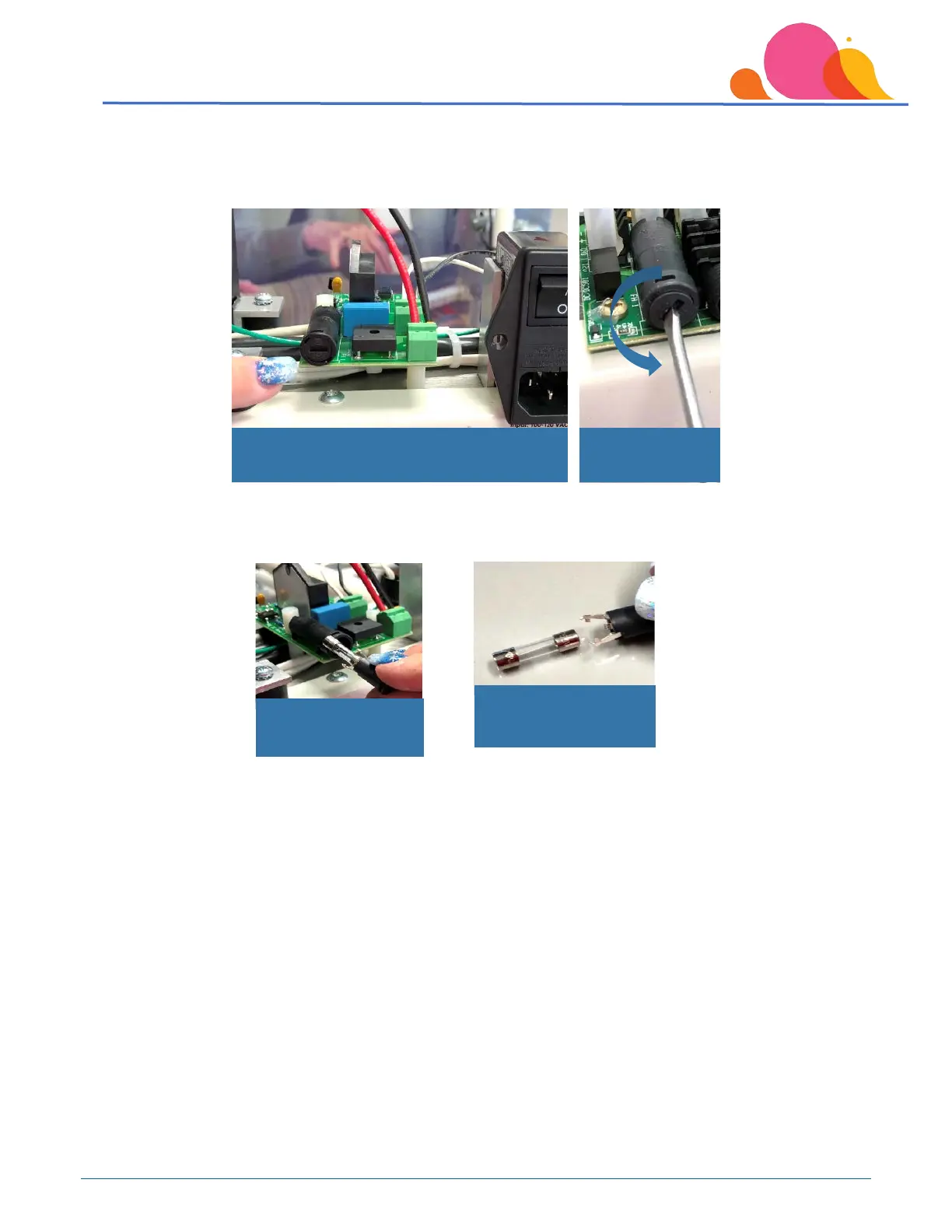

CSA Motor fuse located on transformer
board
Turn ¼ to left to
remove holder
Remove fuse holder
from machine
Fuse holder with fuse
removed
