YC500A/I Installation/User Manual
12
YC500A Installation Procedures
A
B
Figure 12
Microinverter
serial numbers
A
B
A
B
A
B
101123458044
101123458045
101123458054
……
Figure 13
1 2
3
4 5 6 7
8
9 10 11 12 13 14 15 1716 18 19 20 2221
APsystems Microinverter&Energy Communication Unit
Warranty Card

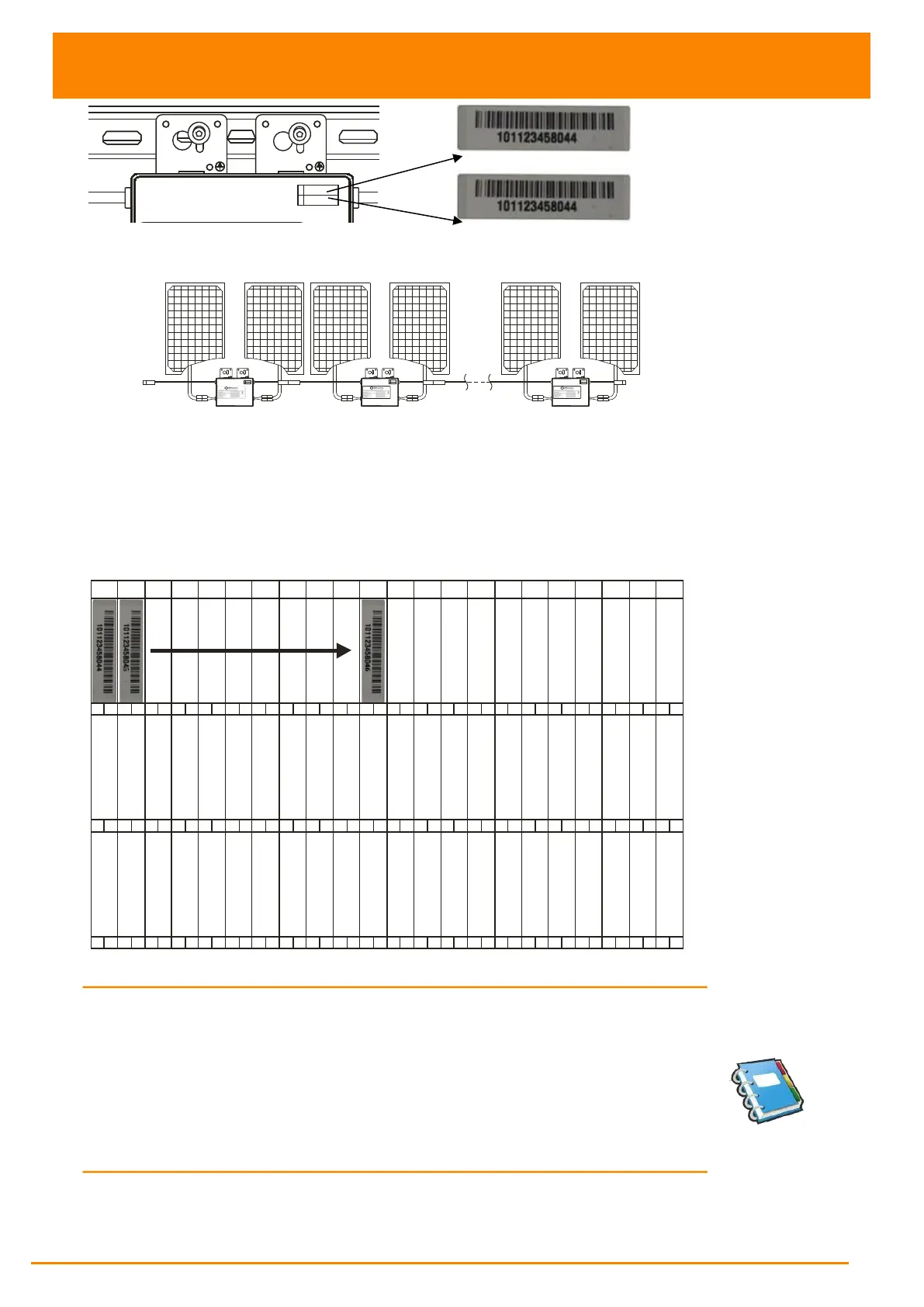

The APsystems Installation Map is a diagram of the physical location of each microinverter in your PV installation.
Each APsystems microinverter has a removable serial number label located on the mounting plate. Pee l the label
and affix it to the respective location on the APsystems installation map.
Installation Map Template
To register your APsystems microinverter, please mail this warranty registration card to: emasupport@altenergy-power com.
B A
B A
B A
Figure 15
NOTE: 1. The layout of the inverters' serial numbers on the warranty card
is only suitable for general arrangement.
2. Step 1~6 can change sequence for convenience of installation.
3. Warranty card is located in Appendix last page of this manual.
4. You can use Scanning Gun or mobile phone to scan the
serial numbers on the map when set ECU (see ECU manual).
5. Using apsystems' mobile app ArrayApp can make the
installation and registion much more simple.
