YC500A/I Installation/User Manual
YC500A Installation Procedures
Step 4 - Connecting APsystems Microinverters to the PV Module

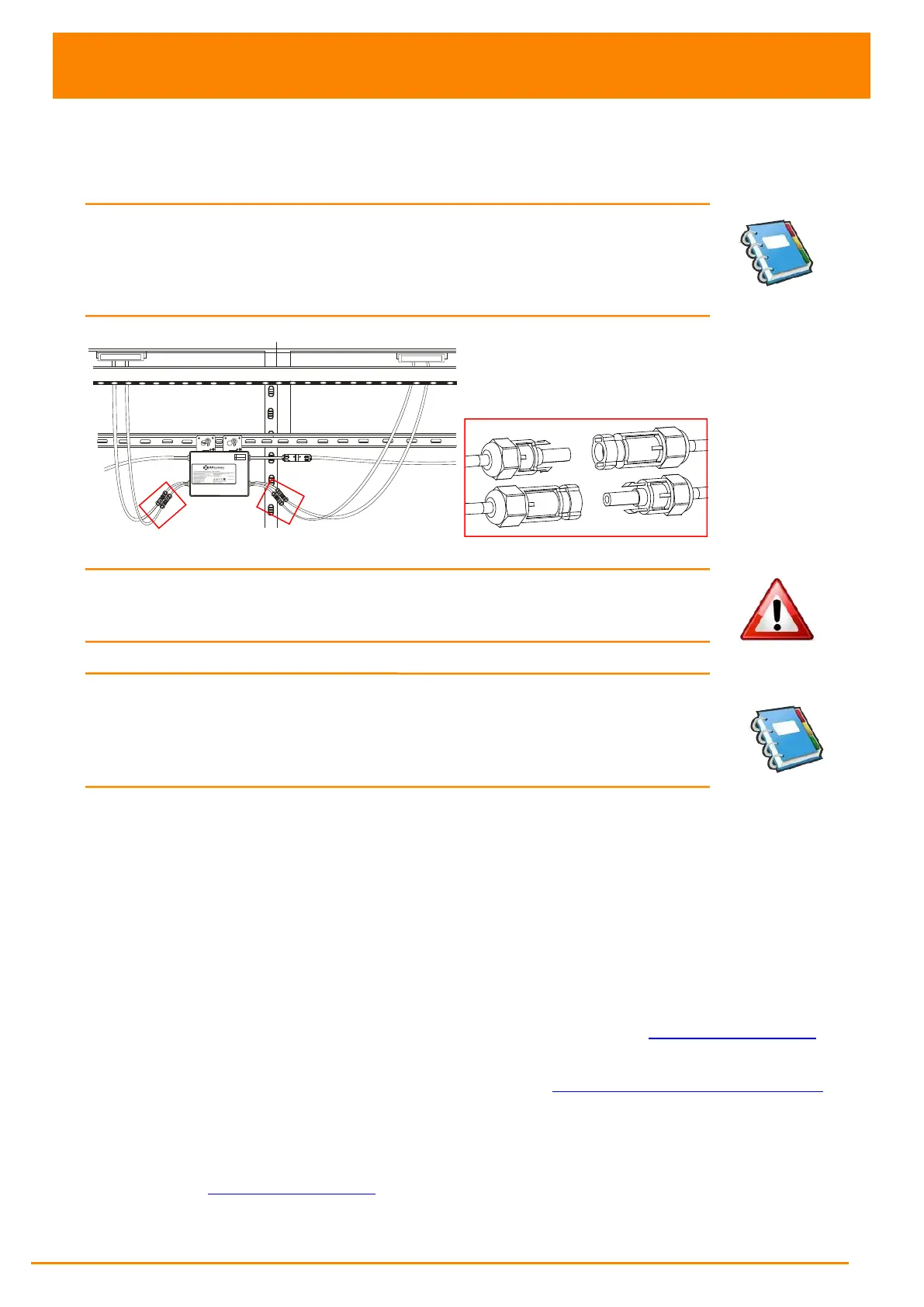

Connect the DC cables from the PV Modules to the Microinverter per the diagram below:
NOTE: When plugging in the DC cables, the Microinverter should immediately
blink green three times. This will happen as soon as the cables are plugged in
and will show that the Microinverter is functioning correctly. This entire check
function will start and end within 5 seconds of plugging in the unit, so pay careful
attention to these lights when connecting the DC cables.
Figre 11
WARNING: Insure that all AC and DC wiring is correct. Check that none of the
AC and DC wires are pinched or damaged. Be sure that all junction box are
properly closed.
NOTE: About A and B Sides corresponding the location of modules, EMA
registration show acquiesce in this installation. if there are different connection
methods, please email the detail installation drawings to us to register, or the
A, B Sides corresponding component location will not correspond to the EMA
position.
Step 5 - Completing the APsystems Installation Map
Fill in the APsystems Registration Cards, which provide system information and the
installation map. Feel free to provide your own layout if a larger or more intricate installation
map is required. The layout map provided is designed to accomodate labels in vertical or
horizontal orientation to meet all the field PV connections.
a. Each APsystems Microinverter has removable serial number labels.Peel labels off, affix
one to the respective location on the APsystems installation map, and fill in A,B in the
label below(as figure13) according to the layout on the roof(as figure 12). Then affix
another label to the PV module frame which is easy to see. The warranty cards can
obtain from the appendix of this manual or APsystems website www.APsystems.com
b. Fill the warranty cards and email to APsystems at emasupport@altenergy-power.com
c. APsystems will create the EMA account and email you the account information. Then
you can use the EMA website to view detailed performance of your PV system. You can
learn more information on energy monitoring and analysis system from APsystems
websitewww.APsystems.com
