7. Available vehicle charging inlets and vehicle connectors
Depending on the country-specific equipment, different vehicle charging inlets and vehicle connectors
are provided.
Use only the charging equipment approved for your country.
Vehicle
charging inlet
Vehicle
connector

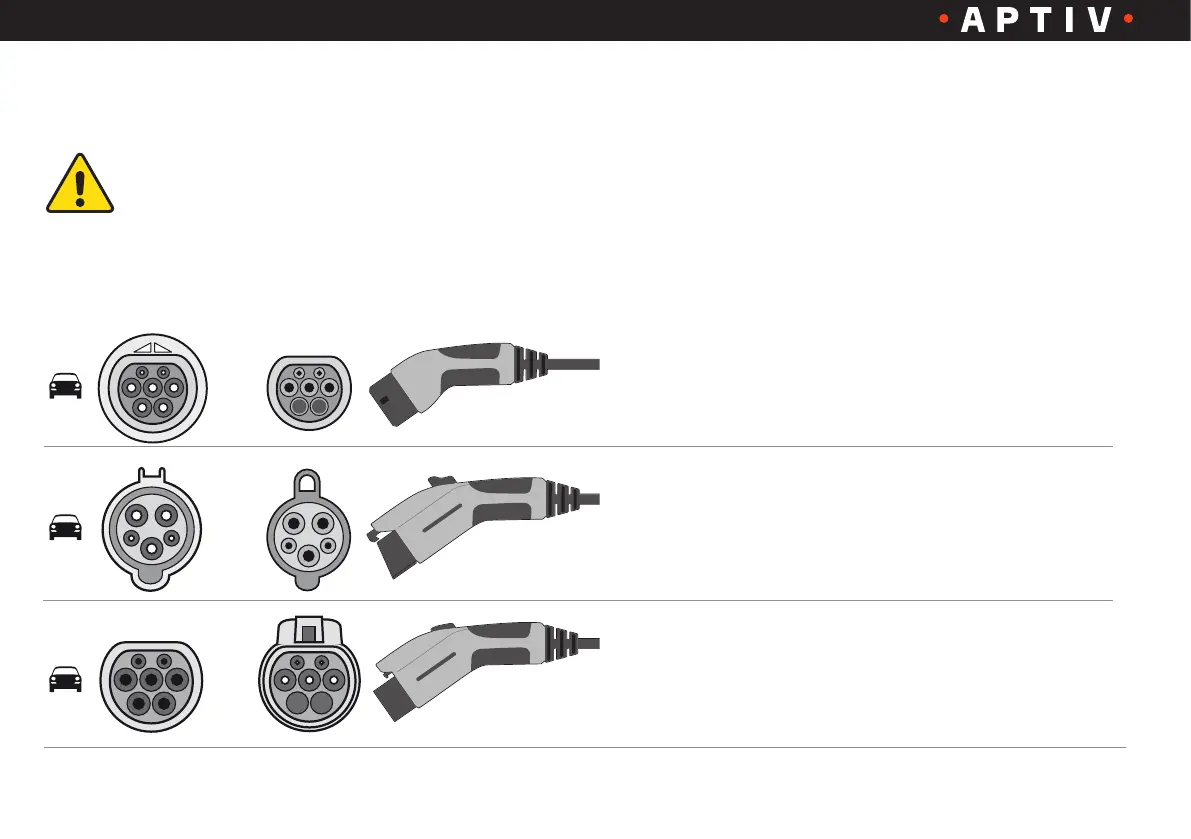

Available
charging inlets
Type
IEC 62196-2
Type 2
IEC 62196-2/SAE-J1772-2009
Type 1
GB/T 20234.2
Type GB/T
• Two 1.5 mm contact sleeves for
control contact
• Two 3.6 mm contact sleeves for
line
• A 2.8 mm contact sleeve for
grounding contact
• Two 3 mm contact pins for control
contact
• Two 6 mm contact pins for line
• A 6 mm contact sleeve for
grounding contact
• Two 3 mm contact sleeves for
control contact
• Two 6 mm contact sleeves for line
• A 6 mm contact sleeve for
grounding contact
