13

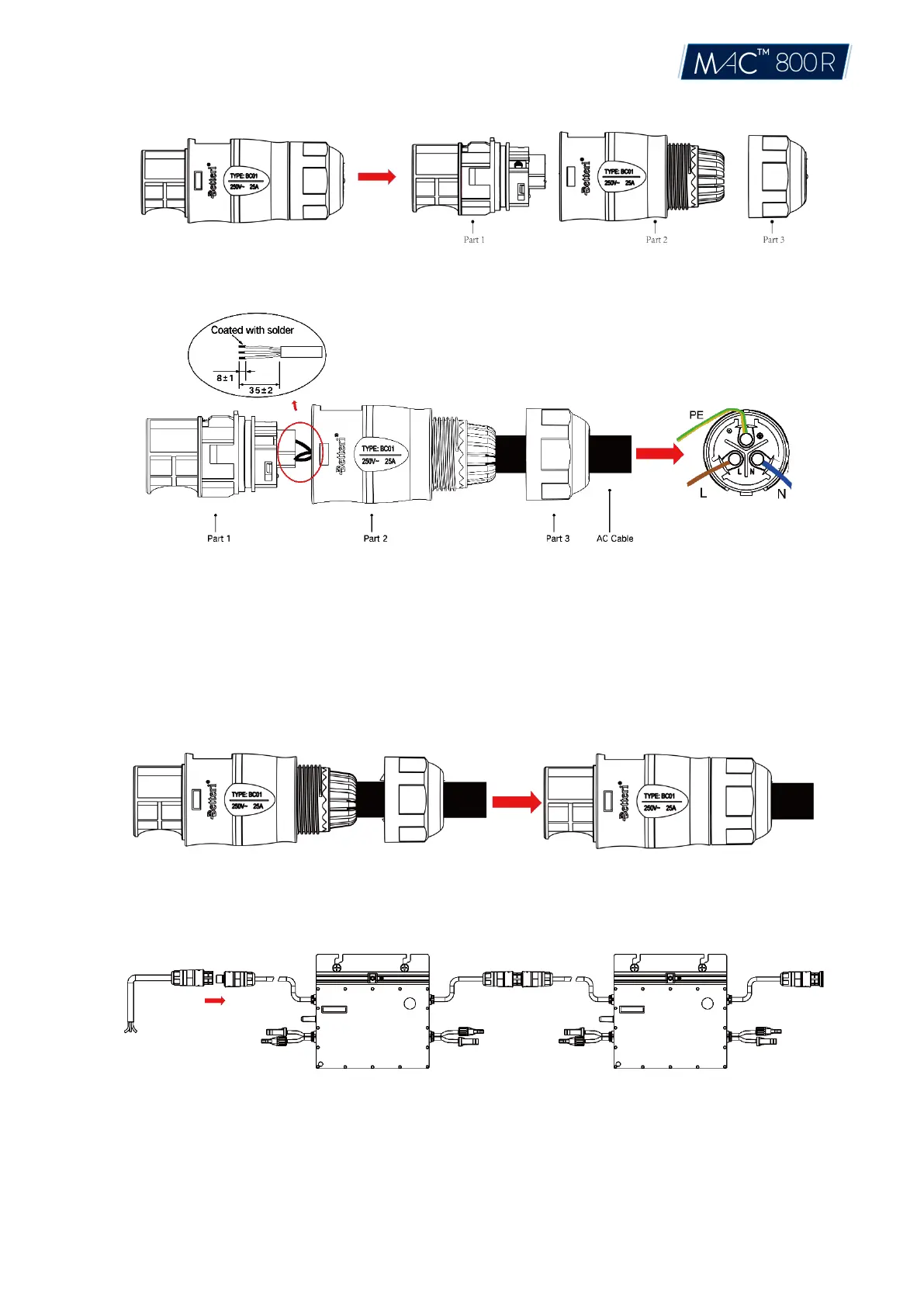

2. Insert the AC cable from Part 3 to Part 2 and complete with wiring for the L, N, and Ground
inside Part 1 AC port accordingly:
G: Yellow/Green wire *Note: L: Brown wire N: Blue wire
Please use 12 AWG cable as AC end cable.
3. Plug the AC port Part 2 into Part 1 once complete with the wiring. Next screw the Part 3
on and complete the AC extension cable:
B) Connect the AC end cable to the AC male connector from the first Microinverter to complete the
circuit.
C) Connect the other side of the AC end cable to the distribution box and wire it to the local grid
network.
© 2021 Aptos Solar Technology, LLC. All rights reserved.
