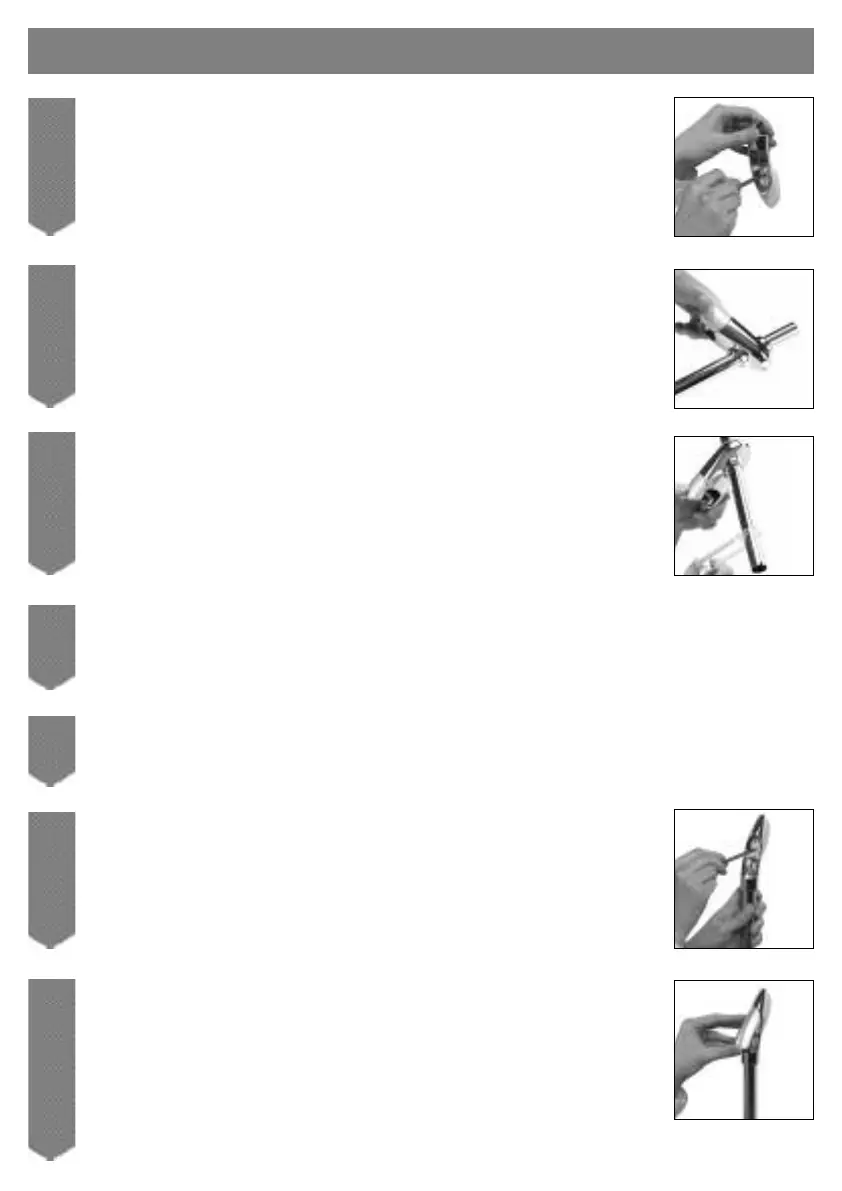

Midas 200 adjustable height head installation
1
Drill and plug two holes 540mm-555mm vertically apart using a spirit level if necessary.
Fit the rail end clip into position and loosely fit the lower bracket into position.
2
Pass the rail through the handset holder whilst keeping the slider levers depressed with the
handset holder pointing in a downward direction.
3
Carefully slide the gel hook/hose restraint onto the rail under the handset holder.
4
Current water supply regulations state the handset should not be allowed to pass a point 25mm above the spill over level
of the bath or shower tray. If this cannot be achieved, the gel hook/hose restraint must be fitted. This is fitted to the rail
under the handset holder.
5
Fit the rail into the rail end bodies taking care to engage the location slot onto the lugs.
6
Fit the rail end clip fitting into position into the top rail end body. Secure the rail assembly to wall
using the screws provided ensuring the rail end bodies remain firmly engaged.
7
Place the rail end covers into position and push firmly into place.
